Mantel Installation
For use with a new or existing
mantel. Depending on the avail-
able space within the mantel cav-
ity, the unit can be secured to the
mantel at the bottom side or back.
Remove the screw on the bottom
ange in the most appropriate
place for securing and using the
provided L-bracket and the screw
that was removed attach the re-
box to the mantel. (Figure 3)
!
NOTE: There are no guide
holes provided for the L-Brackets
in the mantel.
If not installing the unit into a
Dimplex mantel the required
opening dimensions for the
replace are: 24.0 in. (610 mm)
wide x 18 ⅜ in. (467 mm) high x
7 ½ in. (191 mm) deep (Figure 4).
The rebox is to be installed
from the front of the mantel and
inserted so that the anges are
ush against the front surface of
the mantel.
Fireplace Installation

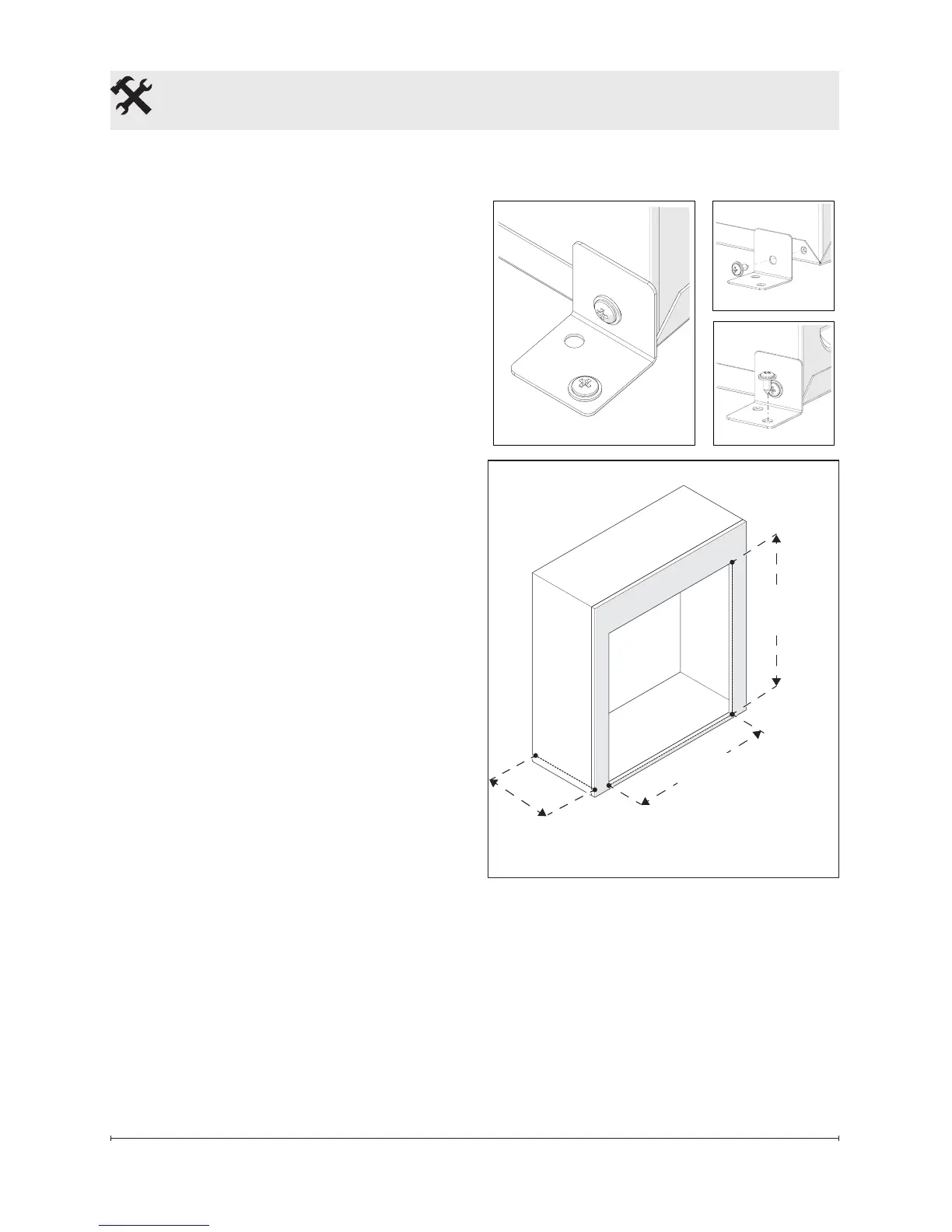

Figure 3
Figure 4
24.0 in.
(610 mm)
18 ⅜ in.
(467 mm)
7 ½ in.
(191 mm)
