Upper Bulbs
Lower
Bulbs
LED
Wire
Harness
Front Glass Assembly
Log Set

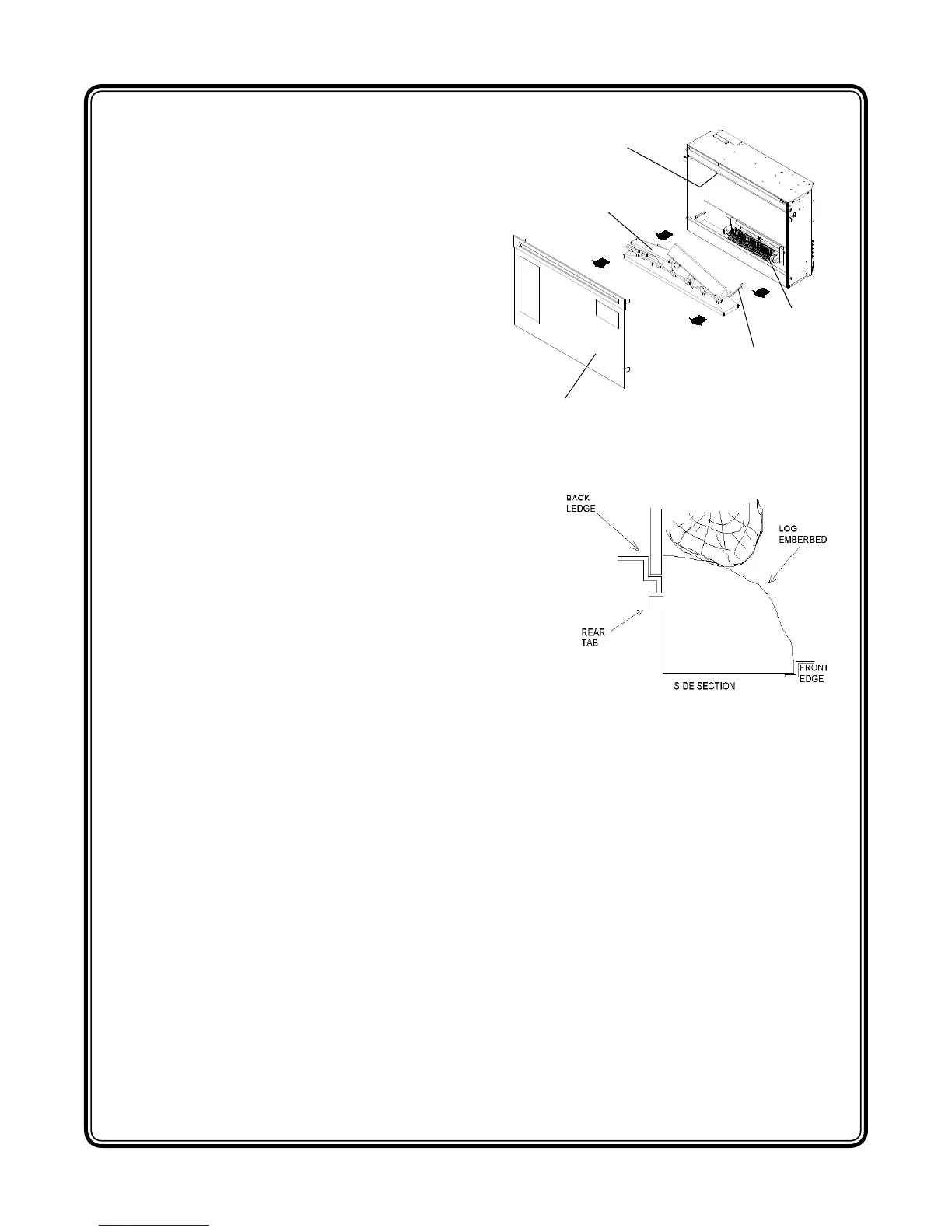

FIGURE 9
TO ACCESS THE LOWER LIGHT BULB AREA:
(FIGURE 9)
1. Remove front glass assembly.
2. Pull the front edge of the plastic ember
bed or plastic grate up and forward until
the rear tab releases from the ledge located at
the bottom of the mirror.
IMPORTANT
Only handle the logset by the emberbed.
NOTE
Logset fi ts tightly into fi rebox, some force may be
necessary to remove.
3. Set logset in front of fi replace.
4. Disconnect the logset LED wire harness from unit.
5. Unscrew bulbs counter clockwise.
6. Insert new bulbs.
7. Reconnect the logset LED wire harness.
8. Replace the logset by inserting the front edge of the fi replace
and push down on the rear edge of the emberbed until
it snaps into place. (FIGURE 10)
NOTE
Ensure the logset is installed tightly under the back ledge
to prevent light leakage.
9. Replace glass assembly.
UPPER LIGHT BULB REQUIREMENTS
Quantity of 2 clear chandelier or candelabra bulbs with an
E-12 (small) socket base, 15 watt rating.
DO NOT EXCEED 15 WATTS PER BULB
TO ACCESS THE UPPER LIGHT BULB AREA:
(FIGURE 9)
1. Remove front glass assembly.
2. Remove upper light cover.
3. Upper bulbs located in the upper left and upper right corners of fi replace.
4. Unscrew bulbs counter clockwise.
5. Insert new bulbs.
6. Re-install upper light bracket.
7. Replace glass assembly.
GLASS CLEANING
The glass is cleaned in the factory during the assembly operation. During shipment, installation, handling,
etc., the glass may collect dust particles; these can be removed by dusting lightly with a clean dry cloth.
To remove fi ngerprints or other marks, the glass can be cleaned with a damp cloth. To prevent
scratching, do not use abrasive cleaners or spray liquids on the glass surface.
FIREPLACE SURFACE CLEANING
Use a cloth dampened with warm water only to clean painted surfaces of the electric fi replace. Do not
use abrasive cleaners.
FIGURE 10
9
