DFB6016
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE LED/SWITCH HARNESS
1. Remove the trim by turning the retaining fasteners counter clockwise ¼ turn until the
trim releases from the firebox using a slotted screwdriver.
2. Remove the firebox from mantel.
3. Lower the grill covering the controls.
4. Remove the (10) retaining screws on the top cover and remove the top being careful
not to damage any of the wiring.

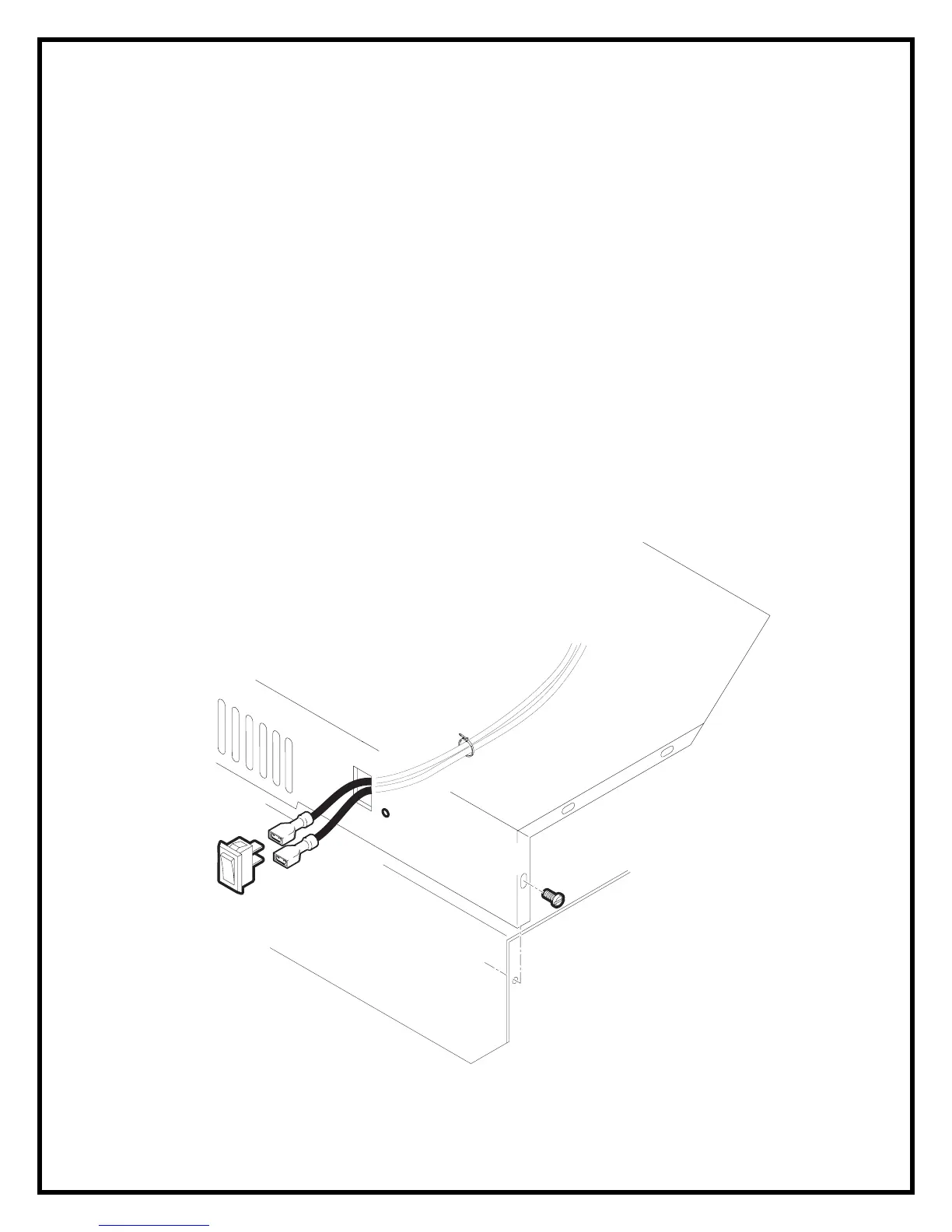

5. Locate the main on/off switch mounted on the top panel and disconnect the wiring
clips and connections noting their original locations.
6. Depress the retainer clips on the rear of the switch and push the switch out of the
rear of the cover.
