DFB6016
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

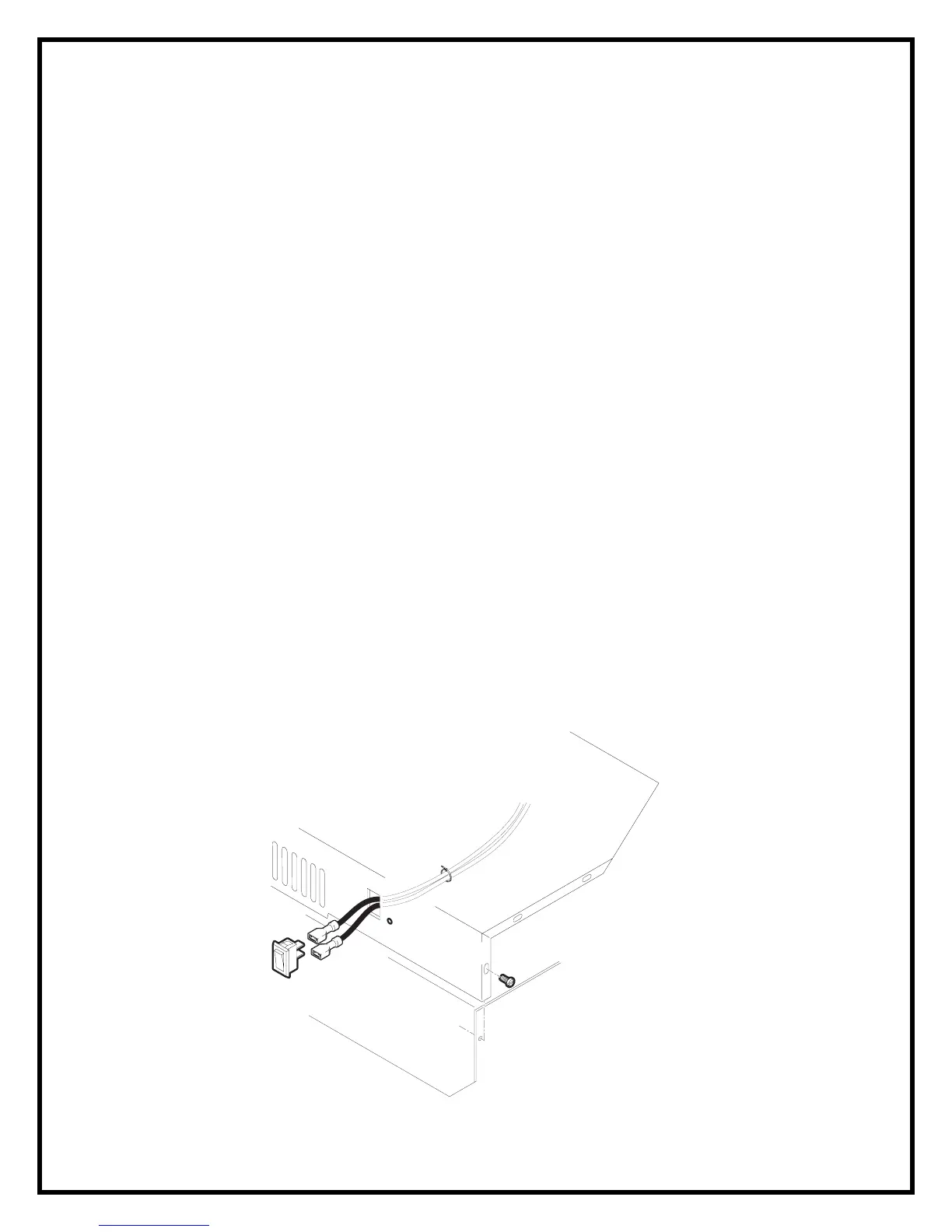

TO REPLACE HEATER ON/OFF SWITCH
1. Remove the trim by turning the retaining fasteners counter clockwise ¼ turn until the
trim releases from the firebox using a slotted screwdriver.
2. Remove the firebox from the mantel.
3. Lower the grill covering the controls.
4. Remove the (10) retaining screws on the top panel and remove the top being careful
not to damage any of the wiring.
5. Locate the heater on/off switch mounted to the top panel and disconnect the wiring
clips and connections noting their original locations.
6. Depress the retainer clips on the rear of the switch and push the switch out of the
rear cover.
7. Properly orientate the new switch and connect all of the wiring clips and
connections.
8. Reassemble in the reverse order as above
