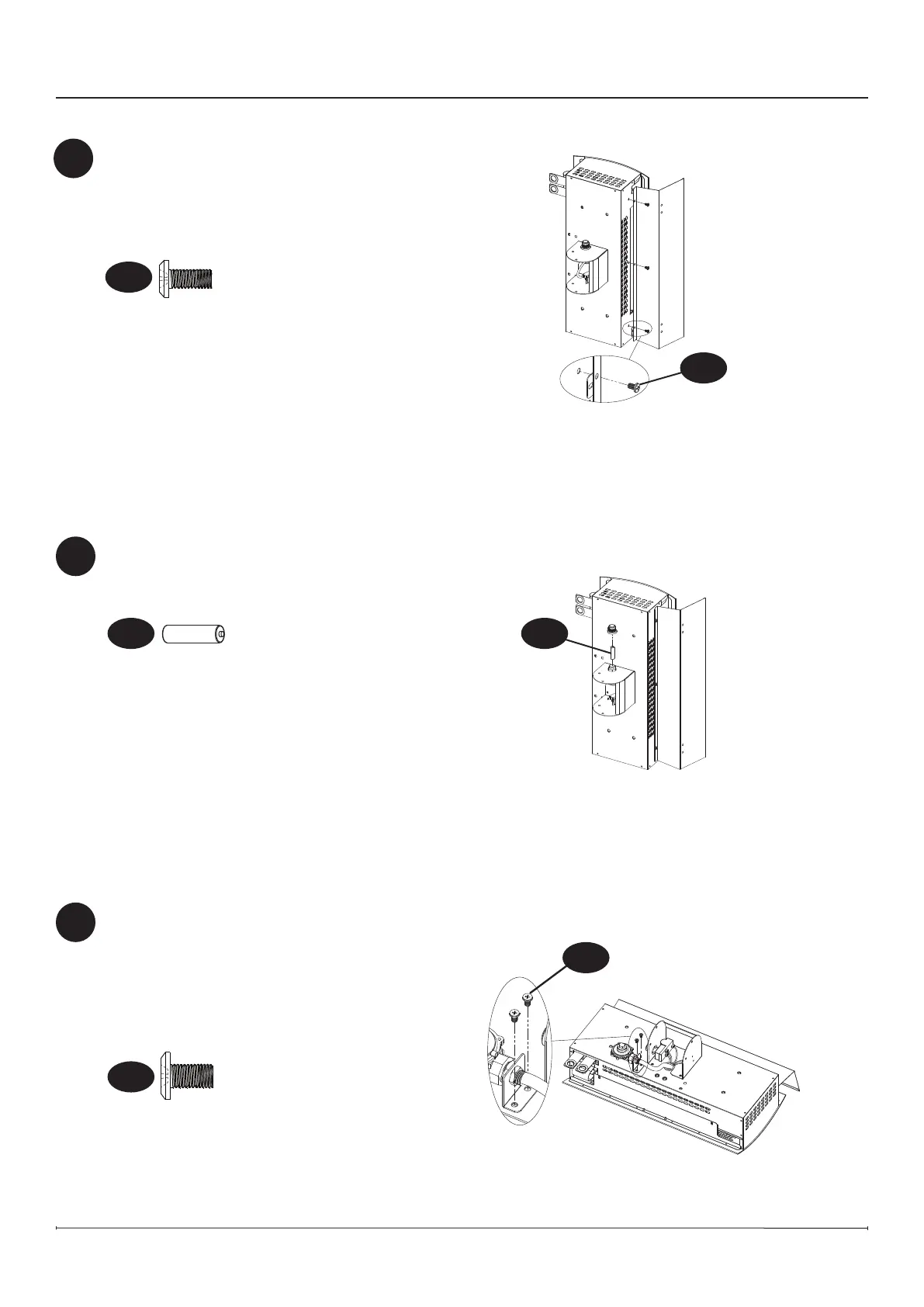

Secure the regulator hose
1. Secure the regulator hose to the heater using
2 × hardware A.
!
NOTE: The regulator with hose can be
secured on either the left or the right side of
the back panel.
Installation
B
×3
CC
Figure5
11
22
Install the heat deflector
1. Install the heat deector to the head
assembly using 3 × hardware B.
2. Tighten all the screws.
Install the battery
1. Insert the battery in the battery compartment.
Figure3
Figure4
×2
A
B
A
×2
×3
If installing optional heat shield DGRSHIELD
(sold separately):
3. Secure the DGRSHIELD to the included heat
deector using the 4 bolts provided in the
accessory kit.
