Install the wall-mounting bracket
!
NOTE: If installing to the ceiling using
DGRPOLE (sold separately), skip this step.
1. Secure the mounting bracket to the wall
using 6 fasteners (not included). Ensure
suitable mounting hardware for the wall
material is used.
Installation
G
D
E
F

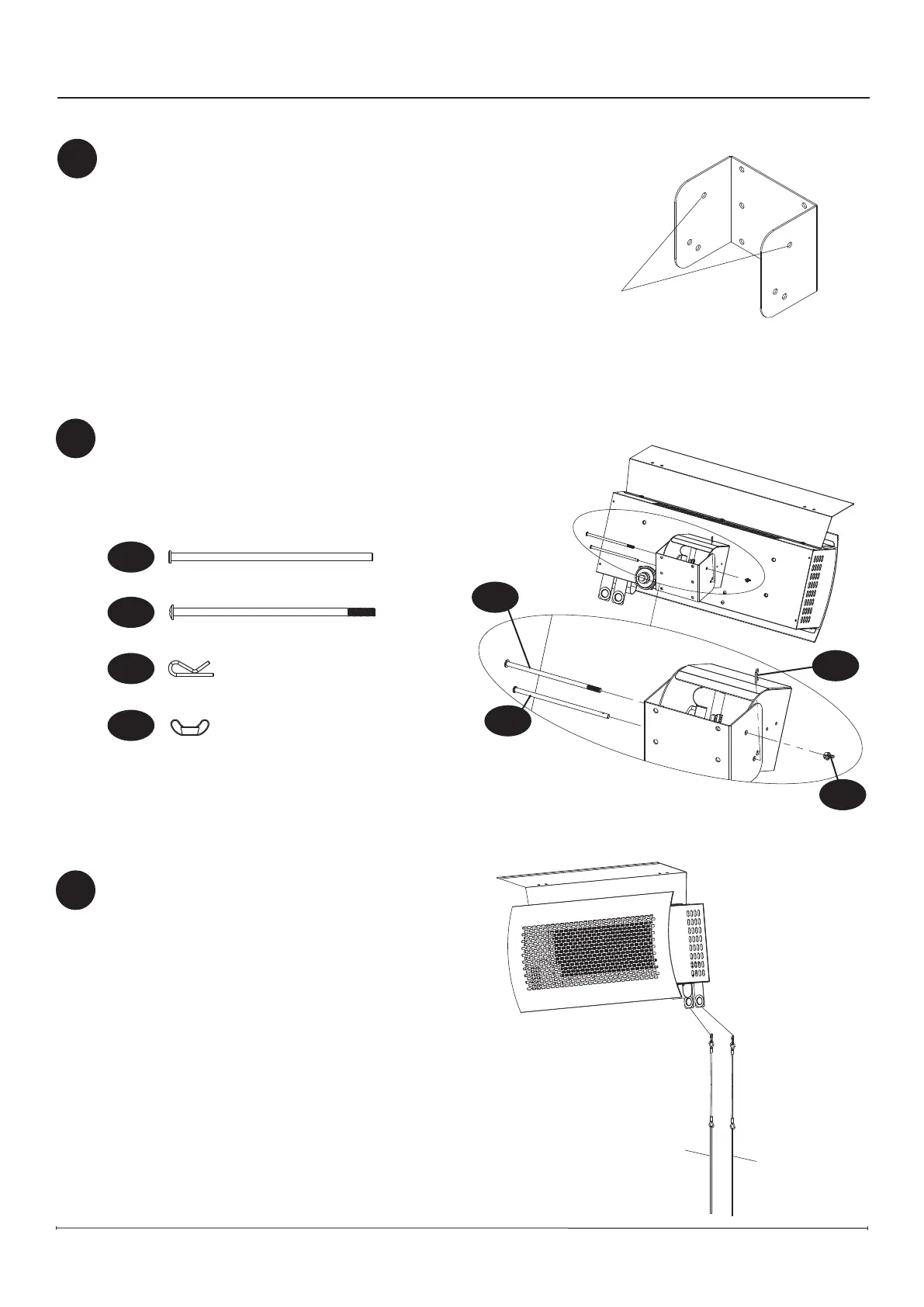

Figure6
Figure7
This side up
Secure the heater to the
mounting bracket
1. Install the heater to the mounting bracket
using hardware D, E, F, and G as shown.
55
Install Cords
1. Remove the nger protective rings from the
trigger.
2. Install the red cord to "ON" trigger.
3. Install the black cord to "OFF" trigger.
66
Red Cord
Black Cord
Figure8
G
D
E
F
2. If using ceiling-mounting pole DGRPOLE
(sold separately), follow the installation
instructions provided with the DGRPOLE.
