Dimplex DLG1058 - Exploded PARTS DIAGRAM; Replacement Parts List

5

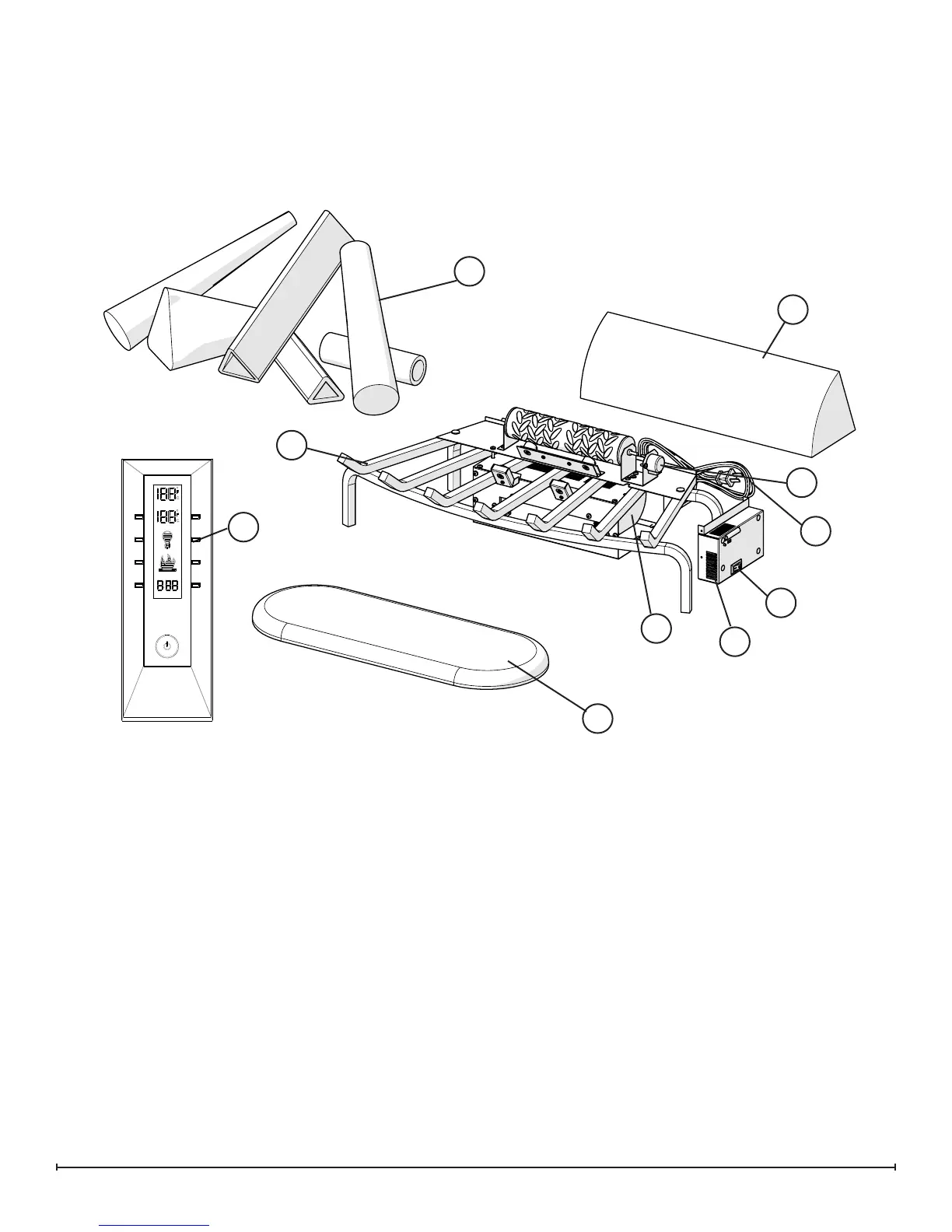

EXPLODED PARTS DIAGRAM
REPLACEMENT PARTS LIST
Flicker Motor1. . . . . . . . . . . . . . . . . . . . . . . . . . .2000450100RP
Heater Assembly (with cutout)2. . . . . . . . . . . . .2203580100RP
On/Off Switch3. . . . . . . . . . . . . . . . . . . . . . . . . .2800070700RP
Power Cord (with Strain Relief)4. . . . . . . . . . . .4100010800RP
Remote Control5. . . . . . . . . . . . . . . . . . . . . . . .3000350100RP
Remote Control Receiver & Housing6. . . . . . . .3000960100RP
Log Set Assembly7. . . . . . . . . . . . . . . . . . . . DLG1058-LOGRP
Back Log (with Flame Screen)8. ............0440740100RP
Wire Harness Set (includes Grate and Up Lights)9. 250066RP
Ember Bed10. . . . . . . . . . . . . . . . . . . . . . . . . . . .0441000100RP
6
1
2
3
4
10
5
7
8
9
