Dimplex DLG1058 Service Manual

8 www.dimplex.com
Carefully remove the heater assembly out of the log 6.
grate leaving the wires still connected.
Trace the heater wires to the remote control receiver.7.
Carefully replace the wire connections of the original 8.
heater assembly with the new heater assembly.
!
NOTE: Use a at head screwdriver to gently pry
between the end of the connector and the remote control
receiver to release the wires.
Mount the new heater back onto the outside cover.9.
Re-assemble the remainder of the log grate in reverse 10.
order from the instructions above.
REMOTE CONTROL RECEIVER
REPLACEMENT
Tools Required: Philips head screwdriver
Flat Head Screwdriver
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for light bulbs and heating
elements to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Disconnect and remove all of the logs from the unit and 1.
put them in a safe place.
Remove the two (2) screws that secure the icker mo-2.
tor onto the bracket. (Figure 3)
There are four (4) screws that secure the bottom as-3.
sembly to the grate. Remove the four (4) screws and
the whole box can be removed and enable you to have
easier access to everything. (Figure 4)
Remove the ve (5) screws around the Remote Control 4.
Receiver Housing. (Figure 6)
Remove the housing being careful not to add any strain 5.
to the wires connecting to the switches.
Transfer the wire connectors from the terminals on the 6.
original board to the same location on the replacement
board.
!
NOTE: Use a at head screwdriver to gently pry
between the end of the connector and the remote control
receiver to release the wires.
Re-assemble the remainder of the log grate in reverse 7.
order from the instructions above.
SWITCH REPLACEMENT
Tools Required: Philips head screwdriver
Flat head screwdriver
Needle-nose pliers
WARNING: If the log grate was operating prior to ser-
vicing, allow at least 10 minutes for light bulbs and heating
elements to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Disconnect and remove all of the logs from the unit and 1.
put them in a safe place.
Remove the two (2) screws that secure the icker mo-2.
tor onto the bracket. (Figure 3)
There are four (4) screws that secure the bottom as-3.
sembly to the grate. Remove the four (4) screws and
the whole box can be removed and enable you to have
easier access to everything. (Figure 4)
Remove the ve (5) screws around the Remote Control 4.
Receiver Housing. (Figure 6)
Remove the housing being careful not to add any strain 5.
to the wires connecting to the switches.
Remove all of the wire connections from the Remote 6.
Control Receiver, to assist in changing out the switch,
noting the location of each. (Figure 7)
!
NOTE: Use a at head screwdriver to gently pry
between the end of the connector and the switch to release
the wires.
Squeeze the mounting tabs on the switch, to release 7.
the switch and push it out through the side panel of the
log grate. Note its original on/off position in the open-
ing.
!
NOTE: It may be helpful to use needle-nose pliers for a
better grip and squeeze the mounting tabs simultaneously,

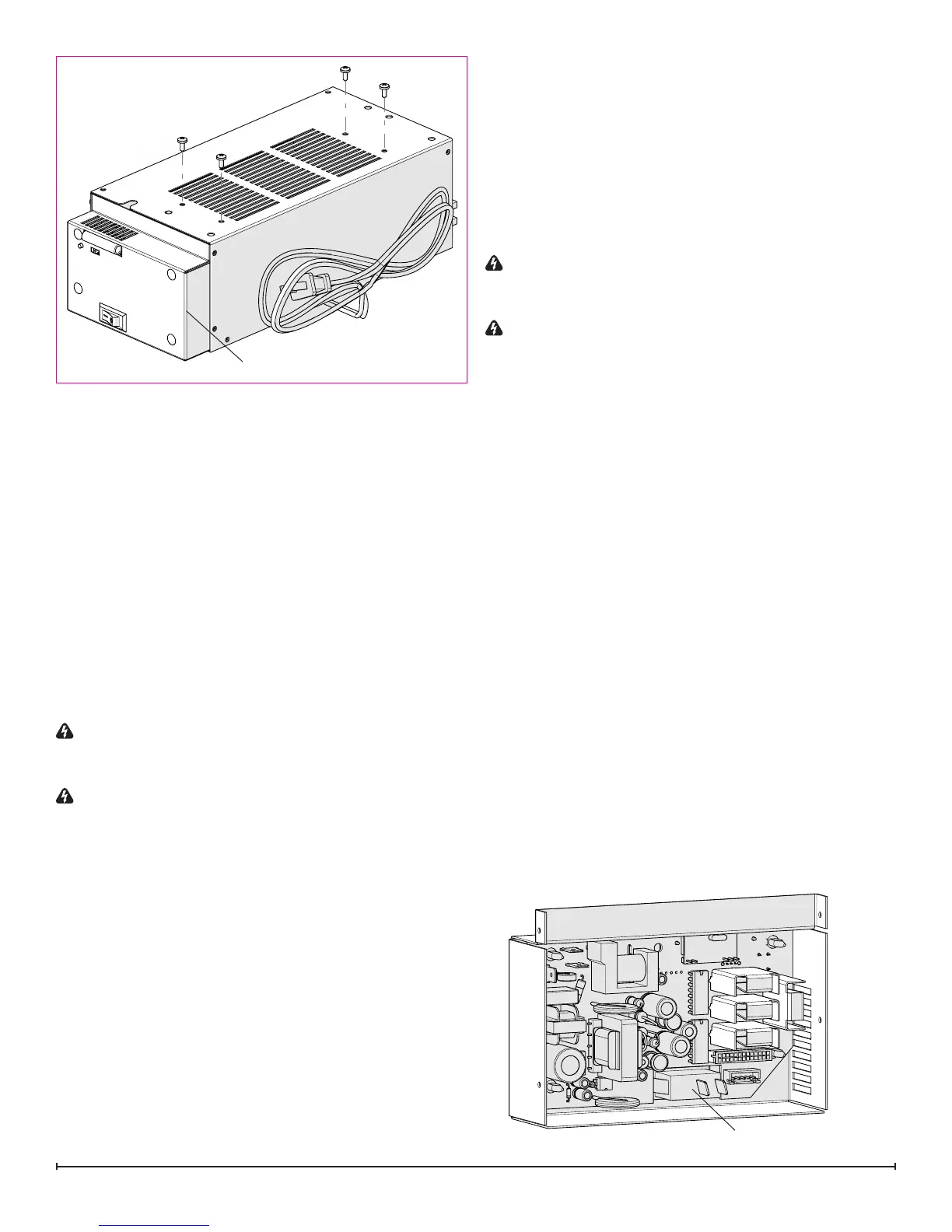

Figure 6
Figure 7
Remote Control Receiver Housing
On/Off Switch
