POWER CORD REPLACEMENT

Tools Required: Philips head screwdriver

Needle-nose pliers

Flat Head Screwdriver

WARNING: If the log grate was operating prior to ser-

vicing, allow at least 10 minutes for light bulbs and heating

elements to cool off to avoid accidental burning of skin.

WARNING: Disconnect power before attempting any

maintenance to reduce the risk of electric shock or damage

to persons.

Disconnect and remove all of the logs from the unit and 1.

put them in a safe place.

Remove the two (2) screws that secure the icker mo-2.

tor onto the bracket. (Figure 3)

There are four (4) screws that secure the bottom as-3.

sembly to the grate. Remove the four (4) screws and

the whole box can be removed and enable you to have

easier access to everything. (Figure 4)

Remove the two (2) screws on the top panel and the 4.

six (6) screws on the back panel (Figure 5). This will

allow the housing to open to access the internal com-

ponents.

NOTE: The whole assembly can be opened at this

point, ensure that there is no strain added to any of the wir-

ing within the housing, when the two halves are separated.

Follow the wiring from the power cord up to the remote 5.

control receiver board, removing any tie wraps and

remove the connections, taking note of the original

locations.

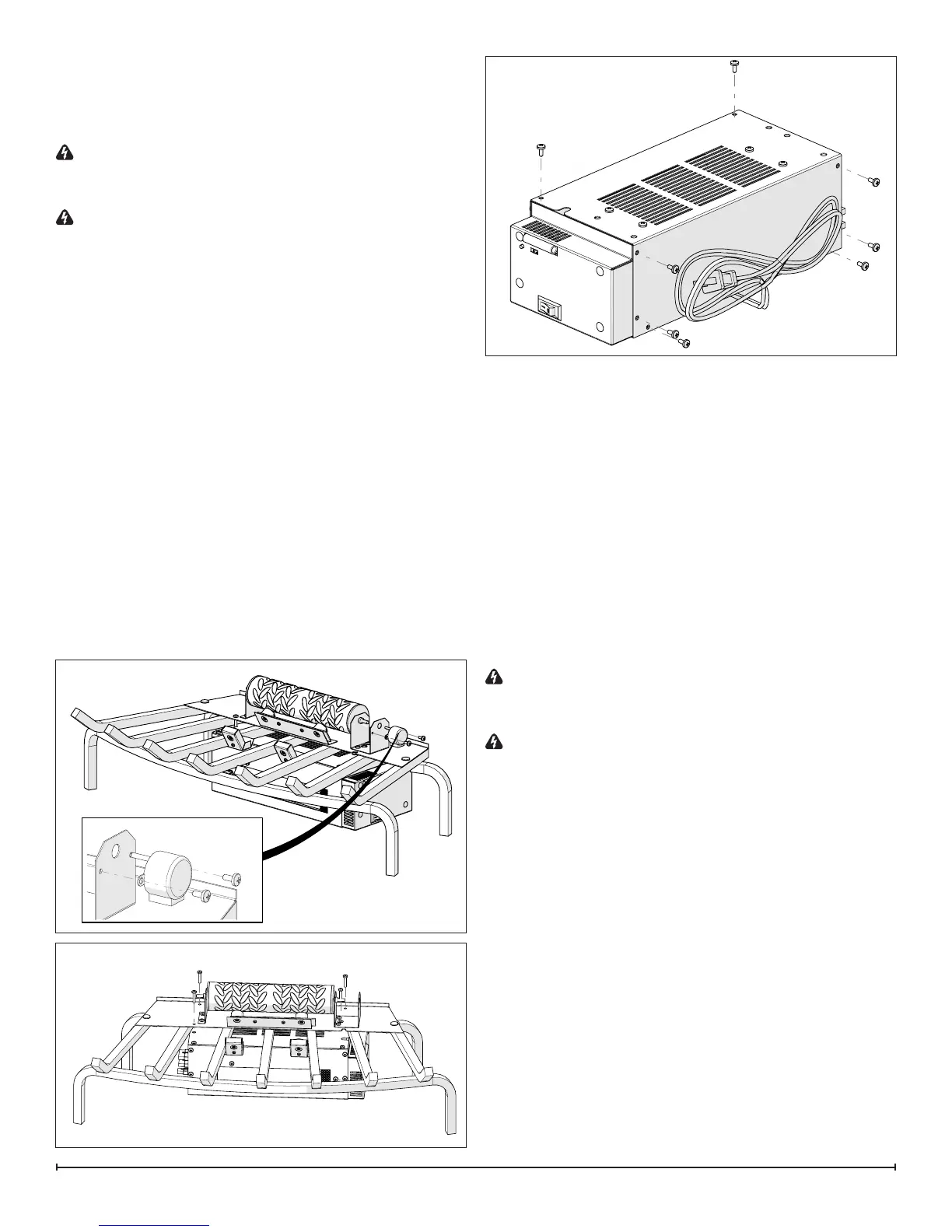

Figure 3

Figure 4

NOTE: Use a at head screwdriver to gently pry

between the end of the connector and the remote control

receiver to release the wires.

With needle nosed pliers, squeeze and push the grom-6.

met securing the power cord out of the casing.

Insert the new power cord and grommet, reattaching 7.

the wire with new tie wraps.

Reconnect the wires according in their original congu-8.

ration.

Re-assemble the remainder of the log grate in reverse 9.

order from the instructions above.

HEATER ASSEMBLY REPLACEMENT
