Dimplex NBDF2608 - Fireplace Installation

7

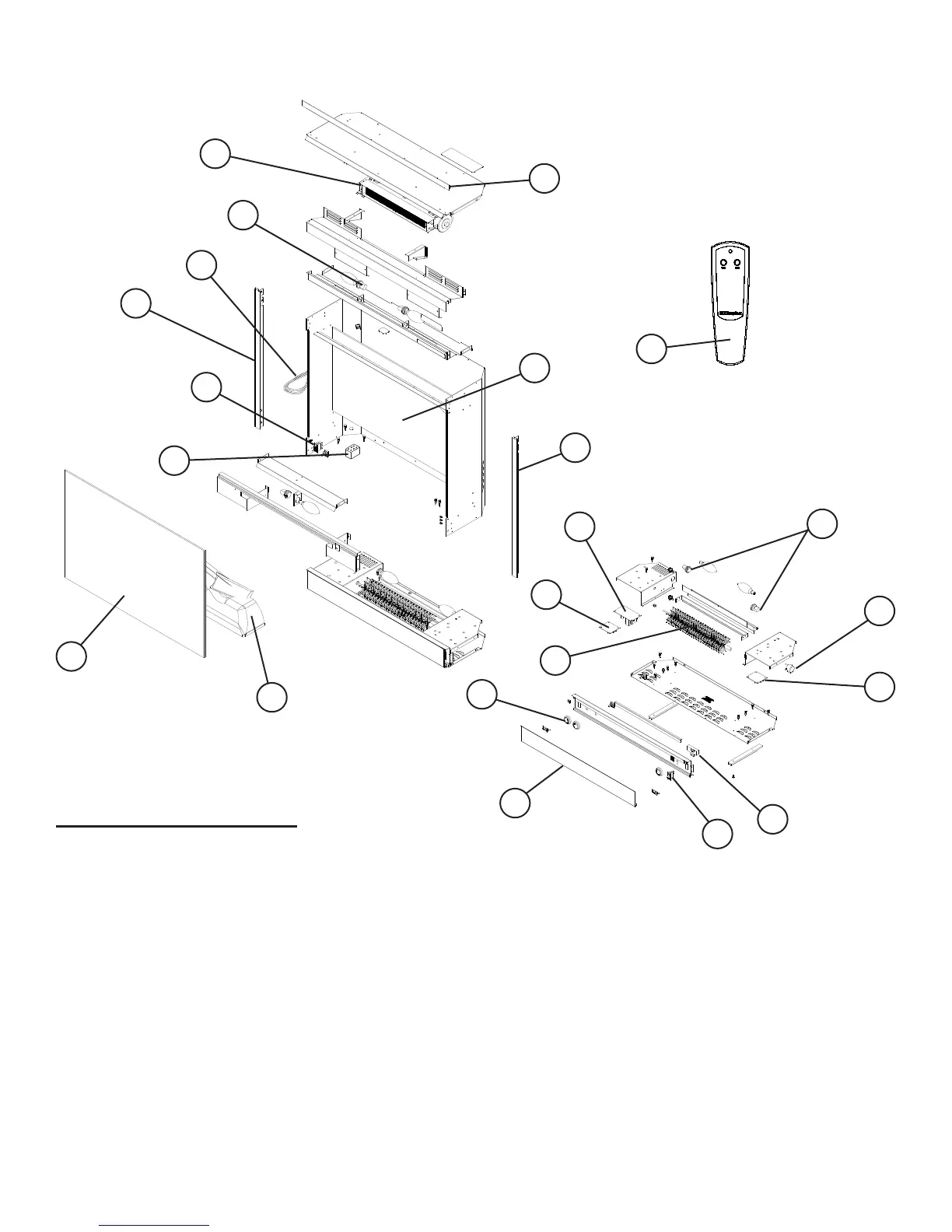

Exploded Parts Diagram - DF2622
Replacement Parts List
Part Number 6904400659
Replacement Part:
Log Set1. . . . . . . . . . . . . . . . . . . . . . . . 0439560200RP
Flicker Motor 2. . . . . . . . . . . . . . . . . . . 3000240200KIT
Heater Assembly (with cutout) 3. .....2000330100RP
Thermostat 4. . . . . . . . . . . . . . . . . . . . . 2300150100RP*
Heater Switch 5. . . . . . . . . . . . . . . . . . . 2800210100RP
3-Position Switch 6. . . . . . . . . . . . . . . . 2800210500RP
Flame Speed Control 7. . . . . . . . . . . . . 3000240500RP
Light Dimmer Control 8. . . . . . . . . . . . . 3000250100RP
Power Cord 9. . . . . . . . . . . . . . . . . . . . 4100040200RP
Single Light Holder 10. . . . . . . . . . . . . . . 2500150300RP
Double Light Harness 11. . . . . . . . . . . . 2500400300RP
Partially Reective Glass 12. .........5901450100RP
Front Glass 13. . . . . . . . . . . . . . . . . . . . 5901220100RP
Control Knob (3 on unit)14. . . . . . . . . . . 8800000200RP
Remote Control 15. . . . . . . . . . . . . . . . . 3000370500RP
Remote Control Receiver 16. .........3000380200RP
Terminal Block 17. . . . . . . . . . . . . . . . . . 4000070100RP
Flicker Rod 18. . . . . . . . . . . . . . . . . . . . . 5901250100RP
Stainless Steel Replacement Parts for DF2622SS
Stainless Steel Control Cover19. . . . . . . 1018760180RP
Stainless Steel Top Trim20. . . . . . . . . . . 1018830180RP
Stainless Steel Right Side Trim21. .....1018840180RP
Stainless Steel Left Side Trim22. . . . . . . 1018830280RP
15
7
5
1
2
3
4
8
9
6
12
13
11
18
10
16
14
17
19
20
21
22
