Opti-V Installation
!
NOTE: Framing should be
constructed to support:
VF2927L / VFA2927 - 63 lbs (29 kg)
VF5452L - 116 lbs (52 kg)
A B C1 D1 E1 F1 G
VF5452L
54.5"
(1380 mm)
17.7"
(450 mm)
14"
(355 mm)
2.75"
(70 mm)
9.8"
(249 mm)
51.8"
(1316 mm)
0.9"
(23 mm))
VF2927L
30.0"
(762 mm)
17.7"
(450 mm)
14"
(355 mm)
2.75"
(70 mm)
9.8"
(249 mm)
27.4"
(696 mm)
0.9"
(23 mm)
VFA2927
30.0"
(762 mm)
17.7"
(450 mm)
14"
(355 mm)
2.75"
(70 mm)
9.8"
(249 mm)
27.4"
(696 mm)
0.9"
(23 mm)
C2 D2 E2 F2 H I
VF5452L
13"
(330 mm)
2.96"
(75 mm)
9.45"
(240 mm)
51.5"
(1308 mm)
18.6"
(474 mm)
55.3"
(1404 mm)
VF2927L
13"
(330 mm)
2.96"
(75 mm)
9.45"
(240 mm)
27.1"
(688 mm)
18.6"
(474 mm)
30.5"
(775 mm)
VFA2927
13"
(330 mm)
2.96"
(75 mm)
9.45"
(240 mm)
27.1"
(688 mm)
18.6"
(474 mm)
30.5"
(775 mm)

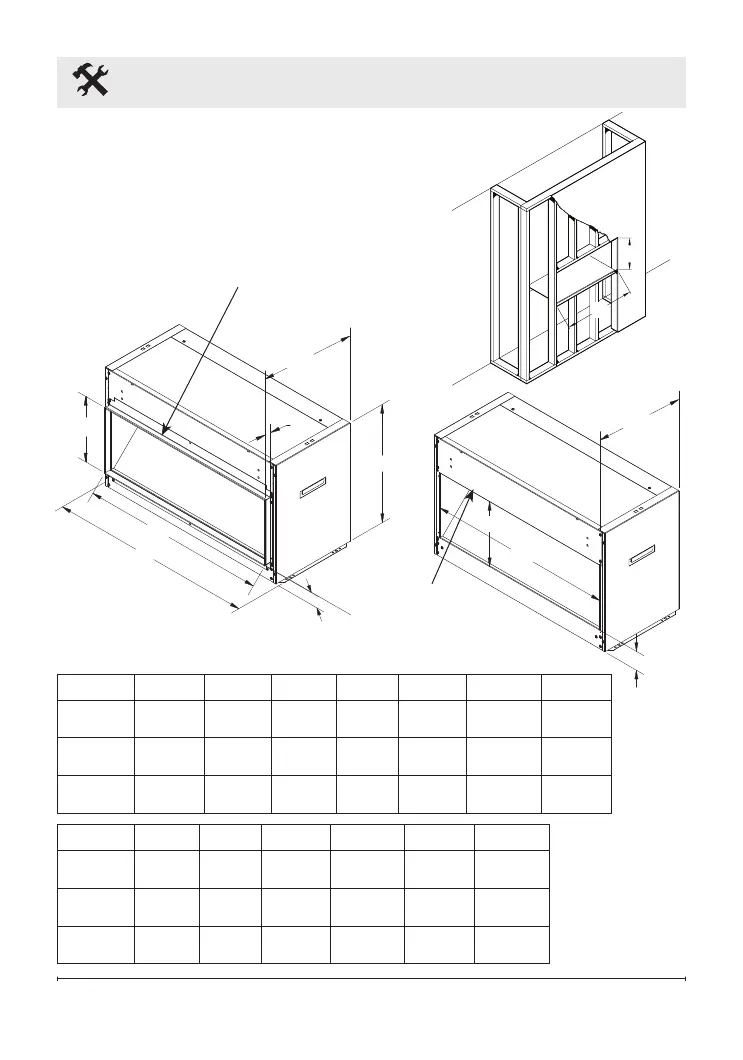

Figure 1
G
H
*
*
*Outside dimensions
F2
D2
E2
C2
F1
C1
B
A
D1
G
E1
Removable
Trim
Without
Trim
H
I

Dimplex Opti-V Specifications

General

Remote Control	Yes
Type	Electric fireplace
Heat Output	No heat
Voltage	220-240V
Thermostat	No
Color Options	Black
Sound	Crackling fire sound
Installation	Wall-mounted
Fuel Bed	Logs
