Fireplace Installation
Option #1 - The power cord can
be lead from behind the trim
and along the wall to an outlet
near the replace.
Option #2 - A new outlet can be
installed inside the new frame
construction. Plug the unit into
a 15 Amp/120 Volt outlet.
!
NOTE: A 15 Amp, 120 Volt
circuit is required. A dedicated
circuit is preferred but not es-
sential in all cases. A dedi-
cated circuit will be required
if, after installation, the circuit
breaker trips or fuse blows
on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating
of the circuit breaker.
Bathroom Installation
This rebox must be protected by
a GFI receptacle or circuit. If a
receptacle is used it must be readily
accessible.
To prevent electrical shock this unit
is an electrical appliance that is not
watertight and must be installed as to
prevent water from entering the unit.
This unit must be installed away from
showers, tubs, etc. Never locate re-
place where it may fall into a bathtub
or other water containers.

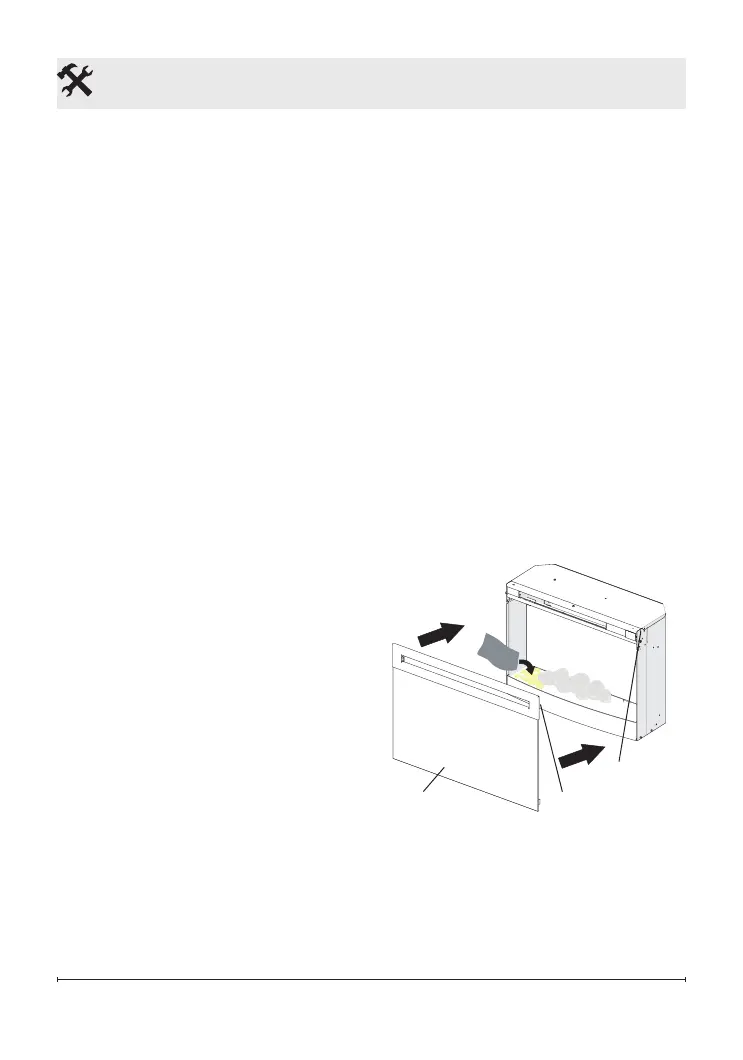

Figure 3
Front glass
Mounts
Hooks
Media Installation
Depending on the model, the media
may come installed in the unit or
packaged seperately.
Installed Media
• No additional steps are required.
Media Seperately Packaged
1. Remove the front glass by lifting
the 2 hooks off of the 2 mounts
on the rebox.
2. Place the large media in the
Media Tray in the center at the
back (for optimum media effect),
then carefully pour and evenly
distribute the smaller media into
the Media Tray.
3. Replace the front glass.
