9

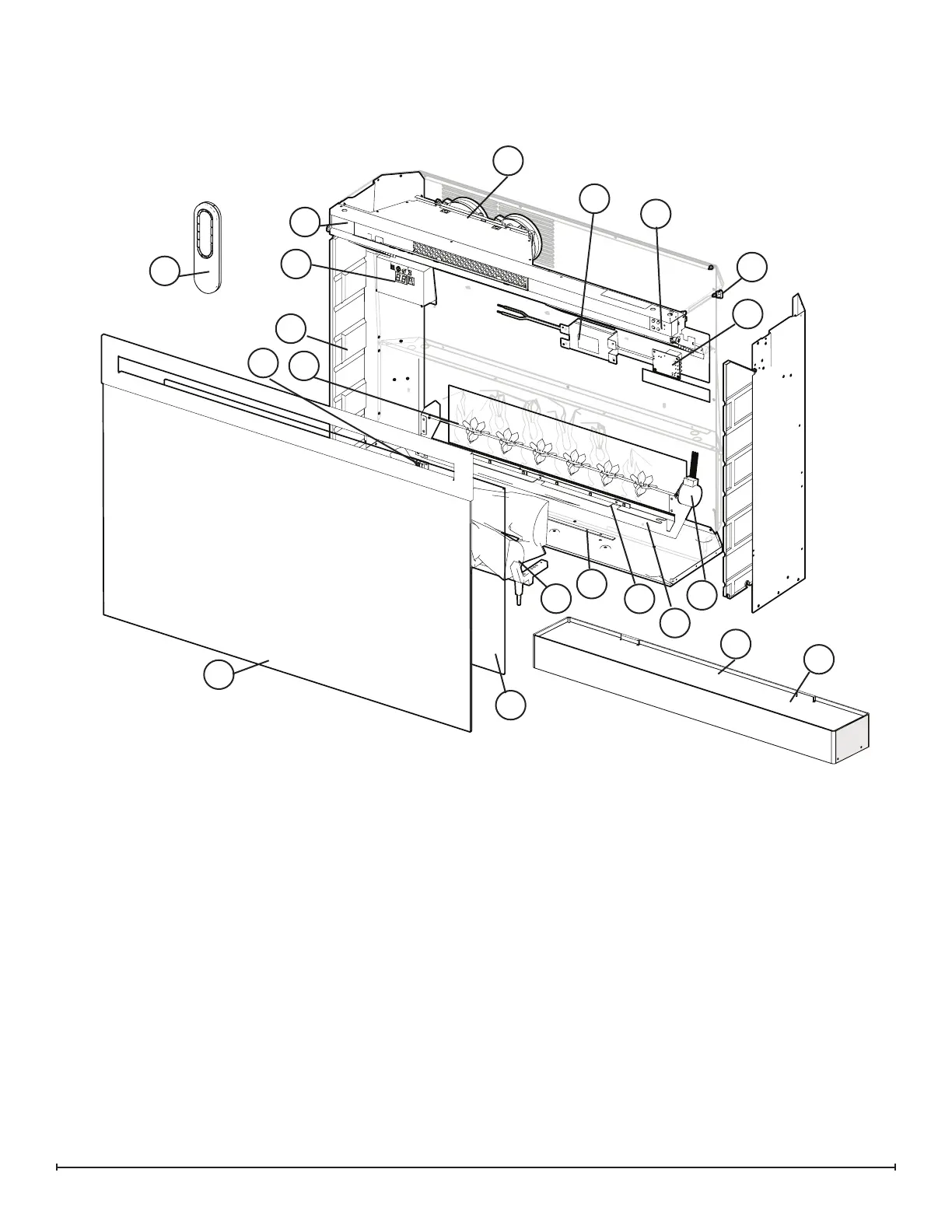

Exploded Parts Diagram - PF3033 Mod B-C
Replacement Parts - PF3033 Mod B-C:
1. Flicker Motor .......................... 2000480100RP
2. Heater Assembly (with cutouts) ........... 2203650100RP
3. Cord Set ............................. 4100190300RP
4. Remote Control ....................... 3001250100RP
5. Floating Display™ Assembly/Main Control Board 3001530100RP
6. gWave
TM
Assembly .................... 3001620100RP
7. Relay Board .......................... 3001540100RP
8. Power Supply ......................... 2100250300RP
9. Log set Junction Board (MOD B only) ...... 3001600100RP
10. Top Light Assembly .................... 3001290100RP
11. Log set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441540200RP
12. Media Tray ........................... 0441580200RP
13. Front Glass .......................... 1026770600RP
14. Partially Reective Glass ................ 5902750400RP
15. Brick Panel Set ........................ 0441600300RP
16. Flicker Assembly ...................... 5902830200RP
17. Media LED Light Assembly .............. 3001330600RP
18. Ember LED Light Assembly .............. 3001300200RP
19. Flame LED Light Assembly .............. 3001310300RP
20. Flame Bed LED Assembly ............... 3001330400RP
21. Small Acrylic Media .................... 1400150300RP
22. Large Acrylic Media (Ice Chunks) (2 req’d) . . 1400130200RP
2
3
6
9
10
7
16
5
8
4
1
13
12
14
11
15
19
17
20
18
