Dimplex Prism BLF5051 - Wiring Diagram

6 www.dimplex.com

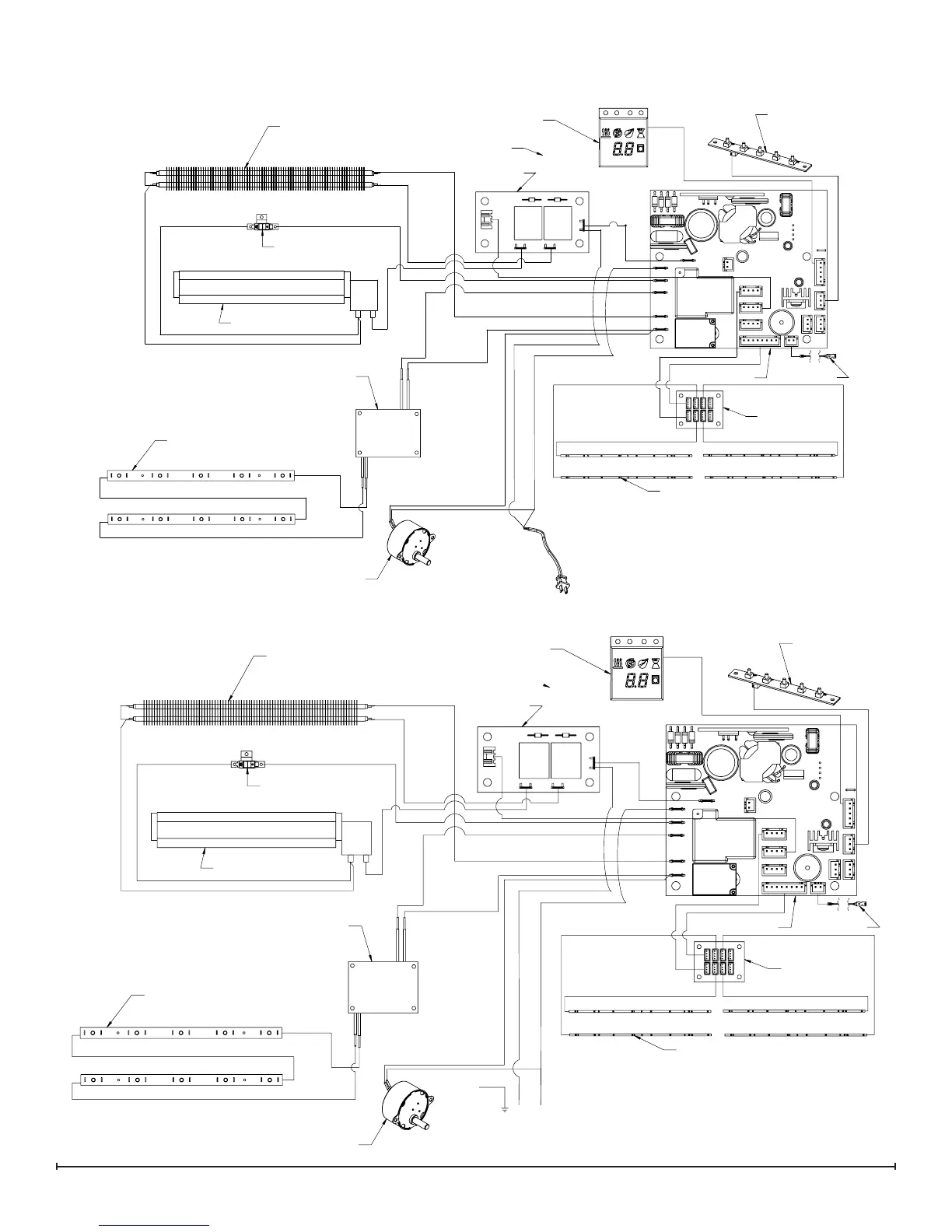

WIRING DIAGRAM
ELEMENT
CUT OUT
BLOWER
LED DRIVER BOARD
LED DISPLAY BOARD
FLICKER MOTOR
MOTOR
HEATER
NEUTRAL
FLAME COLOR
TOP LIGHT
LOG MEDIA
NTC
GESTURE
DISPLAY
FAN
MAIN BOARD
LINE
DISPLAY ASSY
RGB LED STRIP
JUNCTION BOARD
5-KEY SWITCH BOARD
MOTOR HEATER
LINE
RELAY BOARD
NTC
(L) (N)
(G)
ELEMENT
CUT OUT
BLOWER
LED DRIVER BOARD
LED DISPLAY BOARD
FLICKER MOTOR
MOTOR
HEATER
NEUTRAL
FLAME COLOR
TOP LIGHT
LOG MEDIA NTC
GESTURE
DISPLAY
FAN
MAIN BOARD
LINE
CORD
DISPLAY ASSY
RGB LED STRIP
JUNCTION BOARD
5-KEY SWITCH BOARD
MOTOR HEATER
LINE
RELAY BOARD
NTC
(L)
(N)
MOD 0
MOD A
