Dimplex RLG20 - EXPLODED PARTS DIAGRAM - RLG20; REPLACEMENT PARTS LIST - RLG20

6 www.dimplex.com

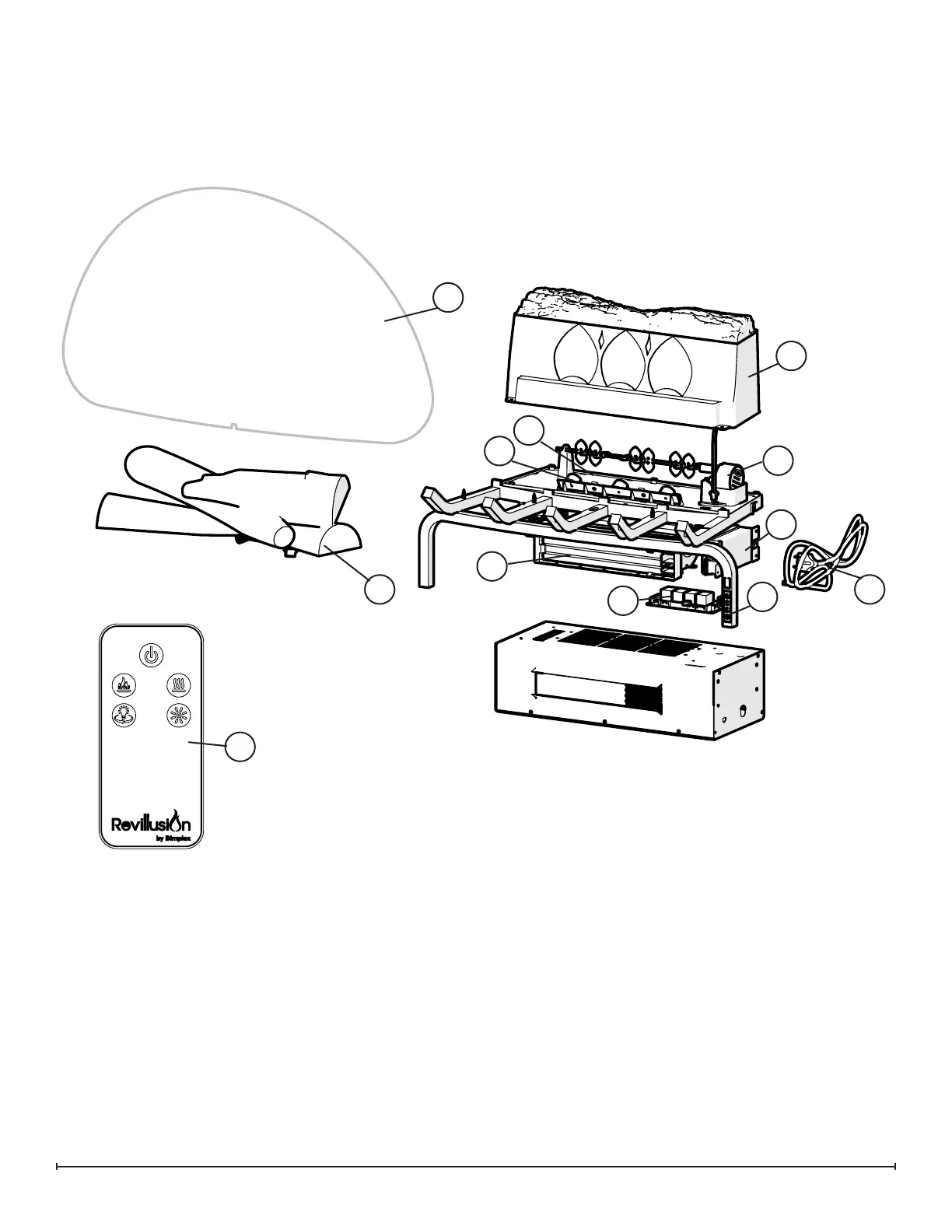

EXPLODED PARTS DIAGRAM - RLG20
REPLACEMENT PARTS LIST - RLG20
1. Logset, 20” . . . . . . . . . . . . . . . . . . . . . . . . . . . 0441910100RP
2. Flame LED Strip. . . . . . . . . . . . . . . . . . . . . . . 3001760100RP
3. Back Log ............................0441920100RP
4. Mirage™ Flame Panel ..................5902930100RP
5. Flicker Motor. . . . . . . . . . . . . . . . . . . . . . . . . . 2000500900RP
6. Back Light Assembly ...................3001770100RP
7. Heater-Blower Assy with Cutout. . . . . . . . . . . 2203730100RP
8. Main Control Board ....................3001740100RP
9. IR Key Board .........................3001750100RP
10. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2100250100RP
11. Cordset, 3-prong ......................4100190300RP
12. Remote Control .......................6700580100RP
Accessory
13. Ash Mat ..................................REM-KIT
6
1
2
3
4
5
7
8
9
10
11
12
