Dimplex RLG20 - EXPLODED PARTS DIAGRAM - RLG25; REPLACEMENT PARTS LIST - RLG25

7

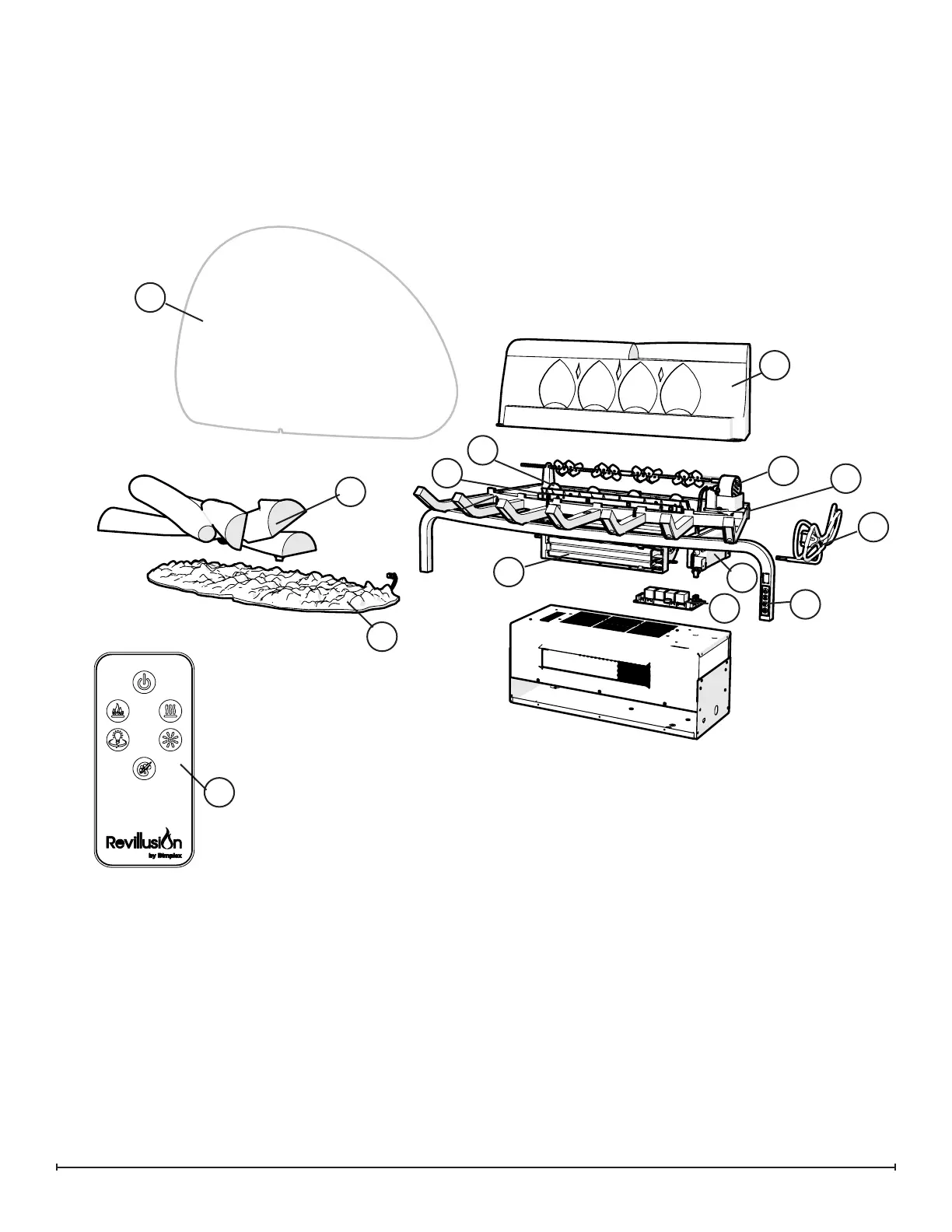

EXPLODED PARTS DIAGRAM - RLG25
10
1
2
3
4
5
11
8
REPLACEMENT PARTS LIST - RLG25
1. Logset, 25” ...........................0441940100RP
2. Flame LEDs, 4x1W ....................3001760200RP
3. Back Log, 25” .........................0441950100RP
4. Mirage™ Flame Panel ..................5902880100RP
5. Flicker Motor, 18RPM, CCW .............2000500900RP
6. Back Light Assembly ...................3001780100RP
7. Coloured Light Assembly ................3001570400RP
8. Heater-Blower Assy with Cutout ...........2203730100RP
9. Main Control Board ....................3001740200RP
10. IR Key Board .........................3001750100RP
11. Power Supply .........................2100250100RP
12. Cordset, 3-prong ......................4100190300RP
13. Remote Control .......................6700580200RP
14. Ash Mat ..................................REM-KIT
