Dimplex TFA36E - Exploded PARTS Diagram

4 www.dimplex.com

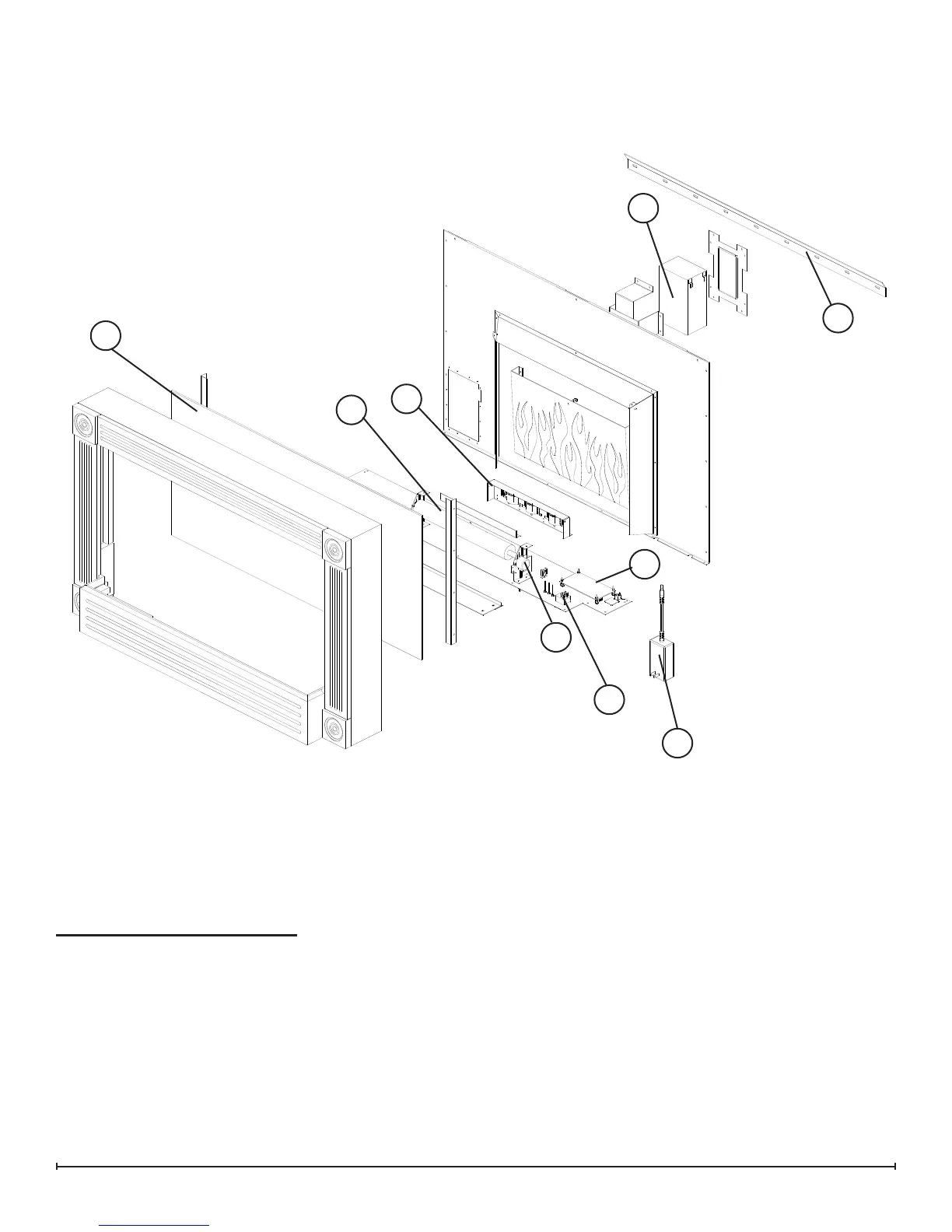

EXPLODED PARTS DIAGRAM
Replacement Parts List
6
1
2
3
4
10
8
5
Flicker Motor1. .....................3000240200KIT
Flicker Rod2. . . . . . . . . . . . . . . . . . . . . . . 5901590100RP
Battery, 12V, 8Ah, .25” terminals3. ......3700150100RP
Switch, ON/OFF Momentary SPDT4. . . . 2800220100RP
PCB; Driver Board; Charger; DC Jack5. . 3000750100RP
AC/DC Power Supply with cord6. . . . . . . 3700180100RP
Partially Reective Glass Assembly 7. ...5901550100RP
LED Light Assembly8. . . . . . . . . . . . . . . . 6908300100RP
Battery Wire Harness9. . . . . . . . . . . . . . . 2500560100RP
Wall Mounting Bracket 10. .............1021650100RP
River Rocks, Large11. ................1400060100RP
7
