BATTERY REPLACEMENT
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempt-
ing any maintenance to reduce the risk of electric shock or
damage to persons.
WARNING: To prevent damage to the electric fireplace
and to prevent bodily harm, only use Dimplex replacement
rechargeable batteries.
WARNING: Improper handling of battery may result in
possible explosion hazard, electric shock and severe bodily
injury.
Do not dispose of battery in a re, the battery may •
explode
Do not open or mutilate battery. The battery contains •
chemicals that are toxic to the eyes and skin
To decrease risk of electric shock, remove wrist •
watches and jewelry such as rings and bracelets when
replacing battery.
To decrease risk of electric shock, only use tools with •
insulated handles.
To prevent damage to the electric replace and to •
prevent bodily harm, only replace battery with Dimplex
replacement rechargeable batteries.
To prevent damage to the electric replace and to •
prevent bodily harm, only use Dimplex approved DC
power supply to power and recharge battery.
To dispose of spent battery, return it to place of •
replace purchase, deliver it to a local recycling facility
or ship it to Dimplex North America Limited in the
replacement battery packaging material.
Ensure the replace is turned OFF.1.
Unplug the Power Supply cord from the unit (if at-2.
tached).
Carefully remove the River Rocks (media) from the 3.
Media Tray on the front of the replace
Lift and remove the electric replace from the wall-4.
mounting bracket (Figure 2) and carefully place it
upright on a at surface.
CAUTION: A protective barrier (i.e. blanket) between
the replace and work surface will help prevent scratches
on the work surface or the replace.
On the back of the replace, remove the eight (8) 5.
screws securing the battery cover to the unit, located in
the bottom, right corner of the back panel (Figure 3).
Lift and remove the battery access cover.6.
Tilt the unit backwards, to allow the battery to slide out 7.
of the opening.
!
NOTE: The battery is heavy so ensure that it will slide
out onto the at surface.
CAUTION: Take care not to damage the 2 wire con-
nections on the left side of the battery. (Figure 3)
Once battery is out of the opening, remove the two (2) 8.
wire lead connectors from the battery terminals taking
note of their original conguration.
!
NOTE: These wire connectors can be carefully re-
moved one at a time by using needle nosed pliers.
Reconnect the wire leads with black leading to black 9.
and red leading to red to ensure correct polarity and
that they are not pinched when replacing the access
cover.
Insert the replacement battery into the opening, careful-10.
ly orienting the wire leads so that they are not pinched.
Replace the access cover and screws.11.
Battery must be recycled or disposed of properly.
Check with your Local Authority or Retailer for
recycling advice in your area.
FLICKER MOTOR REPLACEMENT
Tools Required: Phillips Screw Driver;
Flat Head Screw Driver
Needle Nosed Pliers
WARNING: Unplug or disconnect power before attempt-
ing any maintenance to reduce the risk of electric shock or
damage to persons.
WARNING: To prevent damage to the electric fireplace

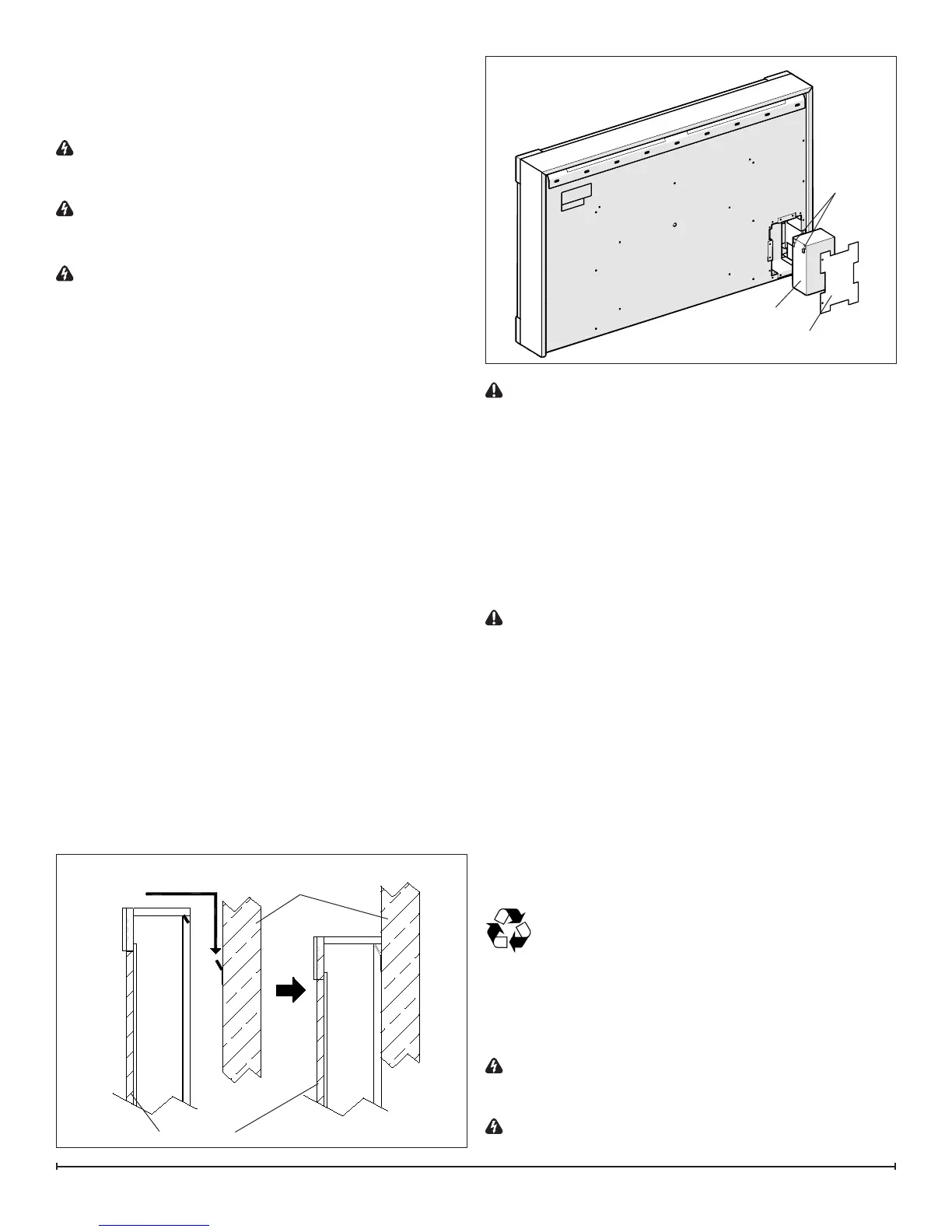

Figure 2
Wall
Segment
Front of Fireplace
Figure 3
Battery Cover
Battery
Battery
Terminals
To Next Page
