Outrigger Operation
1 Position the machine below the desired
work area.
Note: The engine must be running for the
outriggers to operate.
2 Push and hold the outrigger auto level
button.
3 Press and hold the function enable switch.
Activate the proportional control handle in
the direction indicated by the yellow arrow.
The outriggers will extend and level the
machine. A beep will sound when the
machine is level.
The indicator light on the lift function enable
button will turn on when one but not all
outriggers are down. All drive and lift functions
are disabled.
The indicator lights on the lift function enable
button and on the individual outrigger buttons
will turn off when all the outriggers are in firm
contact with the ground.
The drive function is disabled while the
outriggers are down.
To control individual outrigger
1 Push and hold one or more outrigger
function enable buttons.
2 Press and hold the function enable switch.
Activate the proportional control handle in
the direction indicated by the yellow arrow.
The outriggers will extend and level the
machine.
Emergency Lowering
1 Turn the key switch to ground control.
2 Press and hold the emergency lowering
down enable button.
3 Press and hold the emergency lowering
down button.

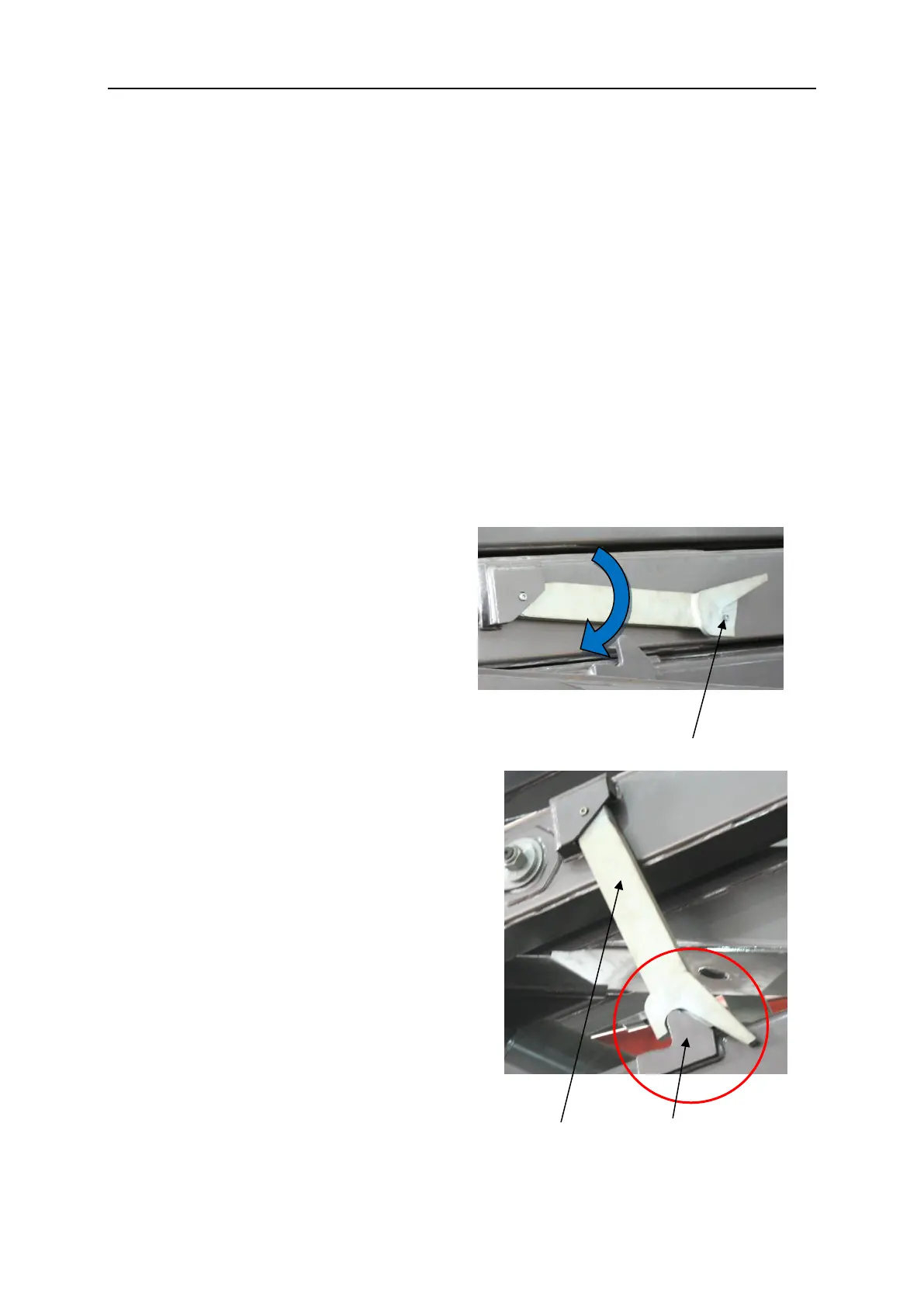

How to use the Safety Arm
The safety arm on the left and on the right side
of the scissor system needs to be used for
maintenance work. This safety arm relief the
lifting cylinder and they hold the working
platform safe.
To put the safety arm into the retainer the
working platform has to be lifted. Afterwards
the screws can be released so that the safety
arm can be aligned downward.
When lowering the lifting system the safety
arm will be engage into the retainers among.
The lowering procedure will be interrupted
automatically if the safety arms are on block.
Safety screw
Arm Retainer
