OPERATORS MANUAL with Maintenance Information
Control Panel
15

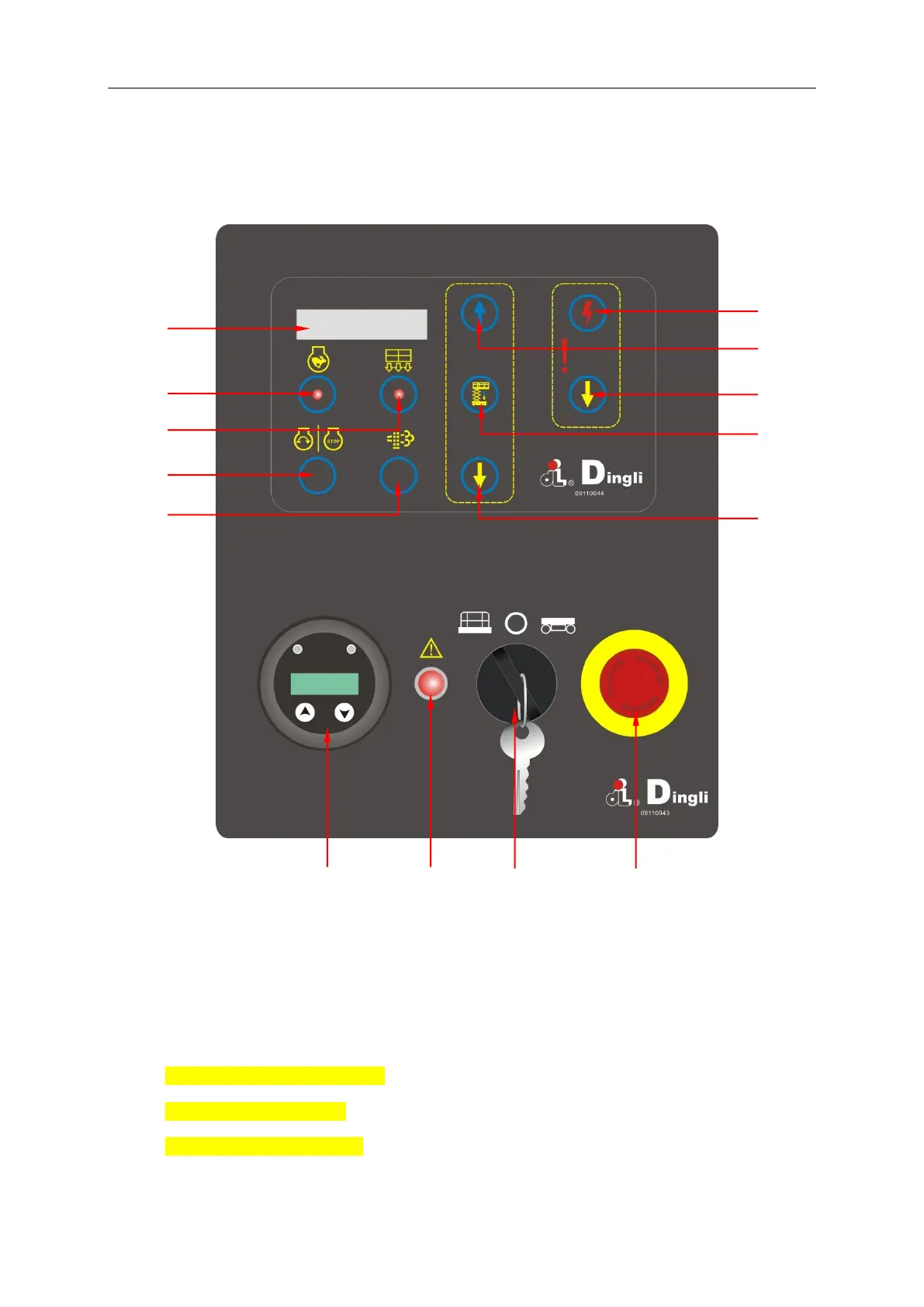

Ground Control Panel
1 Display
8 Key switch
2 Engine idle select button
9 Red Emergency Stop button
3 Overload indicator light
10 Platform down button
4 Engine start/flameout button
11 Lift function enable button
5 Standstill-Regeneration button
12 Emergency lowering down button
6 Engine diagnostic device
13 Platform up button
7 Engine fault alarm indicator
14 Emergency lowering down enable button
1
2
3
4
5
14
13
12
11
10
6 7 8 9
