DINGLI JCPT2223RTB User Manual

OPERATOR’S MANUAL with Maintenance Information

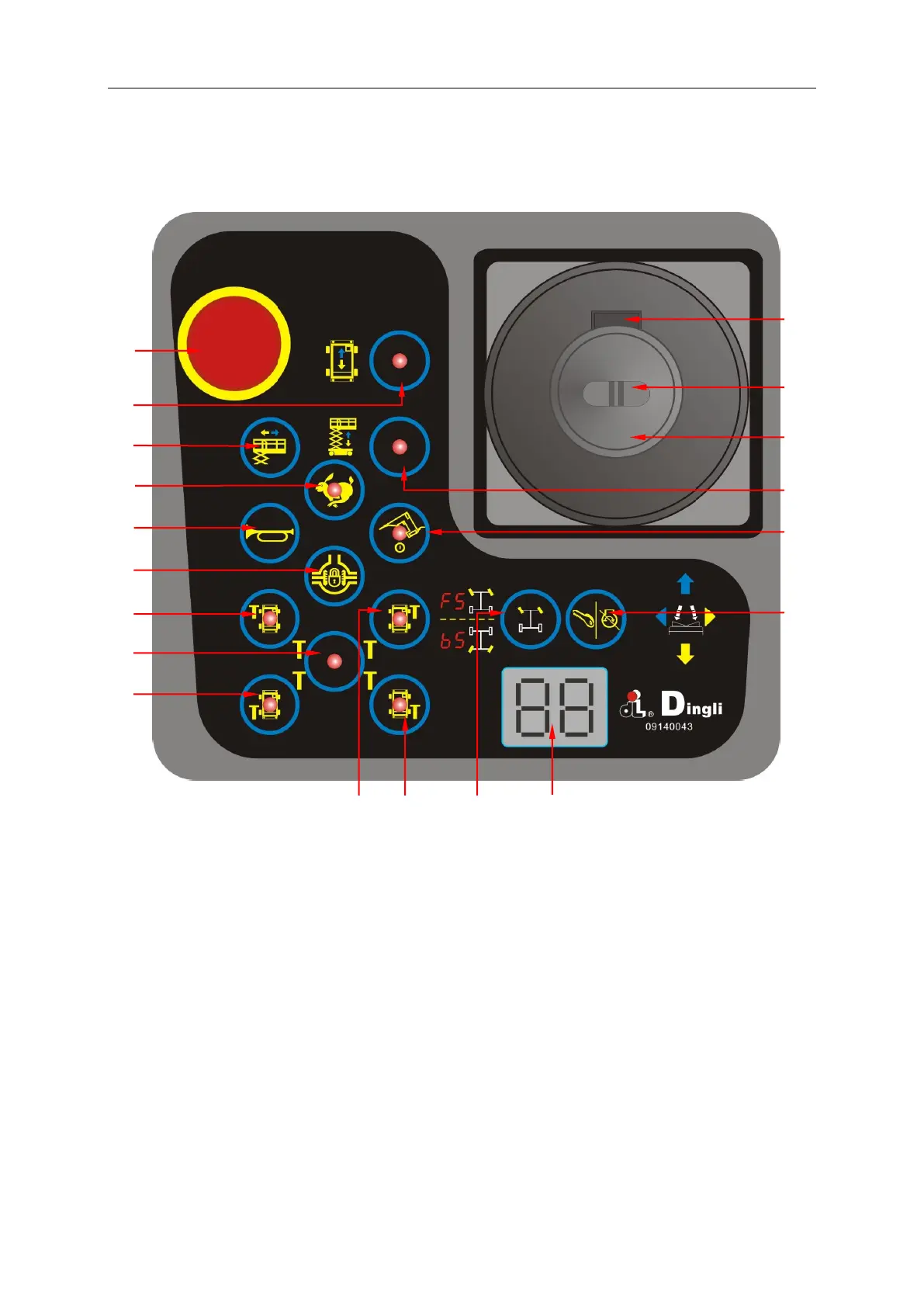

Control Panel
17
Platform Control Panel
1 Red Emergency Stop button
9 Steer mode select button
2 Drive function select button
10 LED readout screen
3 Power platform button
11 Engine start / flameout button
4 Engine idle select button
12 Generator select button (if equipped)
5 Horn button
13 Lift function select button
6 Standby
14 Proportional control handle
7 Outrigger function enable button
15 Thumb rocker switch
8 Outrigger auto level button
16 Function enable switch
16
15
14
13
12
11
1
2
3
4
5
6
7
8
7
7 7 9 10

DINGLI JCPT2223RTB Specifications

General

Brand	DINGLI
Model	JCPT2223RTB
Category	Scissor Lifts
Language	English
