OPERATOR’S MANUAL with Maintenance Information

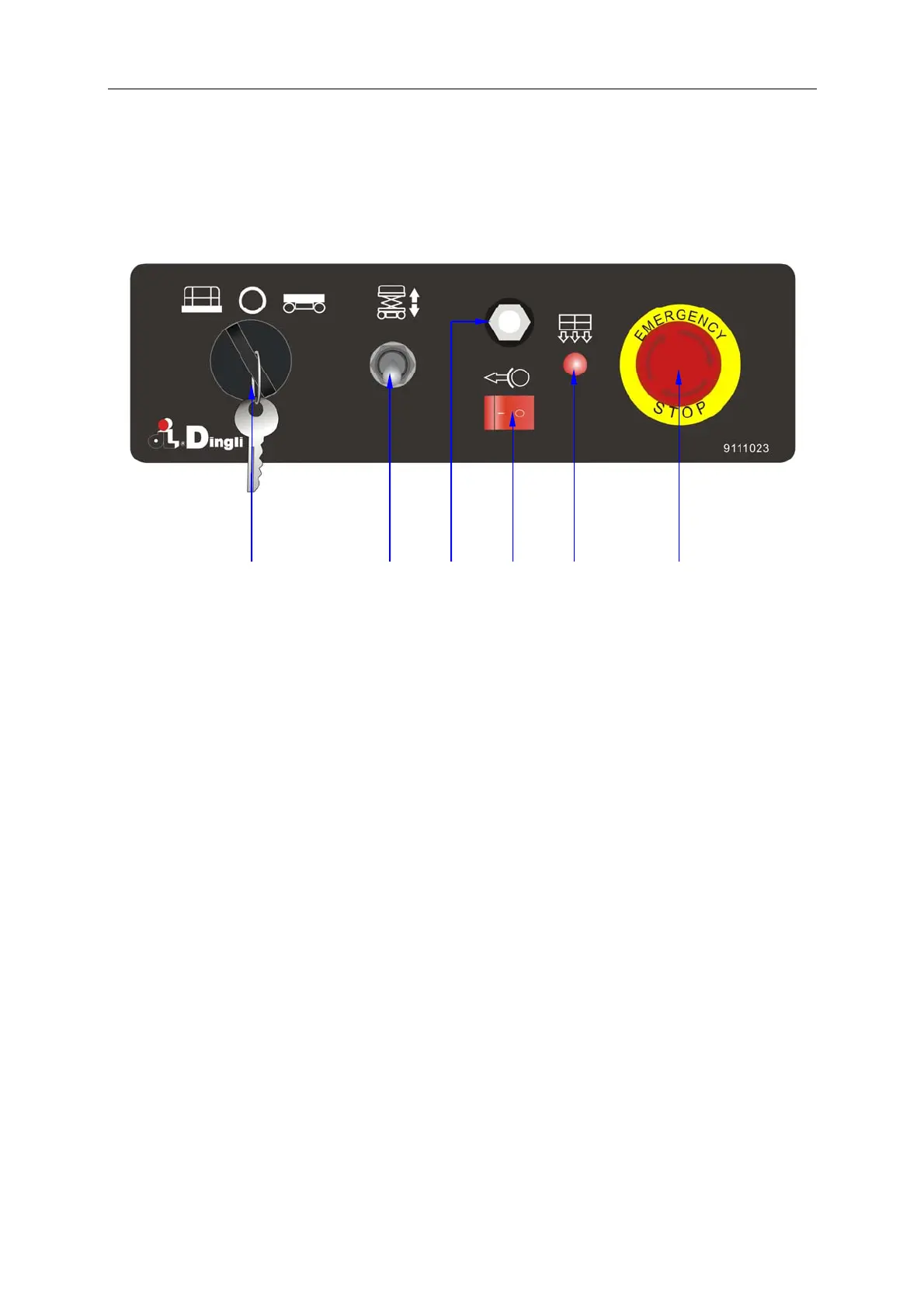

Control Panel
15
For S06-E
1 Key switch
Turn the key switch to the platform
position and the platform controls will
operate. Turn the key switch to the off
position and the machine will be off. Turn
the key switch to the base position and
the ground controls will operate.
2 Platform up / down switch
Move the switch up and the platform will
raise. Move the switch down and the
platform will lower.
3 Circuit breaker
When the current was overloaded, the
circuit breaker will cut off the circuit.
4 Brake release switch.
Press this switch toON” position to
activate the brake release function.
Press this switch.to “OFF” position to turn
off the brake release function.
5 Overload indicator light
Light on indicates when overloaded.
6 Red Emergency Stop button.
Push in the red Emergency Stop button to
the off position to stop all functions. Turn
the red Emergency Stop button clockwise
to the on position to operate the machine.
1 2 3 4 5
6
