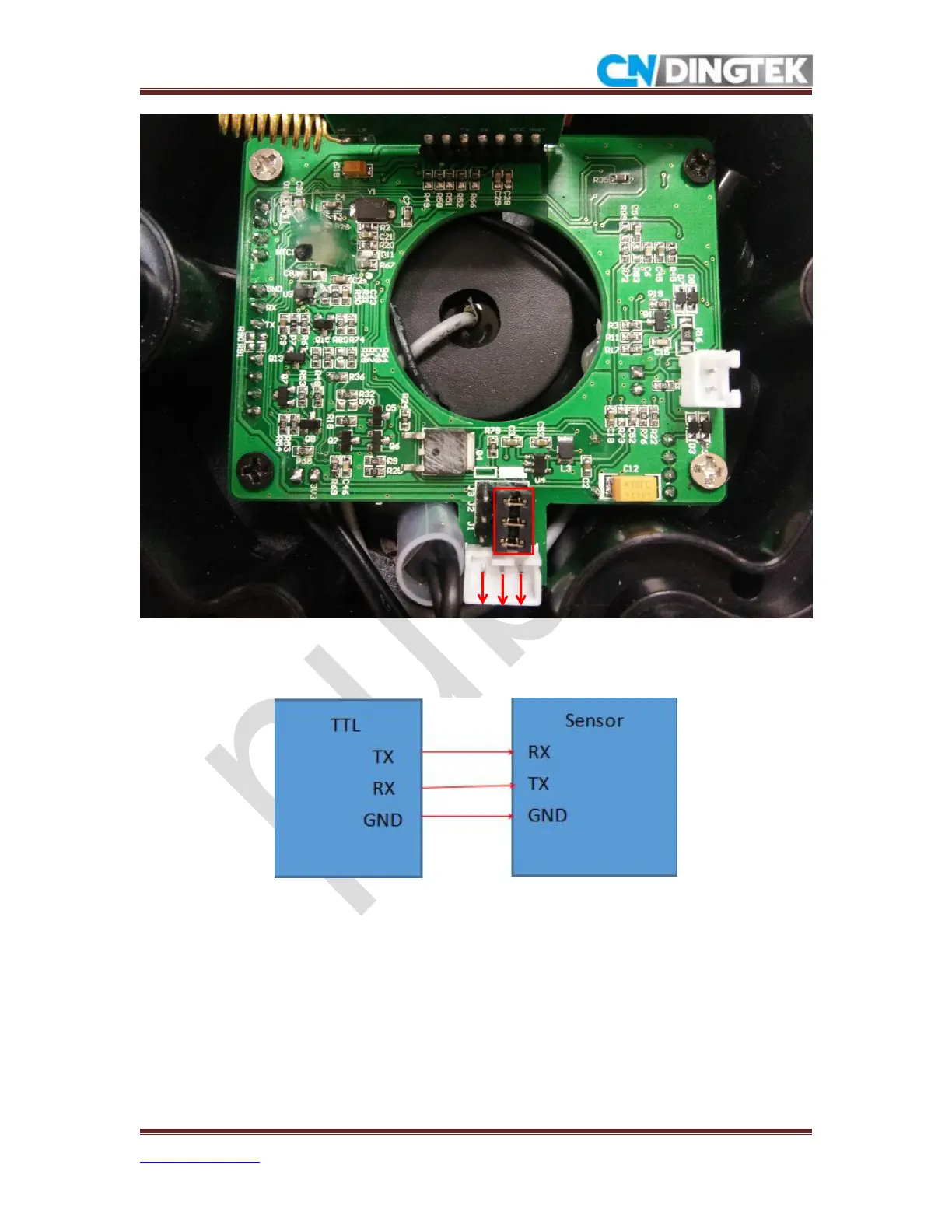

Figure5.3
Connect TTL to device, as shown in Figure 5.4.
Figure5.4
Steps
1 Change jumper cap to hollow position (default it is in the solid position) as shown in
figure5.5.
2 Connect the TTL to the device as shown in figure 5.4.
3 Connect the device's power supply, as shown in figure5.6.
