Dingtek DF702 User Manual

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700
http://www.dingtek.com E-mail: service@dingtek.com
Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page
32
Figure7.15

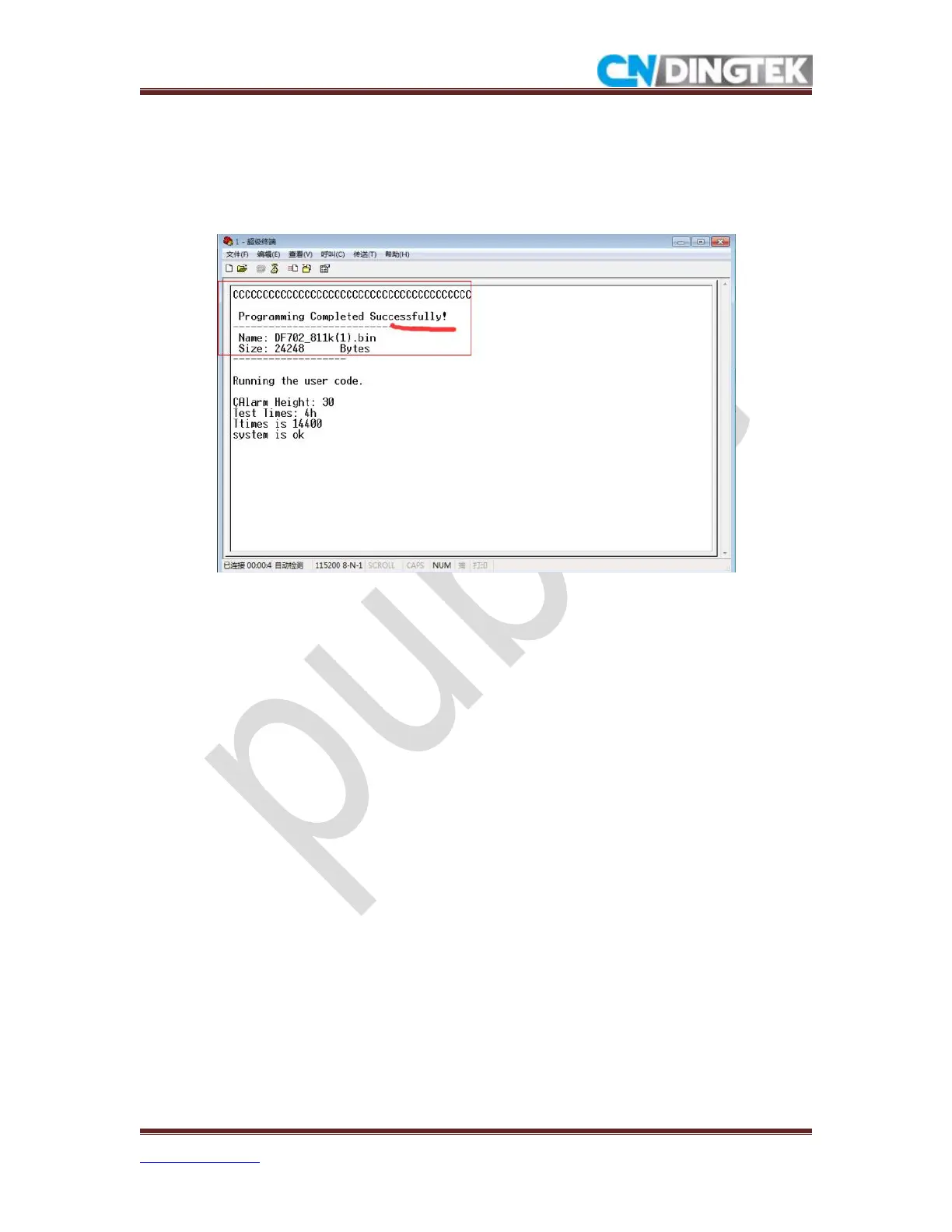

7.4.8 File will be transfer and procedure is completed, you can see on the screen promised
to upgrade successfully (Programming Completed Successfully) as shown in Figure 7.16.
Figure7.16
Notes:
1. If you cannot confirm the results of figure7.6 on the serial port software please checks
connection of RX, TX and TTL device.
7.5 Video link
The instruction of upgrading the device is given with detailed this link can help you to
upgrade the device corresponding the different correct steps.
DF702 Smart Trash Bin sensor Upgrade Instruction:
https://youtu.be/zUQbWT6V414
Attachment
1 Network server
For the network Server in CNDingtek following plate form are used
 Dingtek Network Server

TTN Network server
 Loriot Network server

Actility Network server
User can connect devices to network server to send the data directly from device to network
server.
