Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700
http://www.dingtek.com E-mail: service@dingtek.com
Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page
16
Figure6.2
Serial software :

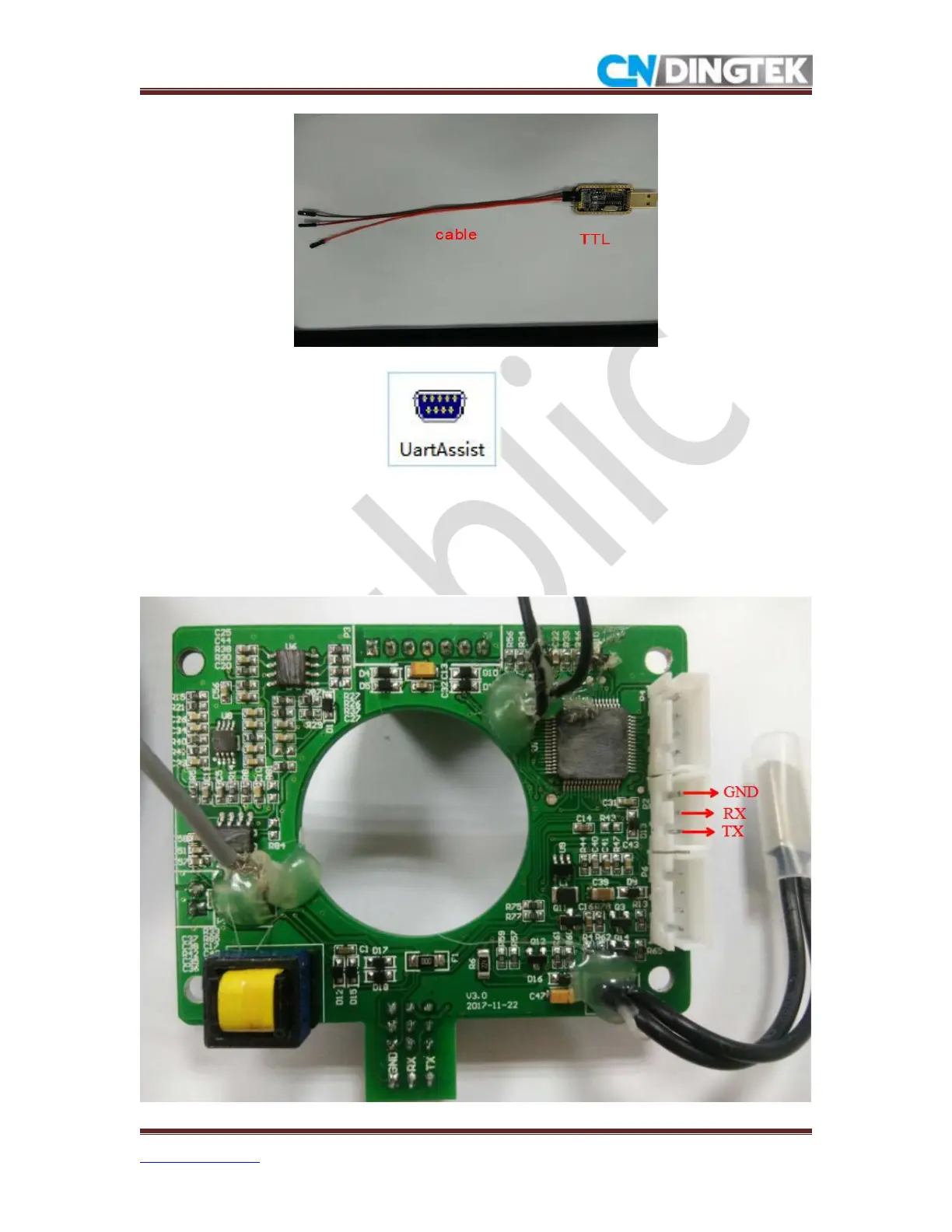

6.2 Connect TTL to sensor
Device serial port GND, TX and RX positions have been marked on the diagram.Upper
diagram the connection of RX,TX,and GND is given with detailed if you not connect properly
then you cannot configure your device properly.
