CONTROL FUNCTIONS

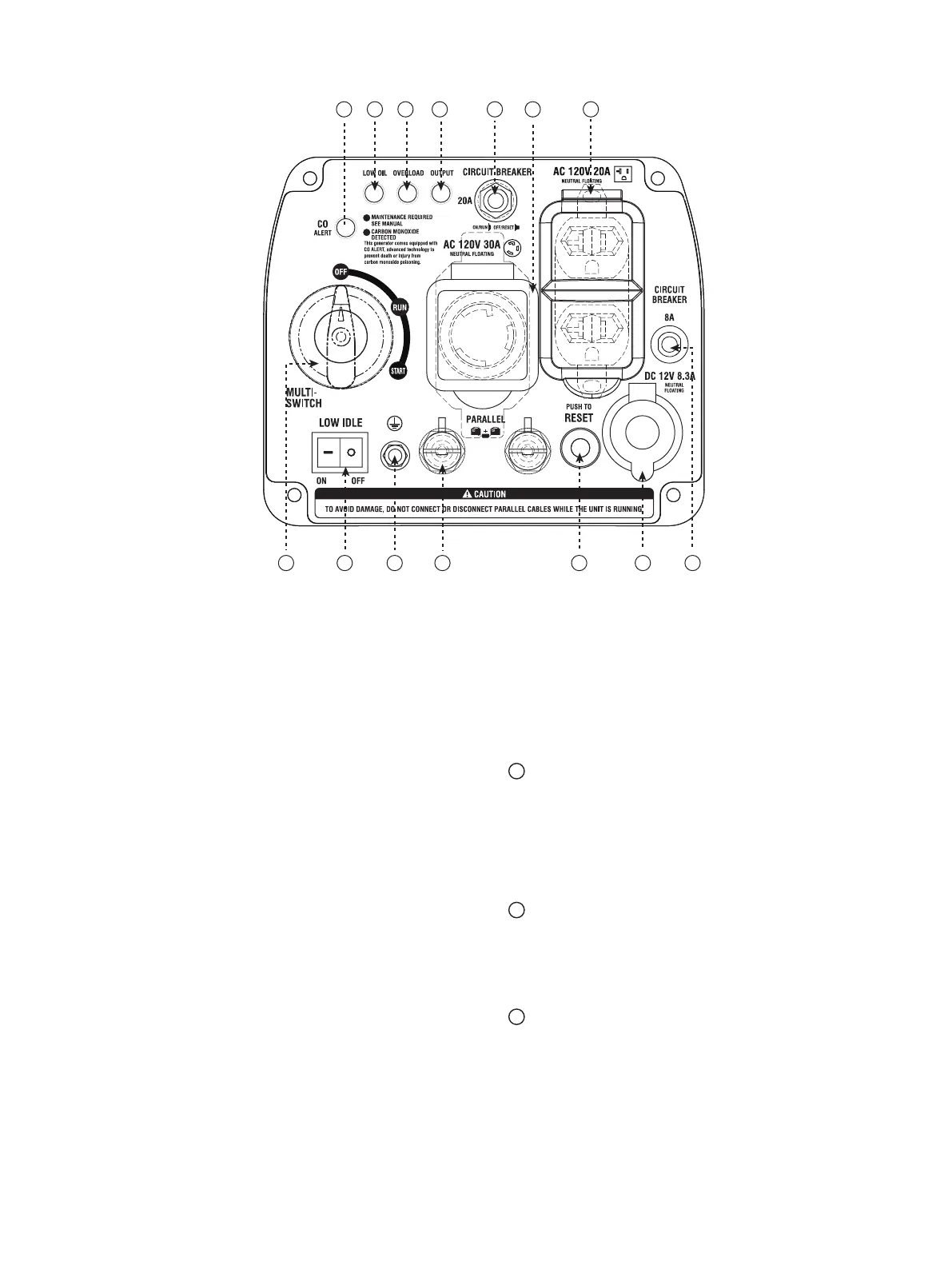

C O N T R O L PA N E L FE A T U R E S
ʏ
120-Volt, 20-Amp Duplex Outlet (NEMA
Multi-Switch:
5-20R):
The outlet is capable of carrying a maximum of 20
amps.
ʐ
ʑ
ʒ
ʓ
ʔ
ʕ
ʖ
ʗ
ʘ
Flashing red light: dangerous levels of
carbon monoxide gas have built up leave immediately
until area has aired out. Move generator to
well-ventilated area before operation. Flashing yellow
light: carbon monoxide sensor malfunction. Sensor
needs service.
Press the button to turn green and
enter low idle mode, where the engine will sense
the required load and run at a slower RPM to
save fuel.
The ground terminal is used
to externally ground the generator.
To increase AC power
output, connect two generators of the same type
using a parallel kit. Connector sockets are only
used to connect two inverter generators. They
cannot be used for AC power output. Special
parallel kits need to be purchased separately
and approved by a certification body.
If the generator is overloaded, the reset
breaker will trip. The engine will continue to run,
but there will be no output from the generator.
Unplug the devices and reduce the load. Push in
the reset breaker to reset it.
12V DC 8.3A.
Indicates low oil level.
Indicates the generator is ready
to be used.
If the generator is overload, the
circuit breaker will trip to block current.
Turn position to CHOKE to start
the engine, and turn to RUN position once the
engine is running. Switch to OFF to stop generator.
Indicates that the generator is
overloaded.
120-Volt, 30-Amp Outlet: The outlet is capable
of carrying a maximum of 30 amps.
CO Alarm: Low Idle:
Ground Terminal:
Parallel Connectors:
Reset:
DC Cigarette Lighter Outlet:
Low Oil Alarm:
Overload Alarm:
Power Indicator:
Circuit Breaker:
1
2 3 4 5 6
7
8 9 10 11
12
13 5
12
13
