10
© 2012 Directed. All rights reserved.
RED/BLACK (+/-) DISARM DEFEAT INPUT
Connect to a wire that pulses (+) 12V OR ground when ALL doors unlock (usually the passenger door motor
or driver door unlock switch). Disarming will be defeated if this wire receives a pulse simultaneously with
the Disarm input. This is a polarity selectable input, (see features programming table for options).
[Required add-on security system connection]
RED (+) DISARM INPUT
Connect to a wire (usually the driver door motor) that pulses (+) 12V when the driver door unlocks using the
OEM remote to disarm the system. This wire triggers the Disarm command for the system.
[Required add-on security connection]
GREEN/BLACK (+/-) ARM DEFEAT INPUT
Connect to a wire that pulses (+) 12V OR ground when the doors lock (usually the driver door lock switch).
Arming will be defeated if this wire receives a pulse simultaneously with the Arm input. This is a polarity
selectable input, (see features programming table for options).
[Optional add-on security connection]
DARK GREEN (+) ARM INPUT
Connect to a wire (usually the driver door motor) that pulses (+) 12V when the doors lock. This wire triggers
the Arm command for the system.
[Required add-on security connection]
Light flash Polarity Setting
The internal fuse is used to determine the light flash output. In the (+) position, the on-board relay outputs (+)
12V on the WHITE wire. In the (-) position, the on-board relay will supply a (-) output. When wiring into a
multiplex circuit, you can replace the fuse with a resistor (paying attention to the polarity setting). (Refer to
diagram on White/ Black wire description).
Note: For parking light circuits that draw 10-amps or more, the internal jumper must be switched to a (-)
light flash output. P/N 8617 or a standard automotive SPDT relay must be used on the light flash output
wire.

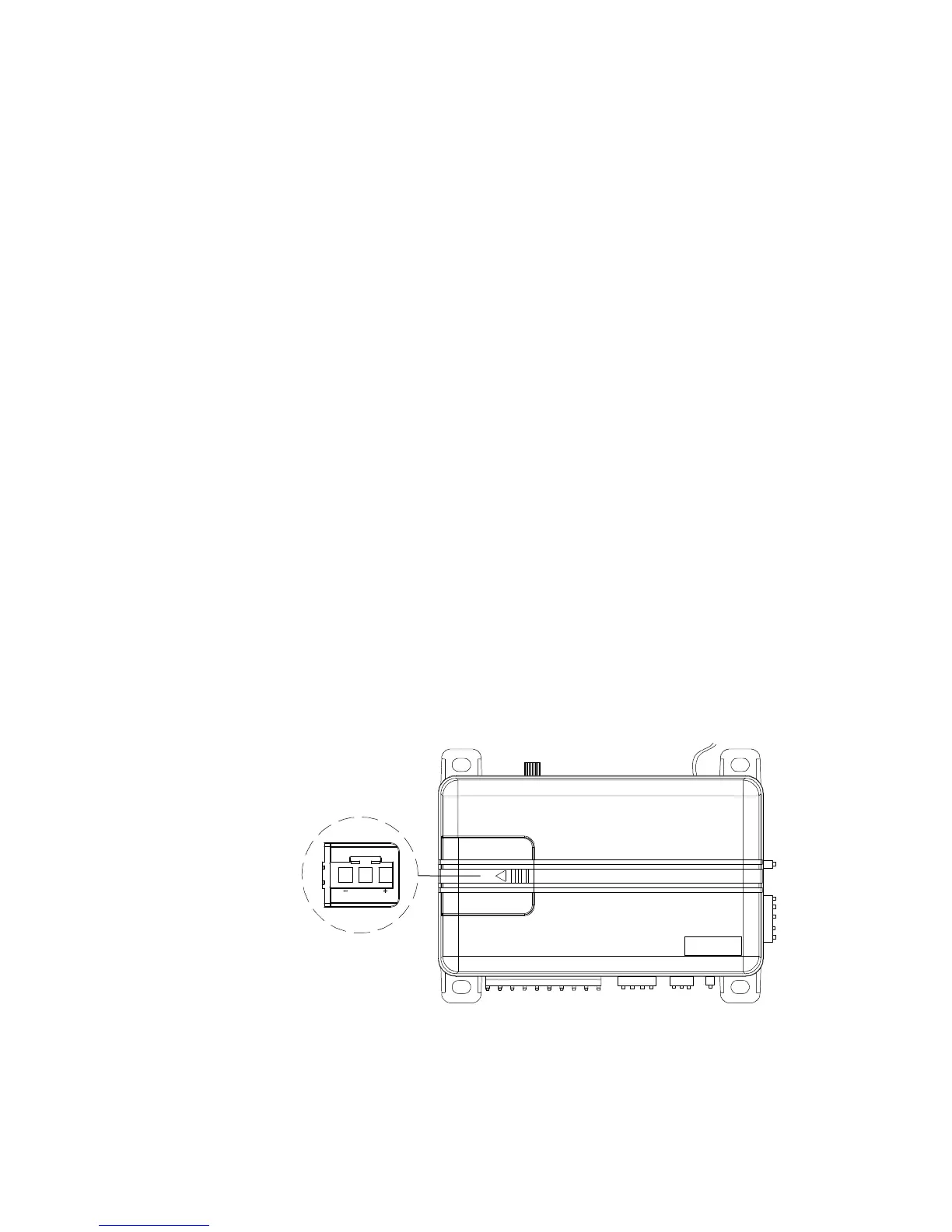

LIGHT FLASH POLARITY
(10A (MAX IMUM) FUSE JUMPER)
Light Flash
Polarity Jumper Detail
Note: Replace fuse with specied resistor value
if connecting to multiplex light circuit
(paying special attention to polarity selection).
[Required connection for both configurations]
