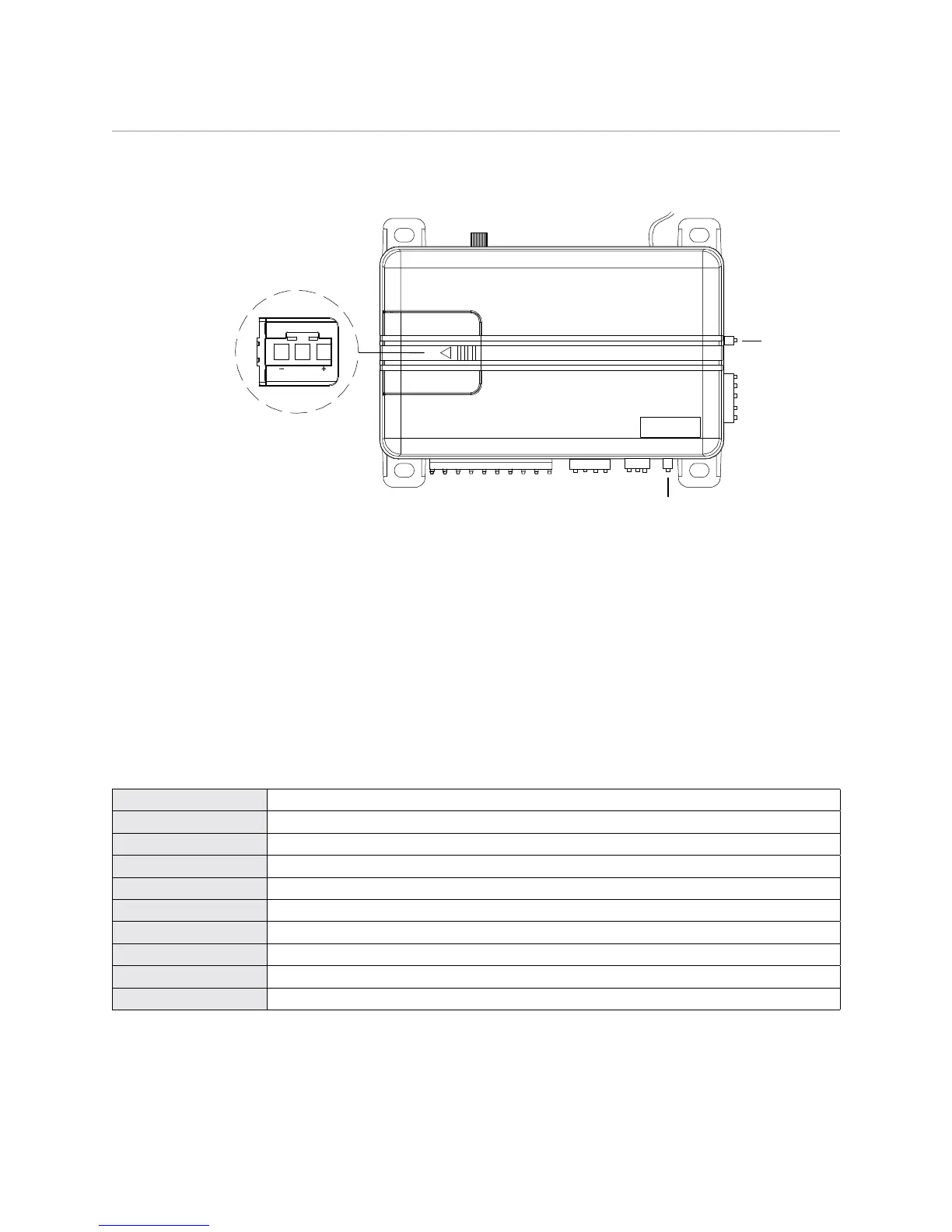

Wiring Diagram
10 Pin Main Harness
BLACK (-) CHASSIS GROUND
RED (+) 12V CONSTANT POWER
WHITE/BLACK LIGHT FLASH RELAY ISOLATION WIRE (87a)
WHITE (+/-) LIGHT FLASH RELAY OUTPUT (30)
YELLOW (+) IGNITION INPUT
RED/WHITE
(-) 200 mA TRUNK POP OUTPUT
BROWN
(-) 200 mA HORN/SIREN OUTPUT
ORANGE
(-) 500 mA GROUND WHEN ARMED OUTPUT
VIOLET
(+) DOOR TRIGGER INPUT
GREEN (-) DOOR TRIGGER INPUT
LIGHT FLASH P OLARITY
(10A (MAXIMUM) FUSE J UMPER)
Sensor
Adjustment
Antenna
(Red Plug)
Programmer Port
Light Flash
Polarity Jumper Detail
(Blue Plug)
Valet/LED Port
