Directed Electronics Viper 350HV - Page 7

©
2005 Directed Electronics, Inc. all rights reserved 7

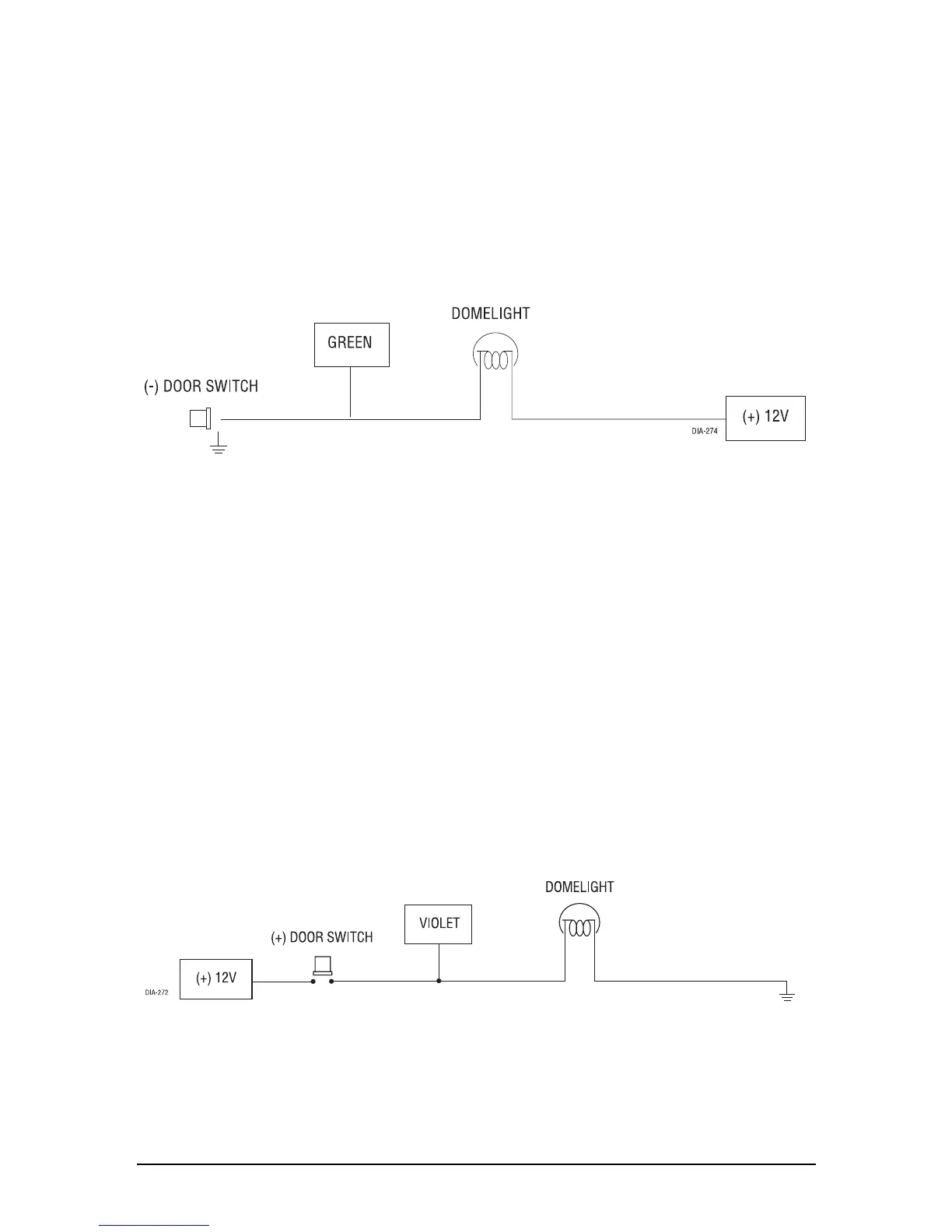

H1/5 GREEN (-) door trigger input
Most vehicles use negative door trigger circuits. Connect the green wire to a wire showing ground
when any door is opened. When connecting to newer model vehicles there is generally a need to use
individual door triggers. See DirectFax document 1076 for wiring instructions. This wire will report
Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6 or the 998T
Bitwriter can be used to turn Bypass Notification off.
H1/6 BLUE (-) instant trigger input
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins
and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/6 blue
instant trigger wire can also be used to shunt sensors during operation of auxiliary channels or remote
start. (See
Bypassing Sensor Inputs section of this guide.)
H1/7 VIOLET (+) door trigger input
This type of dome circuit is used in many Ford products. Connect the violet wire to a wire that shows
(+)12V when any door is opened. This wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6 or the 998T
Bitwriter can be used to turn Bypass Notification off.
