Dirna Minicool Compact - Installation: Internal Fastening; Securing Fastening Supports

dirna, s.a.
22
EN
7a

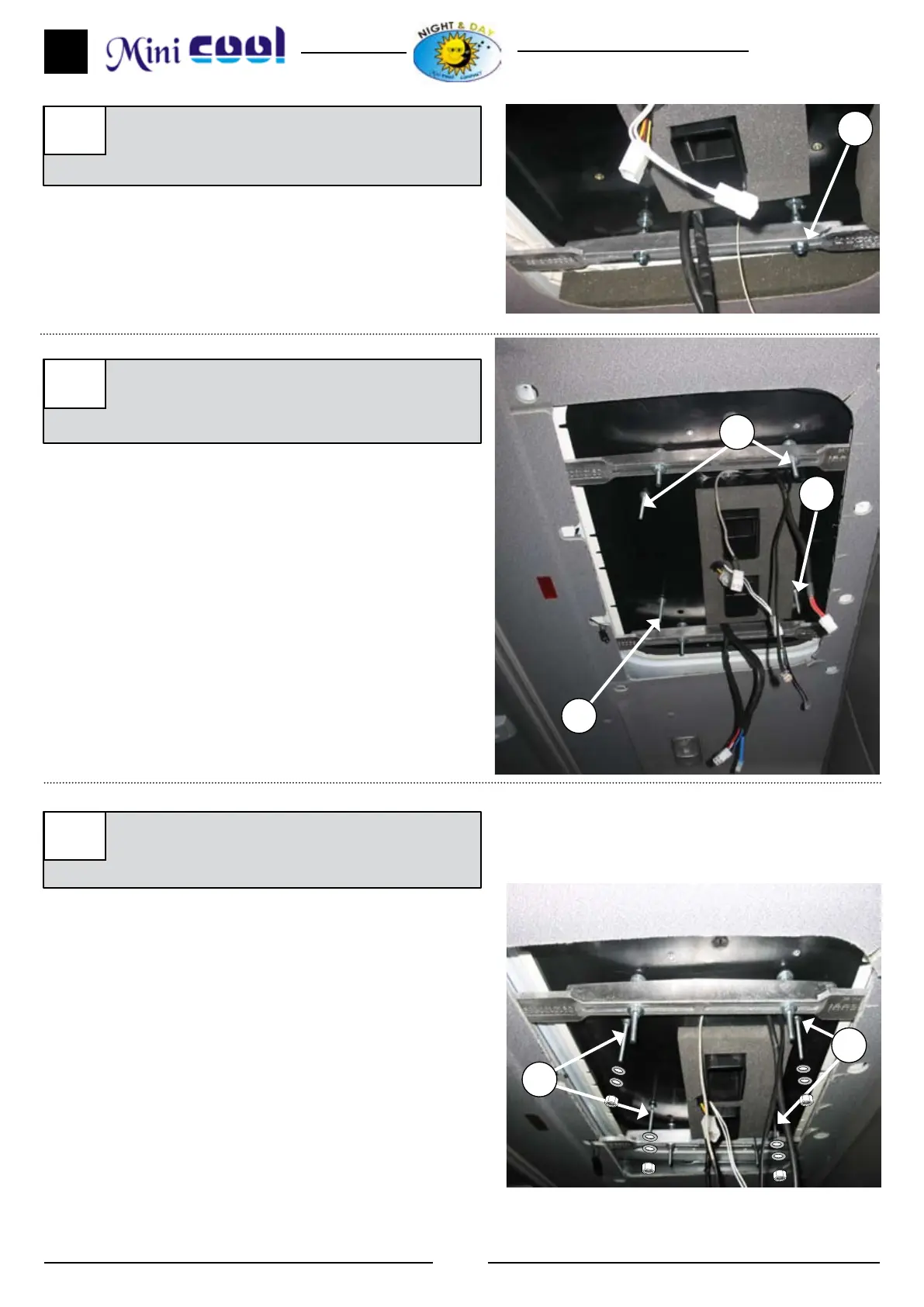

Place (2) fastening supports, with (1) washer
and (1) M8 self-blocking nut, without
tightening.
8
9
Place (1) Ø6 rubber washer, (1) Ø6 wide wing
at washer and (1) M6 nut, on each M6 studs.
Tighten nut.
Screw 10 mm deep (4) M6 x 55 or 80 studs,
where indicated distance (D) in gure point
15.
7a
8
8
9
9
8
