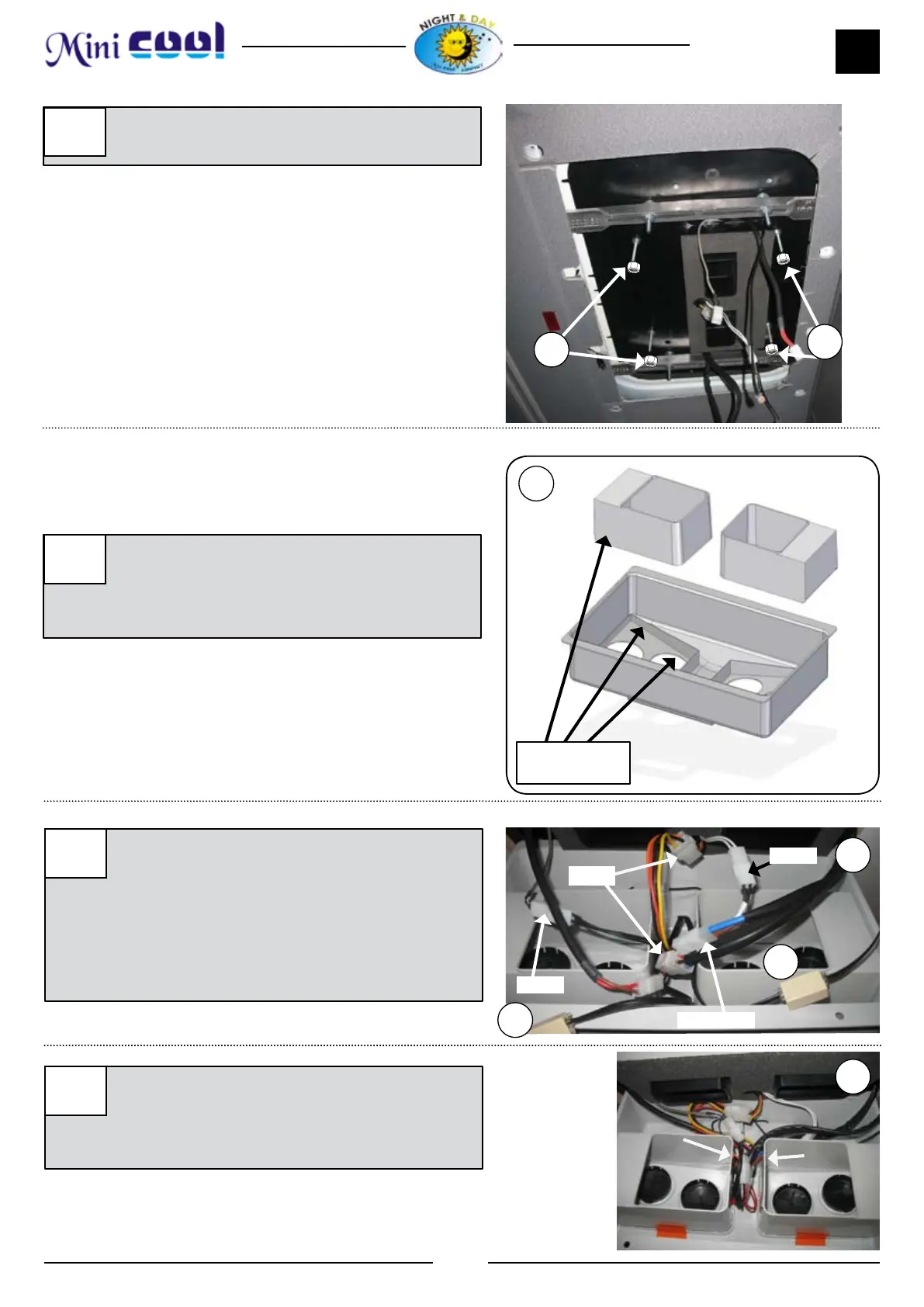

9a
Place (2) fastening supports, with (1) washer
and (1) M6 nut, without tightening.
9b
Glue the two air ducts to front, using
LOCTITE superglue 3 or similar, so that set
assembly is easier and to insure the cold air
ows through the louvers.
9a
9a
9b
9c
9d
Connect (2) communication cables A, the (2)
4-way and (4) 2-way boxes, on the front, with
those of the Minicool.
Bear in mind that the two-way box marked with
white cables is joined to the connector with
white cables that comes out of the central part
of the equipment.
Insert the cables in the hole present on the front
to avoid interfering with the adjustment of the
channelling element with the base of the equip-
ment.
9c
4 w.
2 w. T
2 w.
2 w
9d
A
A
Area where glue
is applied
To Next Page
