Upper
H~~~~~,
Upper Cord
Hook
--
R'
u\
I
Midsection

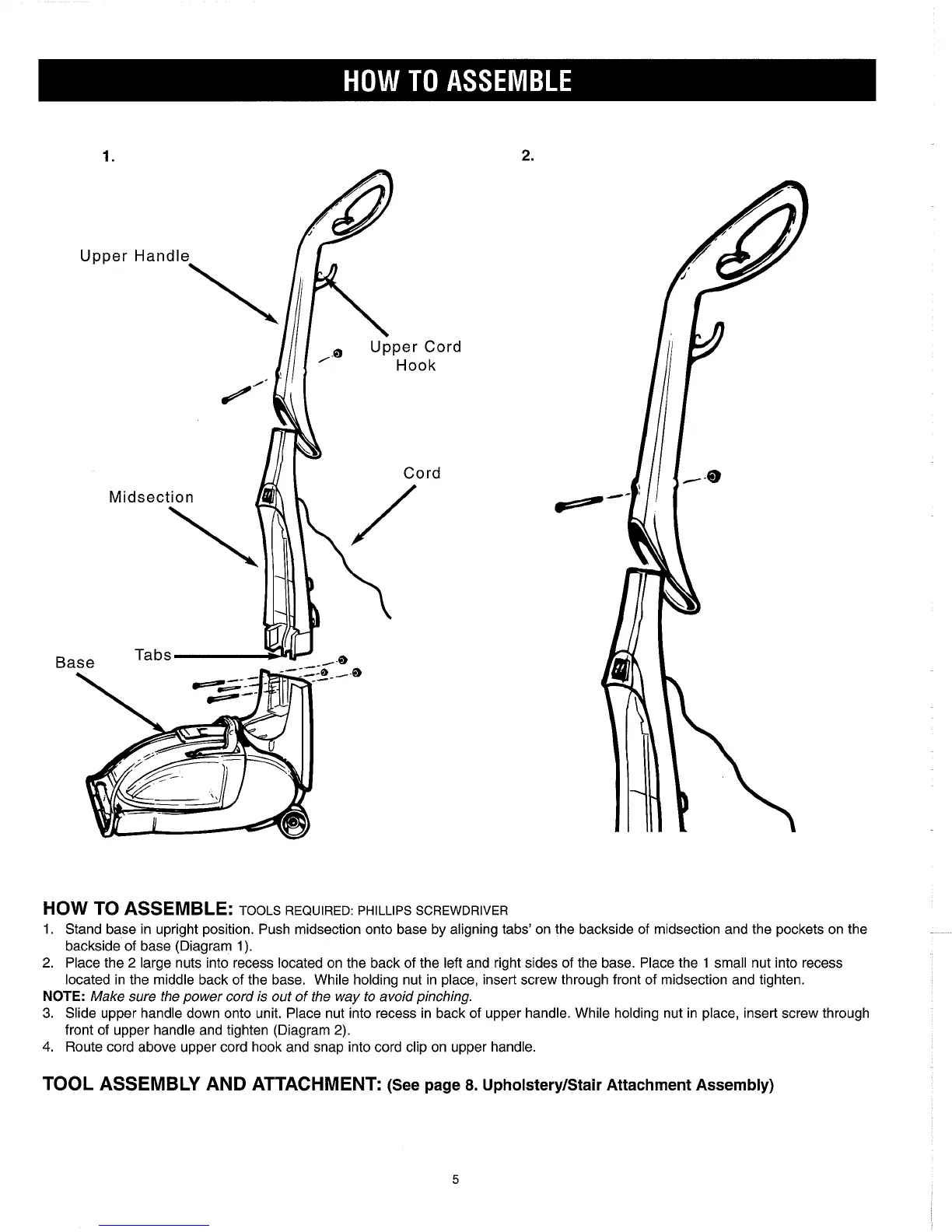

HOW TO ASSEMBLE:
TOOLS REQUIRED: PHILLIPS SCREWDRIVER
1. Stand base in upright position. Push midsection onto base by aligning tabs' on the backside of midsection and the pockets on the
backside of base (Diagram 1).
2.
Place the
2
large nuts into recess located on the back of the left and right sides of the base. Place the 1 small nut into recess
located in the middle back of the base. While holding nut in place, insert screw through front of midsection and tighten.
NOTE:
Make sure the power cord is out of the
way
to avoid pinching.
3.
Slide upper handle down onto unit. Place nut into recess in back of upper handle. While holding nut in place, insert screw through
front of upper handle and tighten (Diagram
2).
4.
Route cord above upper cord hook and snap into cord clip on upper handle.
TOOL ASSEMBLY AND ATTACHMENT: (See page
8.
Upholstery/Stair Attachment Assembly)
