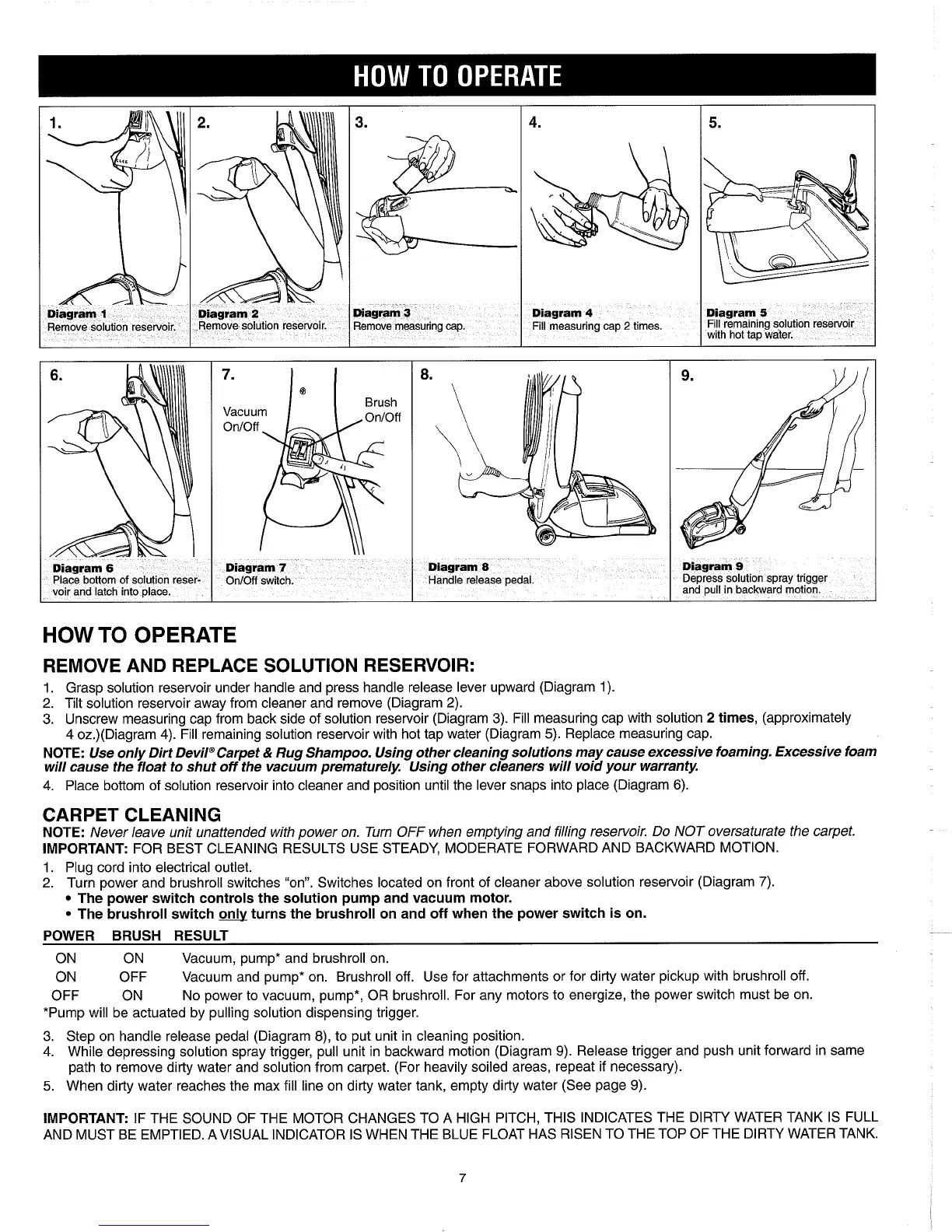

HOW TO OPERATE
REMOVE AND REPLACE SOLUTION RESERVOIR:
1.
Grasp solution reservoir under handle and press handle release lever upward (Diagram
1).
2.
Tilt solution reservoir away from cleaner and remove (Diagram
2).
3. Unscrew measuring cap from back side of solution reservoir (Diagram 3). Fill measuring cap with solution
2
times,
(approximately
4
oz.)(Diagram
4).
Fill remaining solution reservoir with hot tap water (Diagram
5).
Replace measuring cap.
..
-
NOTE:
Use only Dirt DevilmCarpet
&
Rug Shampoo. Using other cleaning solutions may cause excessive foaming. Excessive foam
will cause the float to shut off the vacuum prematurely. Using other cleaners will void your warranty.
4.
Place bottom of solution reservoir into cleaner and position until the lever snaps into place (Diagram
6).
CARPET CLEANING
NOTE:
Never leave unit unattended with power on. Turn OFF when emptying and filling reservoir. Do NOT oversaturate the carpet.
IMPORTANT:
FOR BEST CLEANING RESULTS USE STEADY, MODERATE FORWARD AND BACKWARD MOTION.
1.
Plug cord into electrical outlet.
2.
Turn power and brushroll switches "on". Switches located on front of cleaner above solution reservoir (Diagram
7).
The power switch controls the solution pump and vacuum motor.
The brushroll switch
turns the brushroll on and off when the power switch is on.
POWER BRUSH RESULT
ON ON Vacuum, pump* and brushroll on.
ON OFF
Vacuum and pump* on. Brushroll off. Use for attachments or for dirty water pickup with brushroll off.
OFF ON
No power to vacuum, pump*, OR brushroll. For any motors to energize, the power switch must be on.
*Pump will be actuated by pulling solution dispensing trigger.
3. Step on handle release pedal (Diagram
8),
to put unit in cleaning position.
4.
While depressing solution spray trigger, pull unit in backward motion (Diagram 9). Release trigger and push unit forward in same
path to remove dirty water and solution from carpet. (For heavily soiled areas, repeat if necessary).
5.
When dirty water reaches the max fill line on dirty water tank, empty dirty water (See page 9).
IMPORTANT:
IF THE SOUND OF THE MOTOR CHANGES TO A HIGH PITCH, THIS INDICATES THE DIRTY WATER TANK IS FULL
AND MUST BE EMPTIED. A VISUAL INDICATOR IS WHEN THE BLUE FLOAT HAS RISEN TO THE TOP OF THE DIRTY WATER TANK.
