5
3
6
9
11
7

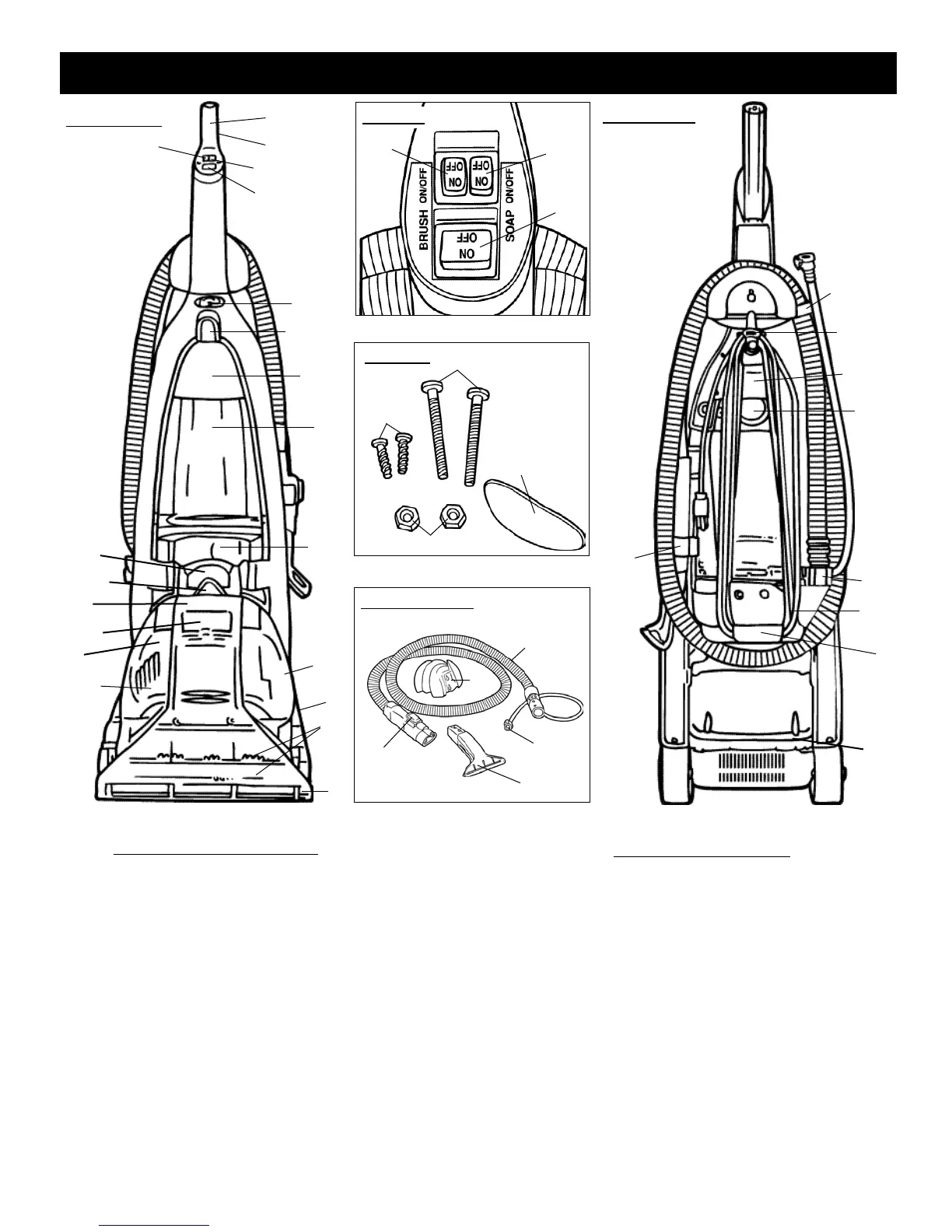

Front V iew
Back View
10
2
5
Front View/ Handle/ Screws
1. Handle Grip
2. Solution Trigger
3. Brush On/Off
4. Soap On/Off
5. Power On/Off
6. Screw Cover
7. Clean Water Reservoir Release
8. Clean Water Reservoir Carry
Handle
9. Clean Water Reservoir
10. Soap Tank
11. Drain Cap
Back View/Attachments
24. Detachable Tool Storage
25. Hose
26. Water Supply Connector
27. Upholstery Tool (may come
pre-attached)
28. Upholstery Tool Trigger
29. Solution/Hose Clip
30. Quick Cord Release
31. Cleaner Carrying Handle
32. Clean Water Reservoir Cap
33. Hose Clips
34. Cord
35. Cord Wrap
36. Handle Release Pedal
1
FEATURES
29
8
12
Attachments
Screws
Handle
12. Water Supply Port
13. Dual Brushrolls
14. Front Nozzle
15. Dirty Water Tank
16. Floor/Tools Diverter
17. Attachment Door
18. Dirty Water Tank Handle
19. Dirty Water Tank Nozzle Tab
20. Dirty Water Tank Latch
21. Front Handle Screws (Large)
22. Back Handle Nuts
23. Back Handle Screws (Small)
13
14
3
4
5
15
16
17
18
20
19
6
21
22
23
24
25
26
27
28
33
4
30
31
32
33
34
35
36
