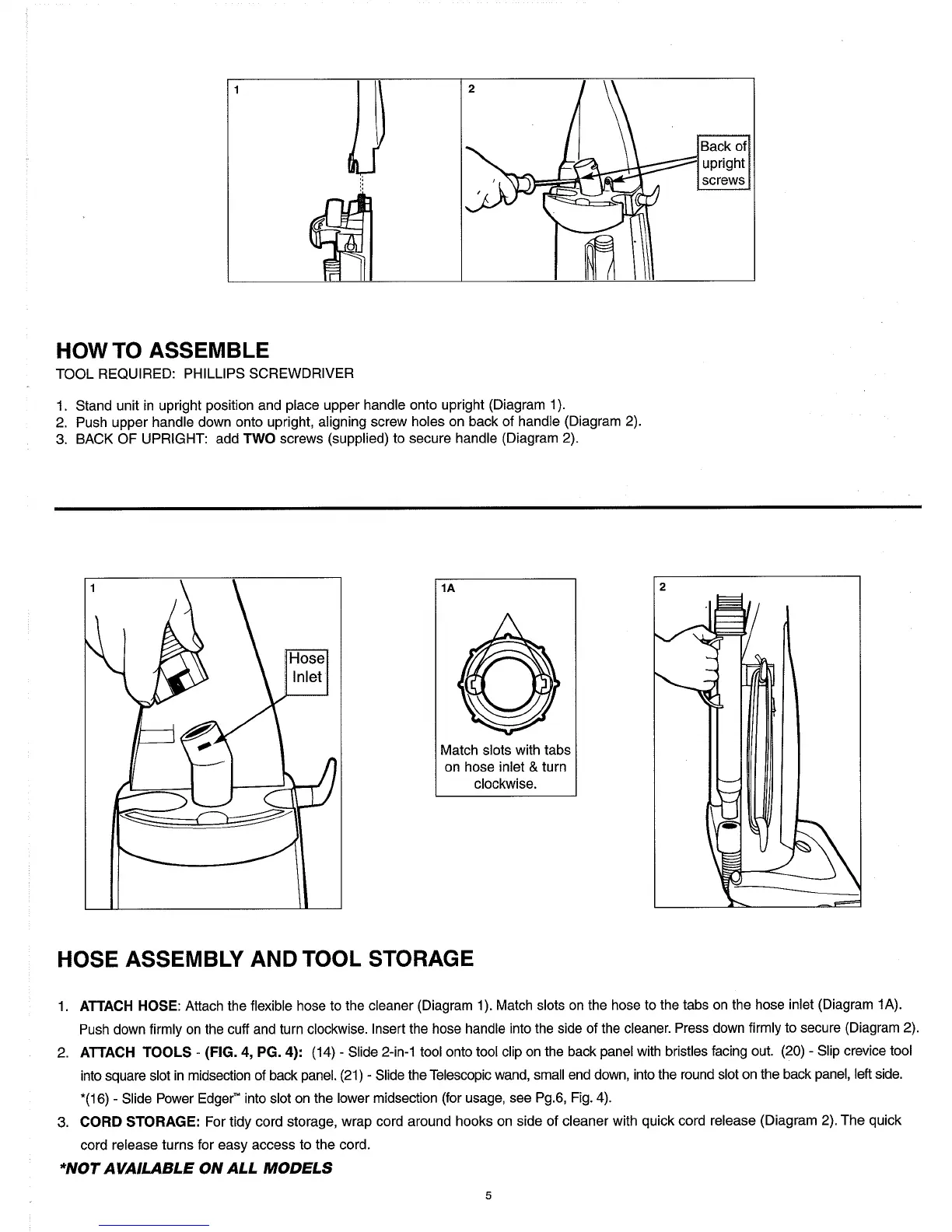

HOW TO ASSEMBLE
TOOL REQUIRED: PHILLIPS SCREWDRIVER
1. Stand unit in upright position and place upper handle onto upright (Diagram 1).
2. Push upper handle down onto upright, aligning screw holes on back of handle (Diagram 2).
3.
BACK OF UPRIGHT: add TWO screws (supplied) to secure handle (Diagram 2).
Match slots with tabs
on hose inlet &turn
clockwise.
HOSE ASSEMBLY AND TOOL STORAGE
1. ATTACH HOSE: Attach the flexible hose to the cleaner (Diagram 1). Match slots on the hose to the tabs on the hose inlet (Diagram IA).
Push down firmly on the cuff and turn clockwise. Insert the hose handle into the side of the cleaner. Press down firmly to secure (Diagram 2).
2. ATTACH TOOLS
-
(FIG.
4,
PG.
4):
(14)
-
Slide 2-in-1 tool onto tool clip on the back panel with bristles facing out.
(20)
-
Slip crevice tool
into square slot in midsection of back panel. (21)
-
Slide the Telescopic wand, small end down, into the round slot on the back panel, left side.
*(16)
-
Slide Power Edger" into slot on the lower midsection (for usage, see Pg.6, Fig. 4).
3.
CORD STORAGE: For tidy cord storage, wrap cord around hooks on side of cleaner with quick cord release (Diagram 2). The quick
cord release turns for easy access to the cord.
*NOT AVAILABLE ON ALL MODELS
