Discovery Telecom MINDBLOWN - Piano - Manual Control; Piano - Magnetic Switch; Piano - Water Droplet; Piano Functionality with LEDs

CIRCUITRY KEYBOARD
ELECTRONIC CIRCUIT EXPERIMENT KIT
Piano
24
Turn on the Main Switch. The piano is ready to
play.

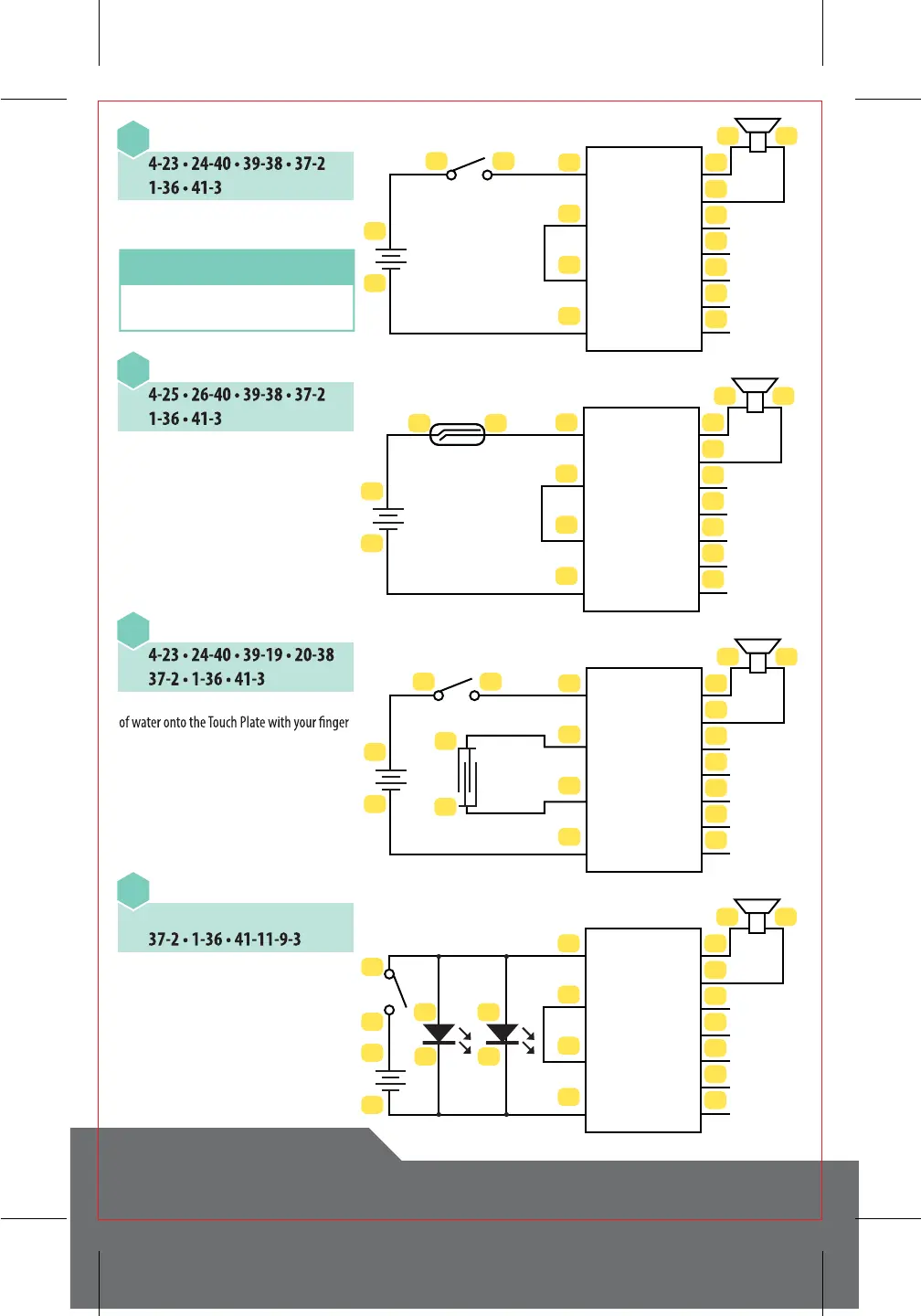

Piano - Magnetic Switch
25
Activate the Reed Switch with the Magnet and
the piano can be played.
Piano - Water Droplet
26
Turn on the Main Switch. Place a small droplet
and the piano will be ready to play.
Piano with LEDs
4-23 • 24-10-12-40 • 39-38
27
Slide the Main Switch to “on”. The LEDs will
light up and the piano is ready to play.
DID YOU KNOW?
The piano includes two full octaves (8 notes
each). Middle C is the 8th key from the left.
