11
Wiring Harness
1) +12 Volt Input
2) Ground Input
3) Ground input
4) AUX Ground output
5) AUX Ground output
6) Vehicle Ignition
7) Constant +12 Volts
8) Chassis Ground
5. Radio Module Location
The MARCUS
®
3G Radio Module placement is dependant on several factors.
- the type of vehicle
- the placement of the antennas
- the availability of a constant 12 volt power supply
5.1 Radio Module Location
In most vehicles, the module can be
placed inside or underneath the
dashboard. The vehicle’s radio can be
removed and the unit placed behind
the radio. A kick plate can be
removed, and the unit can be safely
secured to a firewall or zip-tied onto a
permanent fixture. The module can be
secured underneath the dashboard on
either the driver or passenger side, in
any location that will not interfere with
the safety of vehicle operation. The
device can be secured by the included
Tie Wraps or by self taping screws or
Velcro tape.

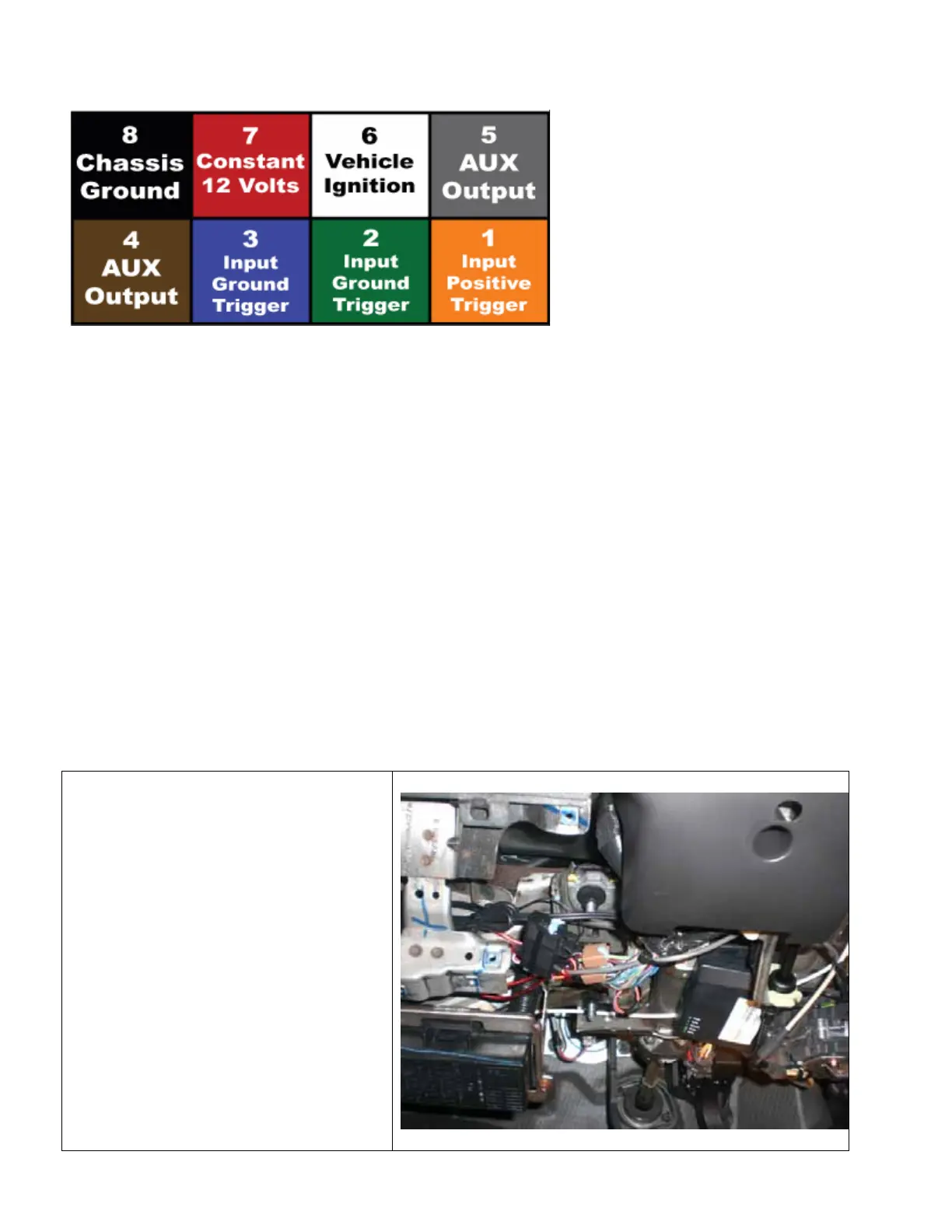

5.1 Picture - Example Placement
of MARCUS
®
Radio Module inside
dashboard
5.4.1 Figure – MARCUS
®
3G
Rev W2 Radio Connector Pin
Layout, as viewed from back of
plug
