Chapter 4
Page 96
Dish Antenna Installation

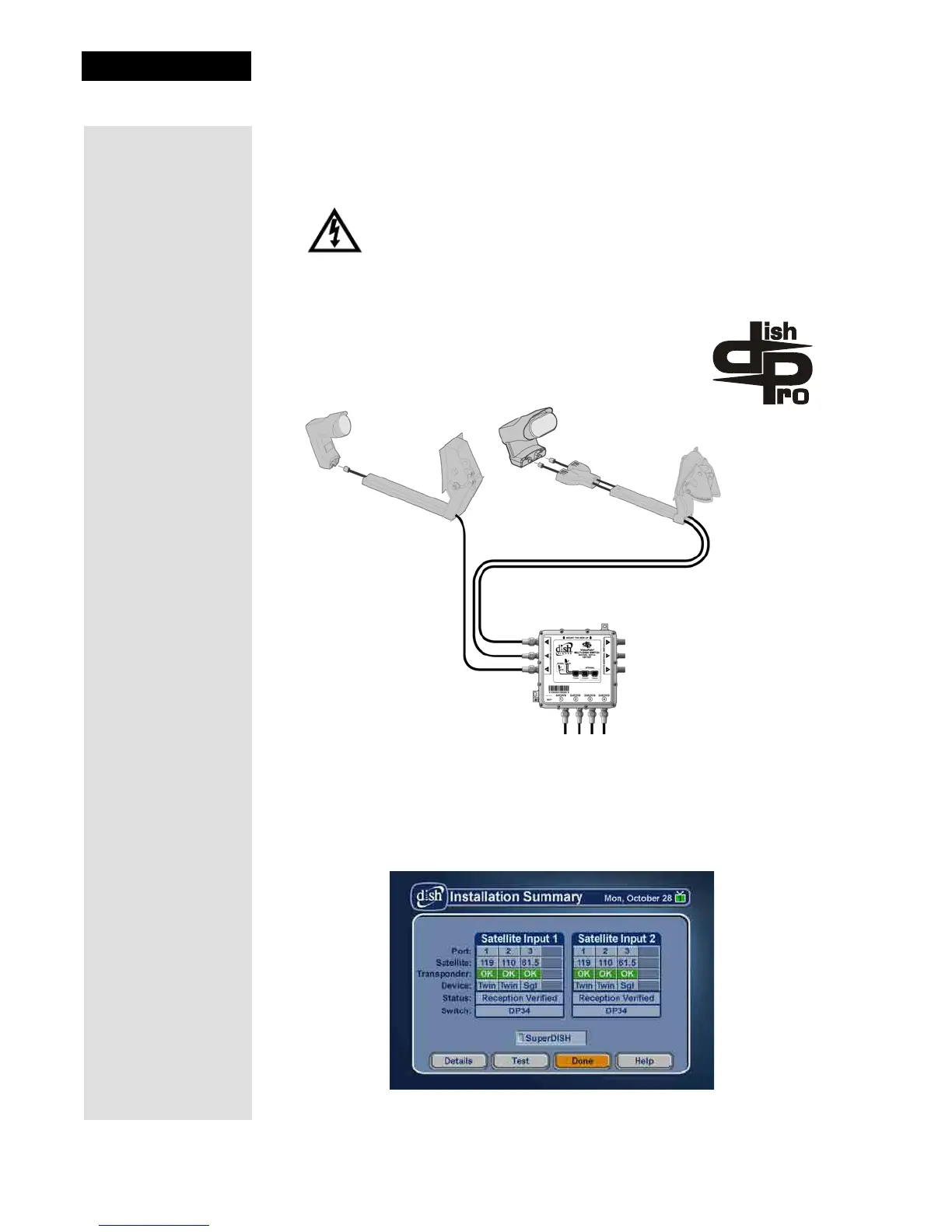

DISH 500 with a DISH Pro Twin LNBF, One DISH 300 with a DISH
Pro LNBF, DP34 Switch
When you set up your system following this diagram and run Check Switch the
Installation Summary screen should look similar to the one shown below.
This diagram leaves out grounding to be clear. Make sure
you ground the system per the National Electrical Code
(NEC) and all local electrical codes.
To four DISH Pro
Receivers or two DISH
Pro Plus Receivers
To Next Page
