Chapter 4
Page 98
Dish Antenna Installation

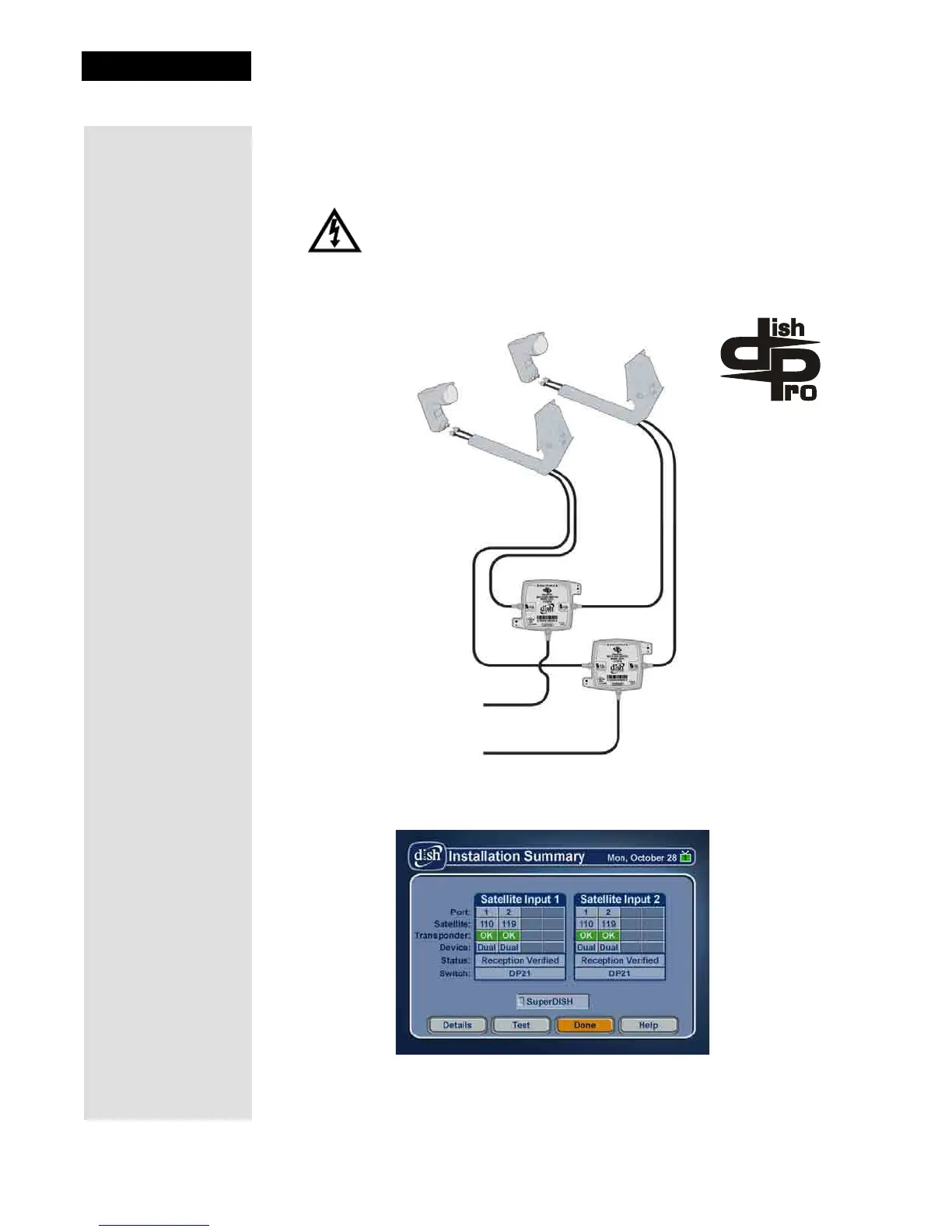

Two DISH 300s, Two DISH Pro Dual LNBFs, Two DISH Pro 21
Switches
When you set up your system following this diagram and run Check Switch the
Installation Summary screen should look similar to the one shown below.
This diagram leaves out grounding to be clear. Make sure
you ground the system per the National Electrical Code
(NEC) and all local electrical codes.
