Dish Network DISH 500 - Diagram 9. 110°, 119°, & 129° (DISH 1000) with Wing Dish

Installation Diagrams - Diagram 9. 110°, 119°, & 129° (DISH 1000) with Wing Dish 3 - 12

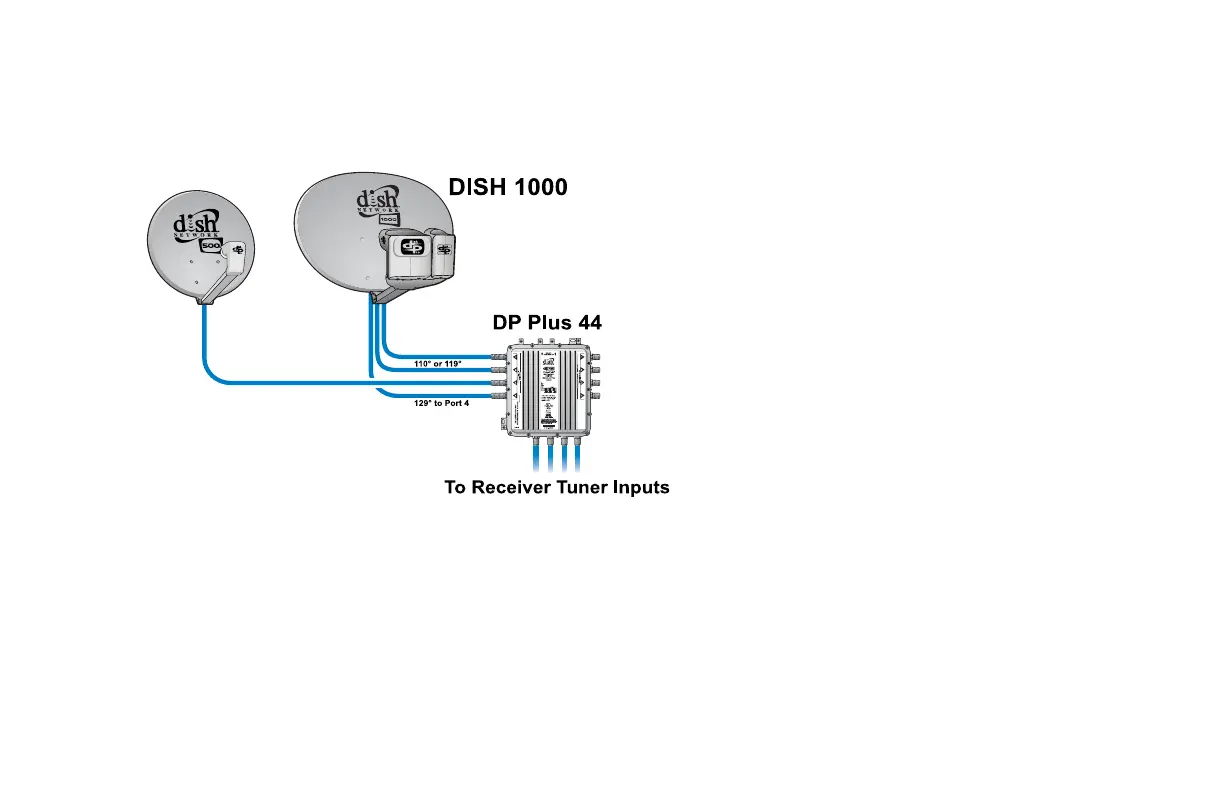

Diagram 9. 110°, 119°, & 129° (DISH 1000) with Wing Dish
Uses DISH Pro Twin, DISH Pro Duals, and DISH Pro Plus 44
• Each DP Plus 44 Switch requires a
Power Inserter on T
O POWER INSERTER
P
ORT 1.
• Single-cable/dual-tuner receiver
installations require a DP Plus
Separator.
• The LNBF used on the wing dish must
be DP compatible.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
