Dish Network DISH 500 - Diagram 10. 110°, 119°, & 129° (DISH 1000.2) with Wing Dish

Installation Diagrams - Diagram 10. 110°, 119°, & 129° (DISH 1000.2) with Wing Dish 3 - 13

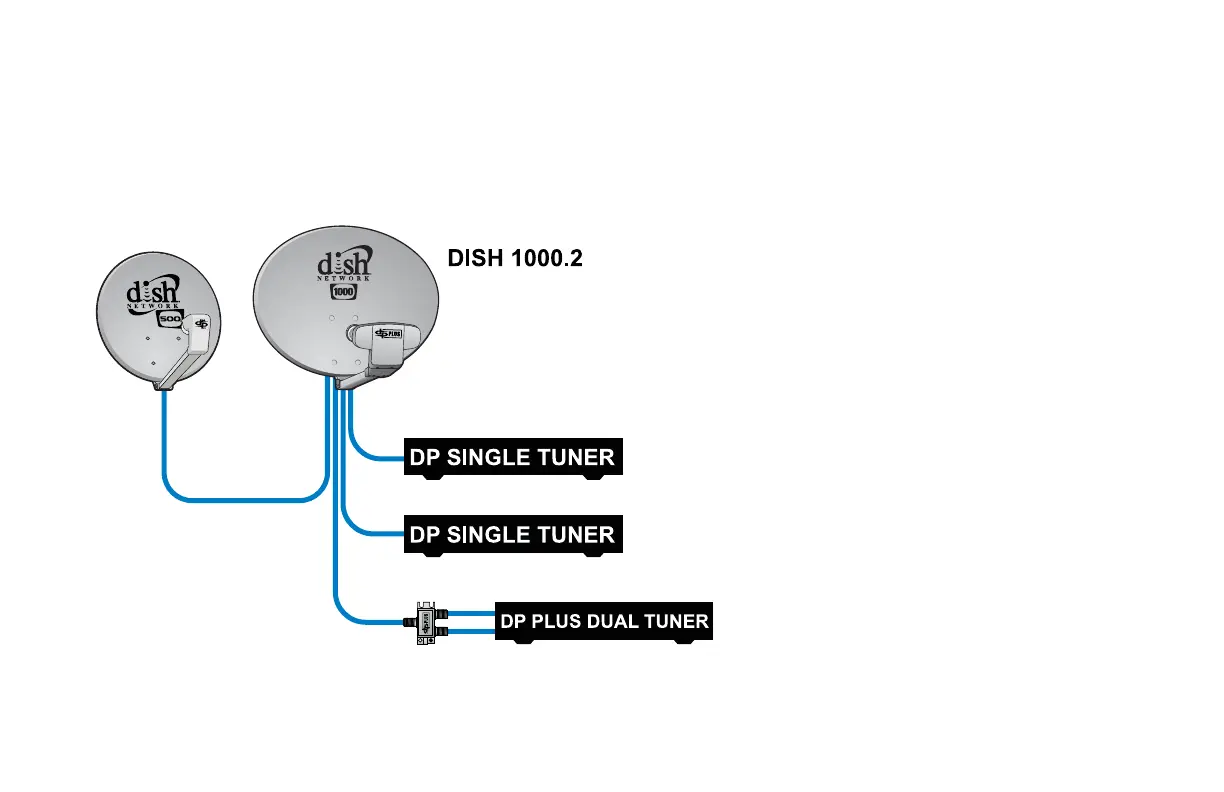

Diagram 10. 110°, 119°, & 129° (DISH 1000.2)
with Wing Dish
Uses DP Plus 1000.2 LNBF and DISH Pro Dual or Single
Or Legacy Receiver
• Single-cable/dual-tuner receiver
installations require a DP Plus Separator.
• A Legacy receiver installation must also
include at least one DP or DP Plus receiver.
• The LNBF used on the wing dish must be
DP compatible.
• Maximum cable length between the wing
dish and the DPP 1000.2’s LNB I
N port is 80
feet.
• Grounding according to the National Electric
Code (NEC) and all local electrical codes is
required.
