Installation Diagrams - Diagram 17. Single Orbital Location Dish 3 - 20

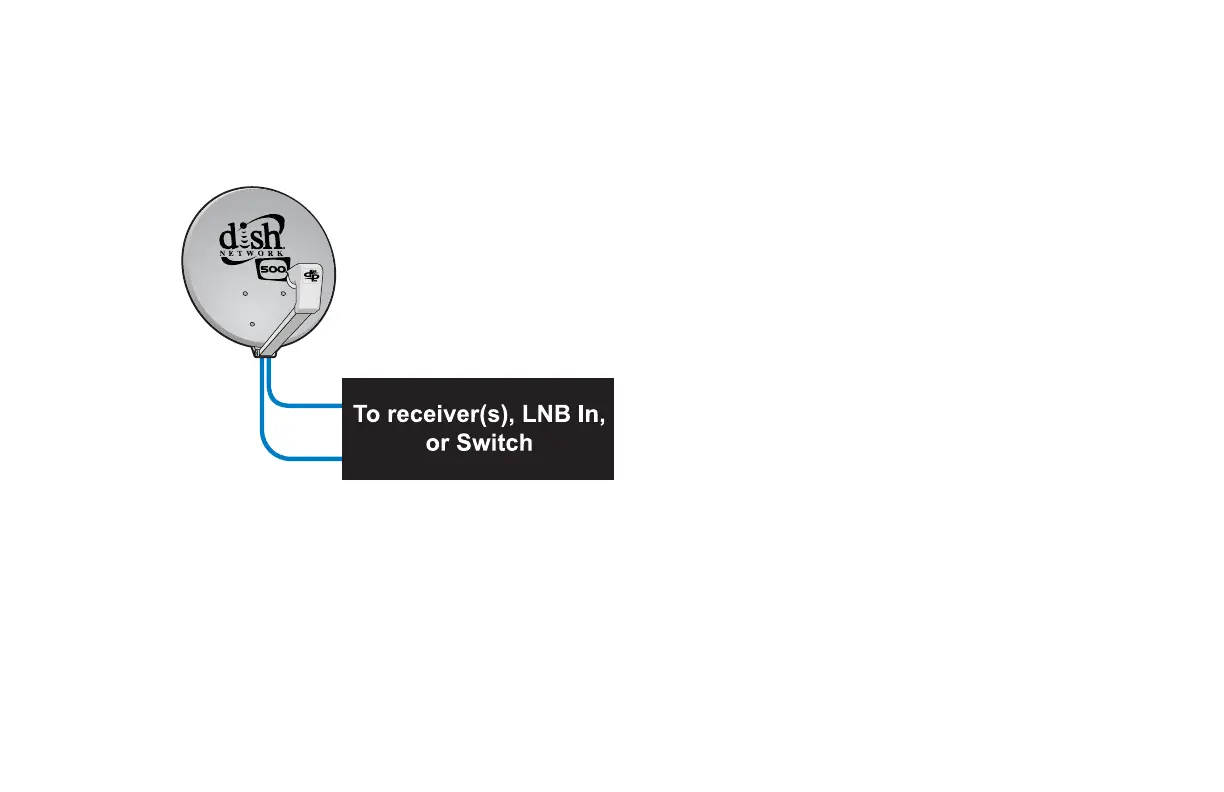

Diagram 17. Single Orbital Location Dish
• Ensure that the LNBF uses the same
technology (either Legacy or DISH
Pro/DISH Pro Plus) as other LNBFs/
switches in the installation.
• When using a DISH 500, use an
I-Bracket, instead of a Y-Bracket, for
single orbital locations.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
