Dish Network DISH 500 - Diagram 16. 61.5°, 72.7°, & 77° (1000.4 Assembly)

Installation Diagrams - Diagram 16. 61.5°, 72.7°, & 77° (1000.4 Assembly) 3 - 19

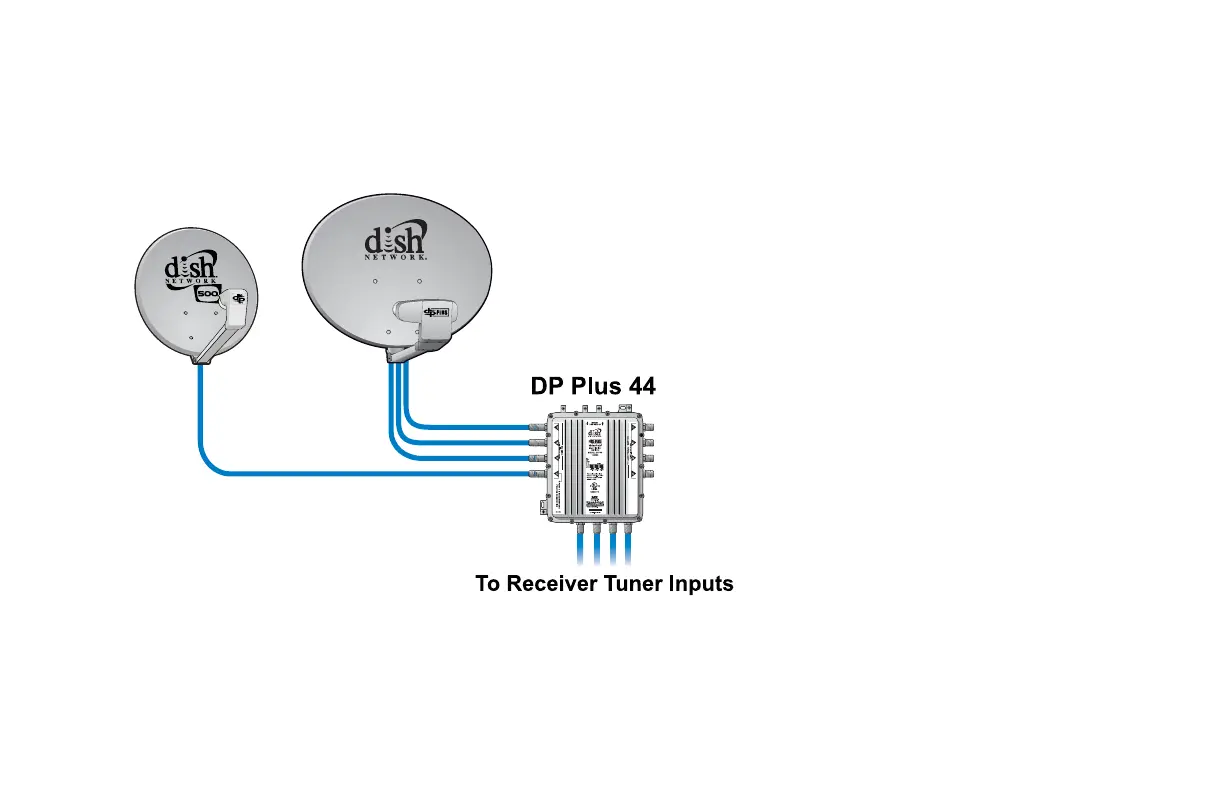

Diagram 16. 61.5°, 72.7°, & 77° (1000.4 Assembly)
Uses DP Plus 1000.4 LNBF and DISH Pro Plus 44
• Each DP Plus 44 Switch requires a
Power Inserter on T
O POWER
I
NSERTER PORT 1.
• Single-cable/dual-tuner receiver
installations require a DP Plus
Separator.
• The LNBF used on the wing dish
must be DP compatible.
• Grounding according to the
National Electric Code (NEC) and
all local electrical codes is required.
