Dish Network DISH 500 - Diagram 15. 61.5°, 72.7°, & 77° (1000.4 Assembly)

Installation Diagrams - Diagram 15. 61.5°, 72.7°, & 77° (1000.4 Assembly) 3 - 18

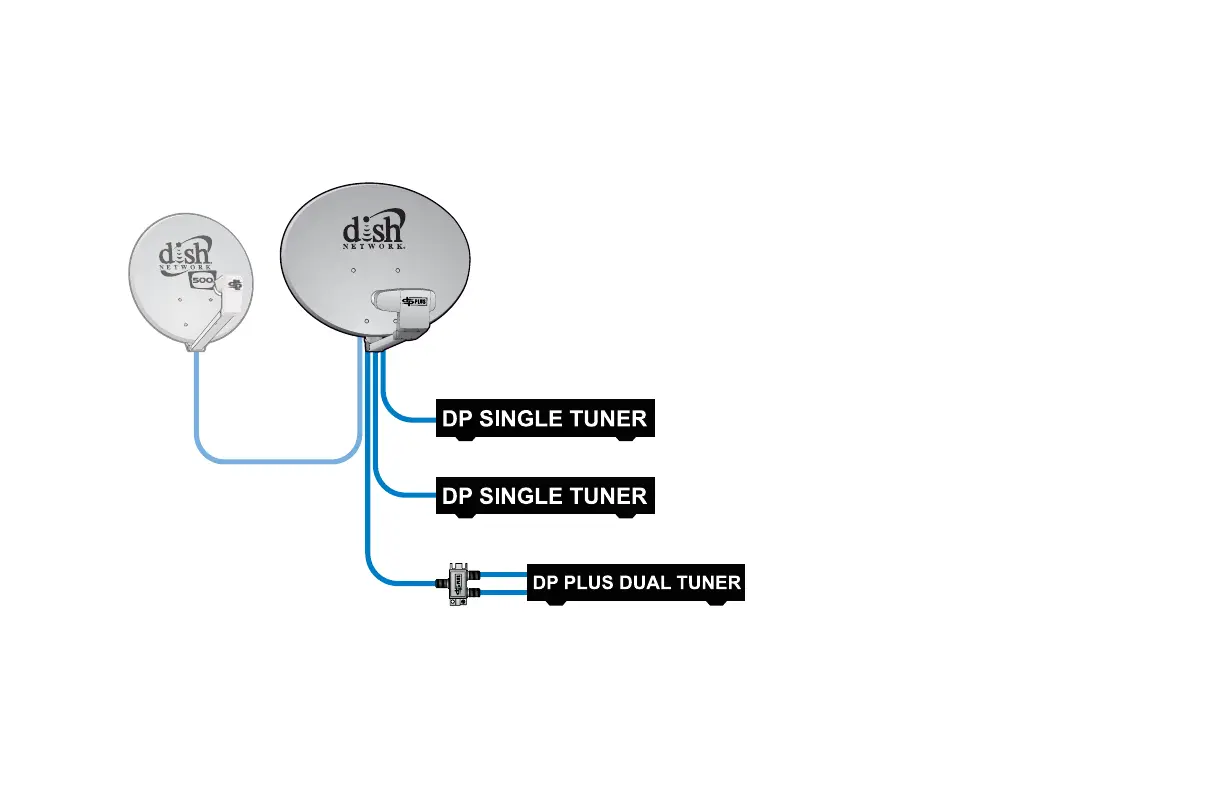

Diagram 15. 61.5°, 72.7°, & 77° (1000.4 Assembly)
Uses DP Plus 1000.4 LNBF
• Single-cable/dual-tuner receiver
installations require a DP Plus
Separator.
• The LNBF used on the optional
wing dish must be DP compatible.
• Maximum cable length between
the wing dish and the DPP
1000.4’s LNB I
N port is 80 feet.
• Wing dish can be 500+ with
118.7° only fed to input.
• Grounding according to the
OPTIONAL
