Dish Network DISH 500 - Diagram 3. 110° & 119° (DISH 500) with Wing Dish

Installation Diagrams - Diagram 3. 110° & 119° (DISH 500) with Wing Dish 3 - 6

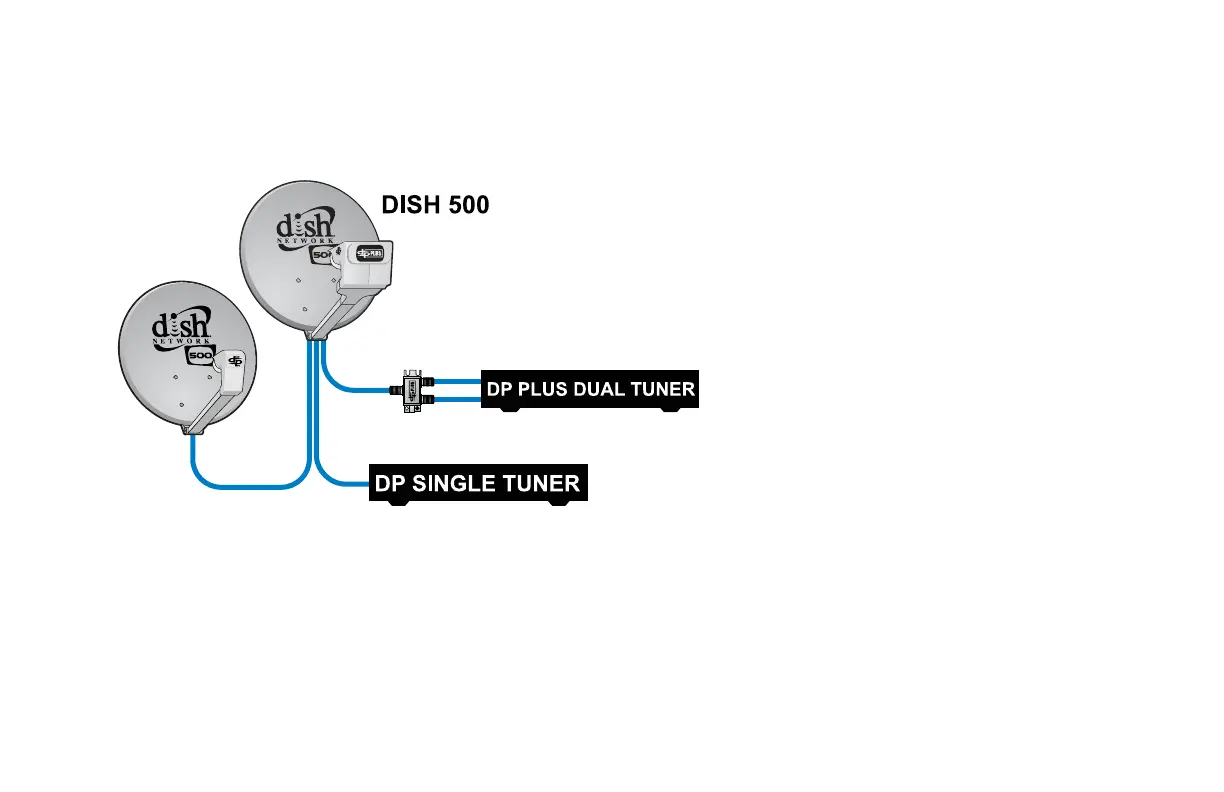

Diagram 3. 110° & 119° (DISH 500) with Wing Dish
Uses DISH Pro Plus Twin and DISH Pro Dual or Single
Or Legacy Receiver
• Single-cable/dual-tuner receiver
installations require a DP Plus
Separator.
• Must have a DP or DPP receiver
connected for viewing three orbital
locations.
• Single Legacy receiver installations are
not supported; installations with two
Legacy receivers cannot view the third
orbital location.
• The LNBF used on the wing dish must
be DP compatible.
• Maximum cable length between the
wing dish and the DPP Twin’s LNB I
N
port is 80 feet.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
