Dish Network DISH 500 - Diagram 2. 110° & 119° (DISH 500)

Installation Diagrams - Diagram 2. 110° & 119° (DISH 500) 3 - 5

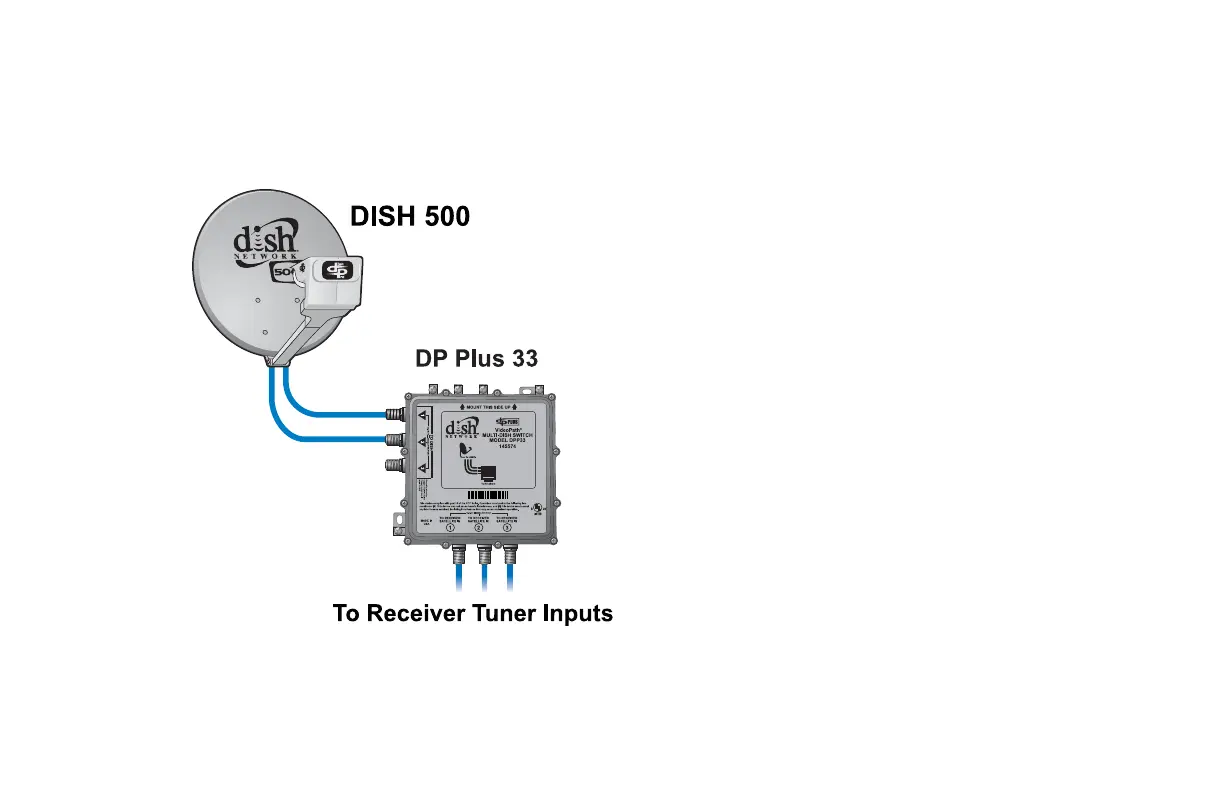

Diagram 2. 110° & 119° (DISH 500)
Uses DISH Pro Twin and DISH Pro Plus 33
• A DP34 Switch is also an option if you
don’t require a single-cable/dual-tuner
installation. See the DP34 Switch for
connectivity details.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
