Dish Network DISH 500 - Diagram 1. 110° & 119° (DISH 500)

Installation Diagrams - Diagram 1. 110° & 119° (DISH 500) 3 - 4

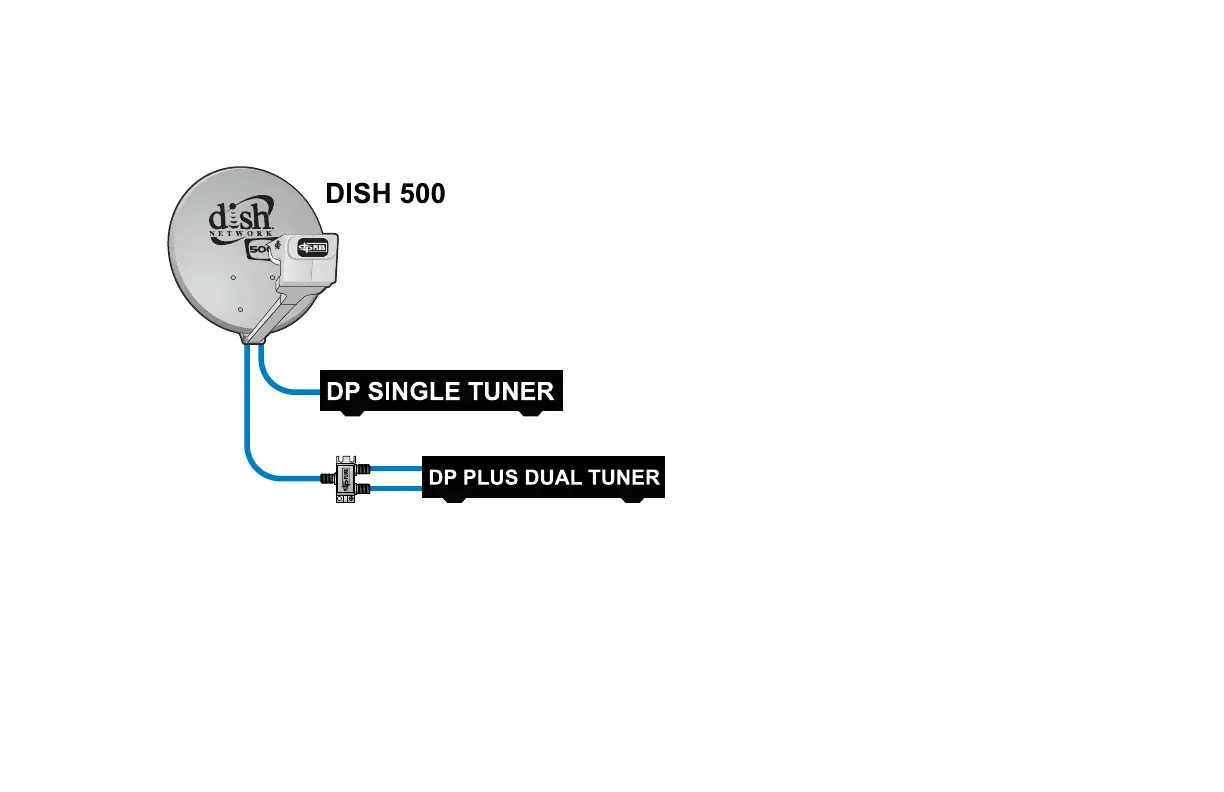

Diagram 1. 110° & 119° (DISH 500)
Uses DISH Pro Plus Twin
Or Legacy Receiver
• Single-cable/dual-tuner receiver
installations require a DP Plus
Separator.
• Single Legacy receiver installations are
not supported.
• Installations with two Legacy receivers
cannot view the third orbital location.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
