Dish Network Dish Pro 34 - DISH 500 with Single Dish Pro Twin LNBF

Page 10
Wiring Diagrams

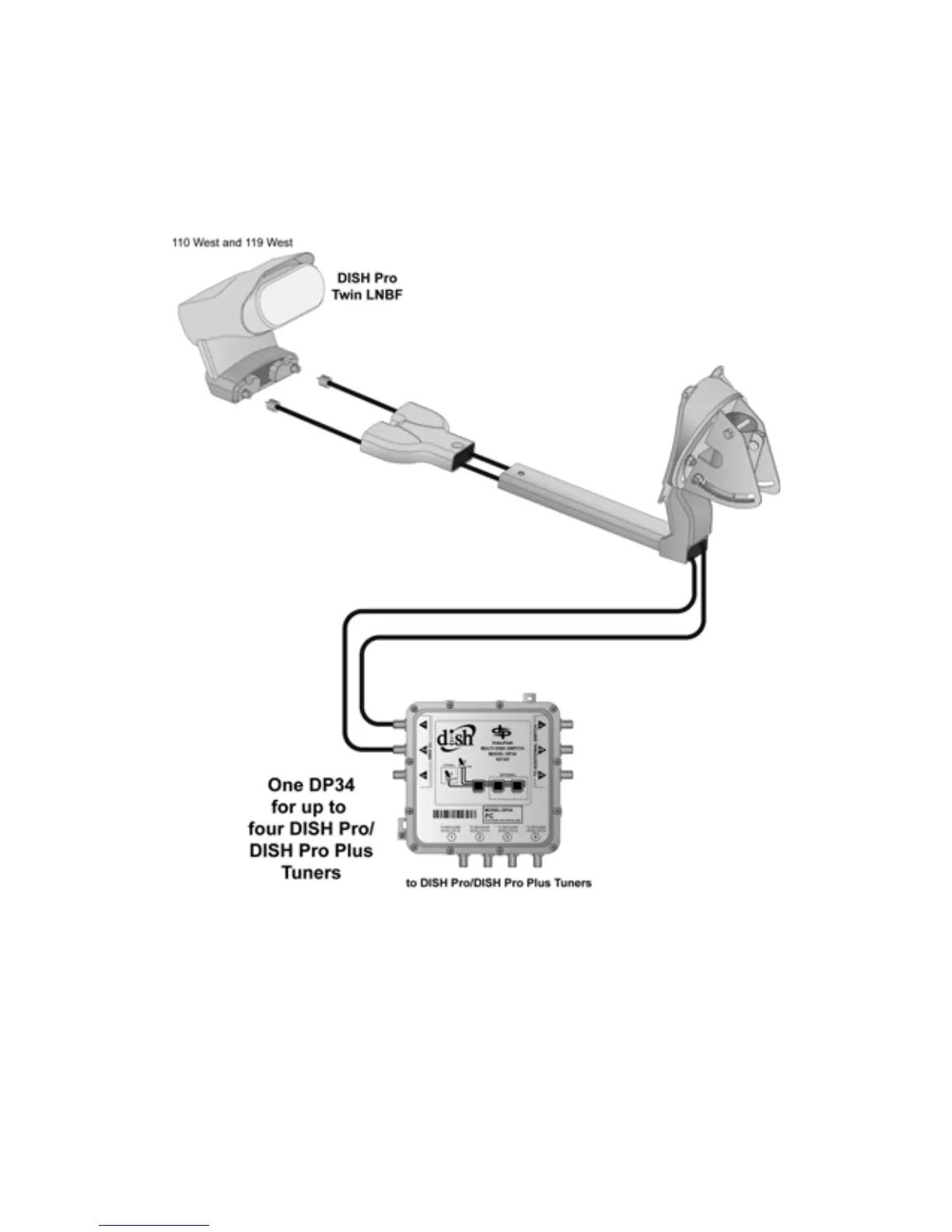

DISH 500 with DISH Pro Twin LNBF and a
DP34 Switch
Connect both ports (connections) on the DISH Pro Twin LNBF to
any two ports on the DP34 Switch that are marked
TO DISH. Make
sure there is no more than 200 feet of cable between the LNBF and
the receiver(s).
