Distech Controls ECL-PTU-207 Installation Guide

4 / 21

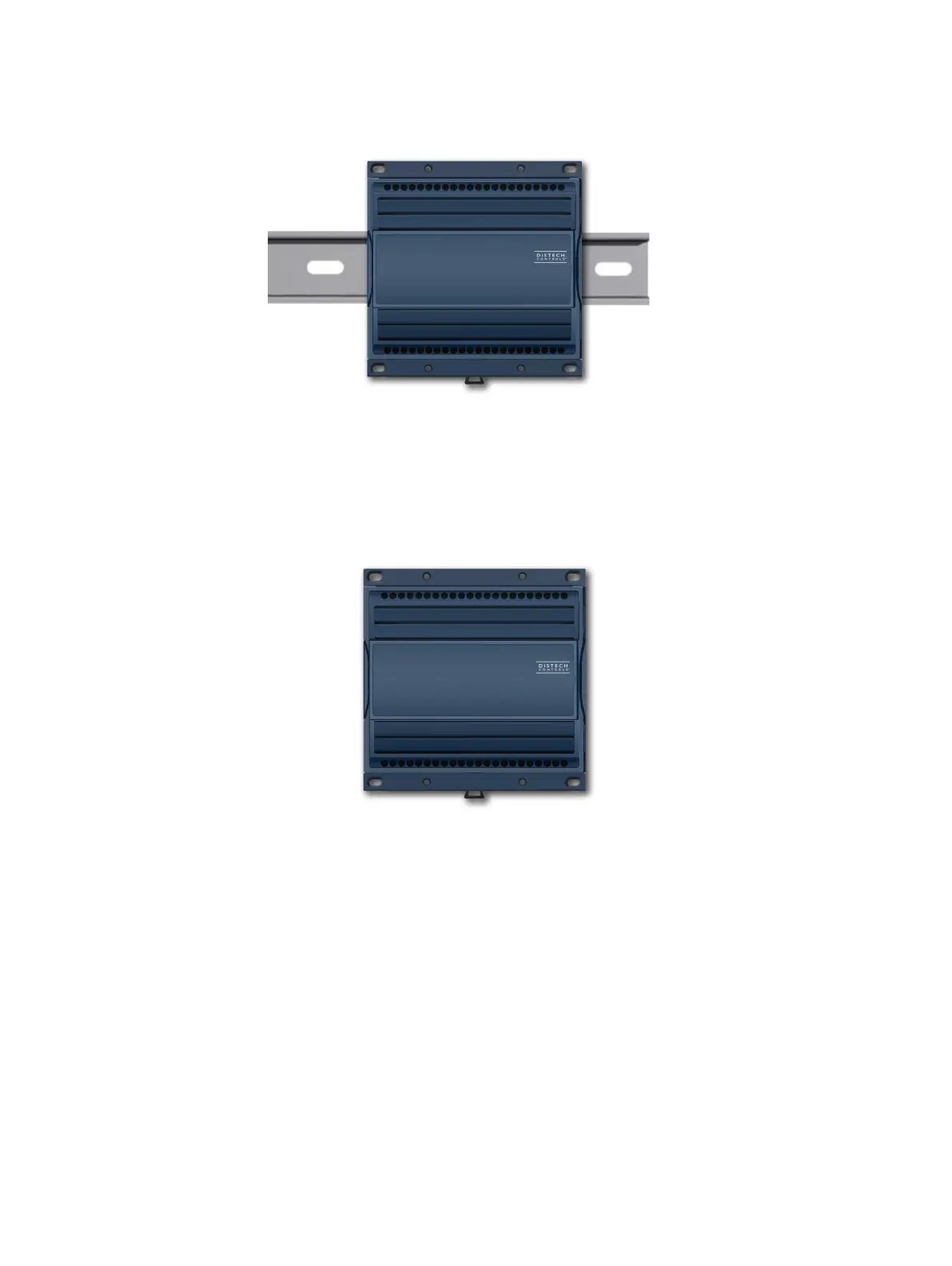

DIN Rail-Mounted Installation
1. Ensure the DIN rail is properly mounted on the wall.
2. Simply clip controller onto the DIN rail.
Figure3: DIN-rail mounted controller
Wall-Mounted Installation
1. Use the mounting holes to mark the location of any holes that need to be drilled.
2. Drill the holes.
3. Clean the surface and mount the controller using the appropriate screw types.
Figure4: Wall-mounted controller

Distech Controls ECL-PTU-207 Specifications

General

Brand	Distech Controls
Model	ECL-PTU-207
Category	Controller
Language	English
