Using the Reset Button
The reset button is located under the controller’s cover. Depending on the amount of time the reset button is held down, different actions are taken by the
controller. The STATUS LED will turn off after each time interval.
SUBNET
HOST
POWER
SEC
PRI
INPUTS
RESET
OUTPUTS

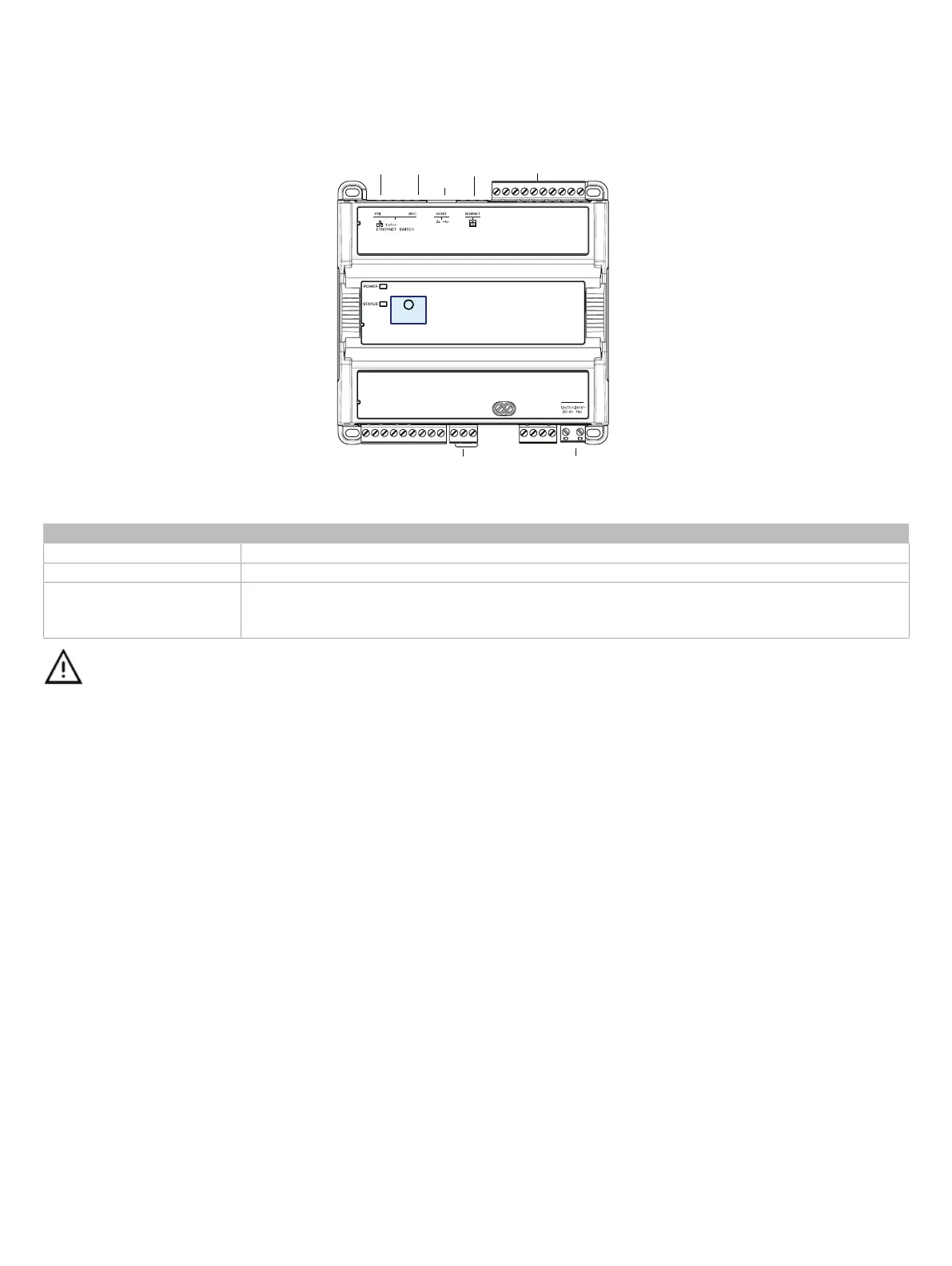

Figure12: Reset button location
Hold Reset For To
5 seconds Restart / reboot the controller.
10 seconds Reset both Ethernet and Wi-Fi IP addresses back to factory default settings.
20 seconds Reset the controller to its factory default settings. User accounts (user names and passwords) will also be reset to the
factory default settings and the controller license will be cleared.
If FIPS has been enabled on the controller, this will turn FIPS off.
Always backup the controller's license through the controller's Web interface before you hold the controller’s
reset button for 20 seconds. Once the controller reboots, you will have to install the license through the
controller's Web interface.
After you hold the controller’s reset button for 20 seconds, the controller’s HTTPS security certificates will be
regenerated. If you use HTTPS to connect to the controller, you will no longer be able to connect to the controller
from any PC that was used in the past to connect to the controller unless you delete the old HTTPS security
certificate from these PCs.
Complementary Information
£ This device is designed for type 1 action
£ This device is designed for type 1.b action
£ This device presents an A class software
£ The EMC immunity test has been passed using 230 VAC and 0.5 A.
£ The Ball Pressure Test temperature is 167°F (75°C)
£ The SELV/PELV does not exceed 42 VDC
£ The maximum accessible voltage is 35 VDC.
£ All traveling cables permanently installed present an X type anchor.
£ All cables must be able to operate above 176°F (80°C)
£ This product is not repairable. If the device is physically malfunctioning or requires repair, it must be returned to Distech Controls.
£ Pollution Degree 2
£ Overvoltage Category II - 2.5 kV
